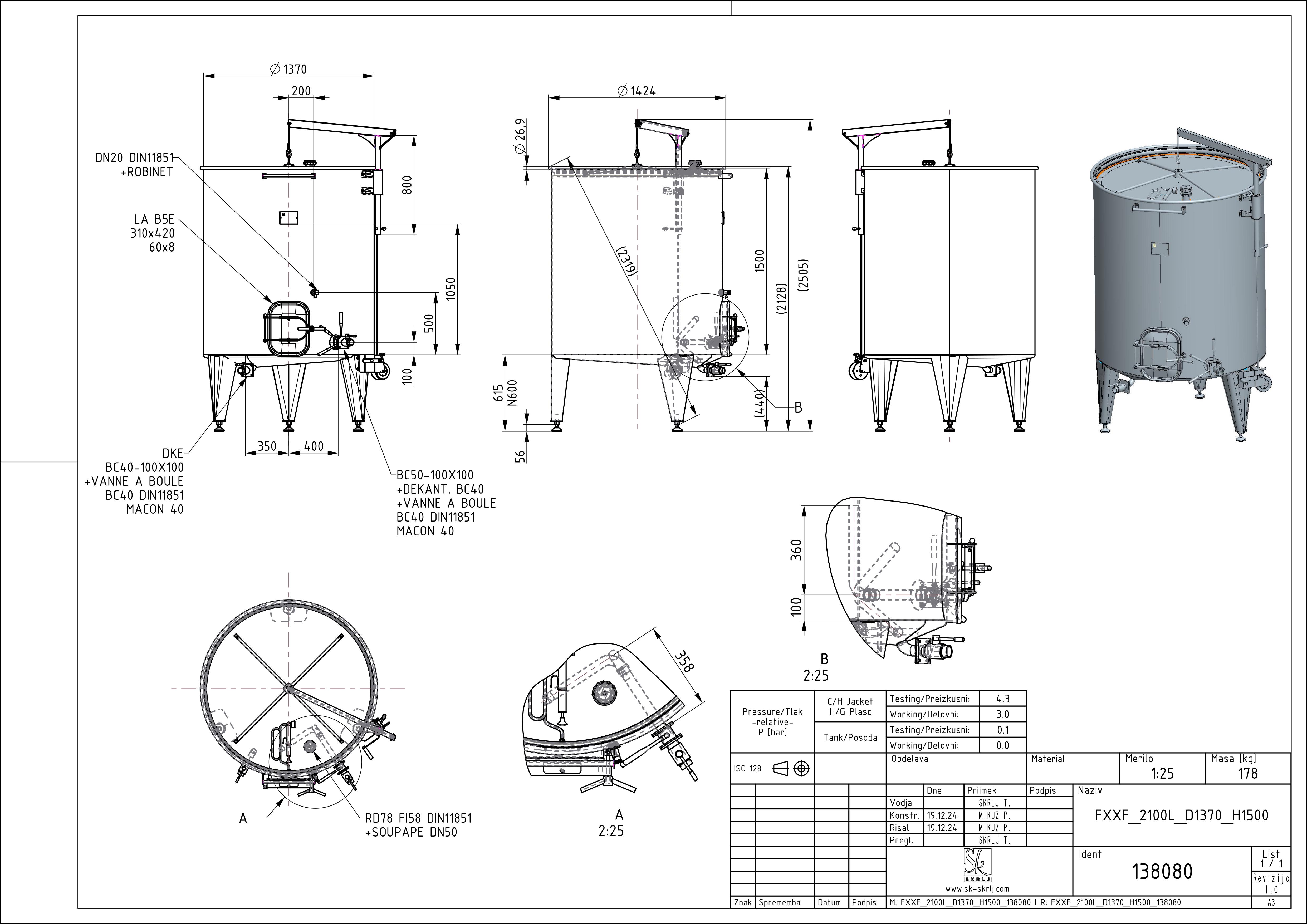

Storage tank with floating lid
FXXF 2100 D1370 H1500 0/ATM
Material: 138080
Nominal volume in L: 2100
Internal diameter in mm: 1370
Height H in mm: 1500
Height Z in mm: 2500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
