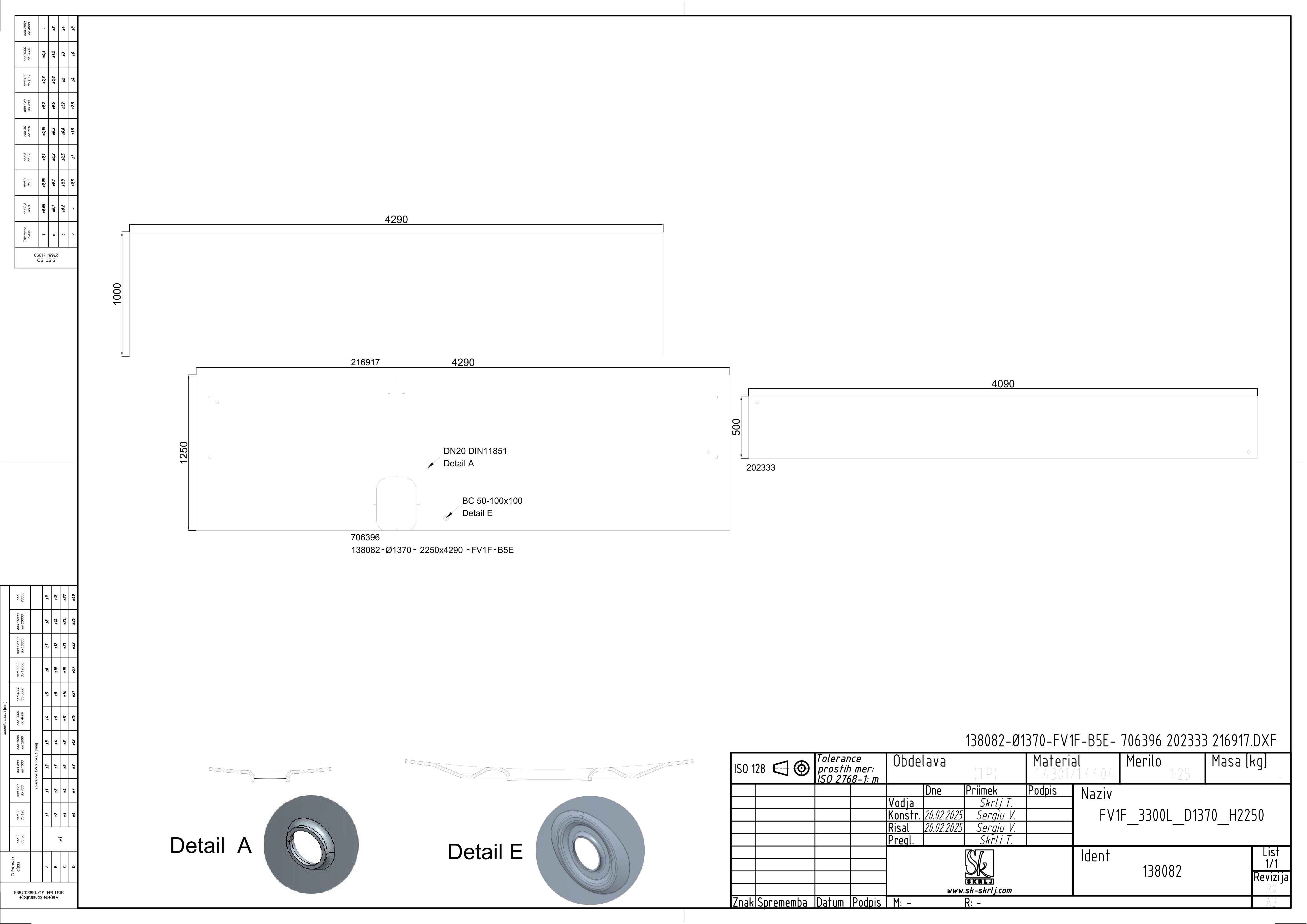

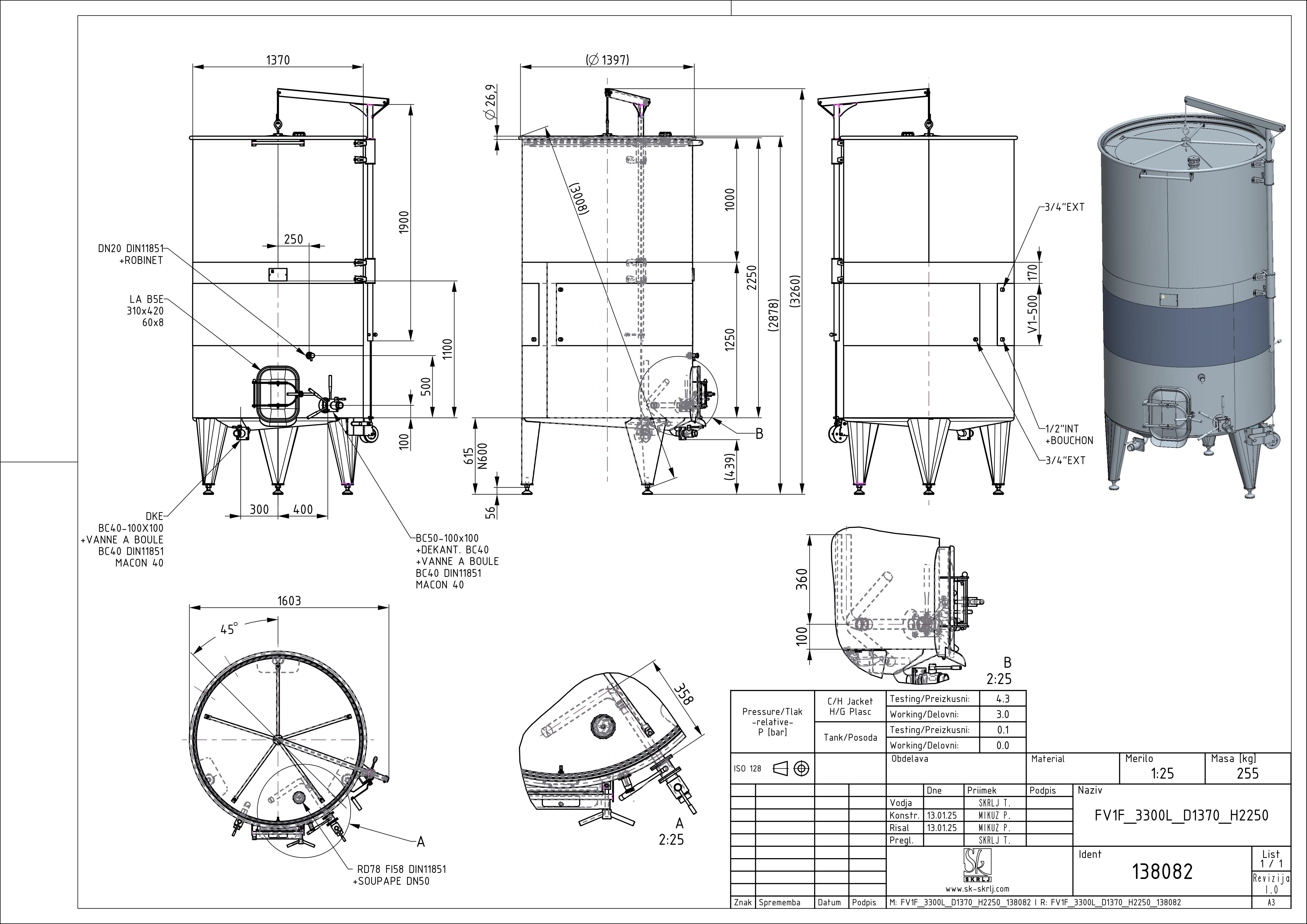

Storage tank with floating lid and double jacket
FV1F 3300 D1370 H2250 0/ATM
Material: 138082
Nominal volume in L: 3300
Internal diameter in mm: 1370
Height H in mm: 2250
Height Z in mm: 3250
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
