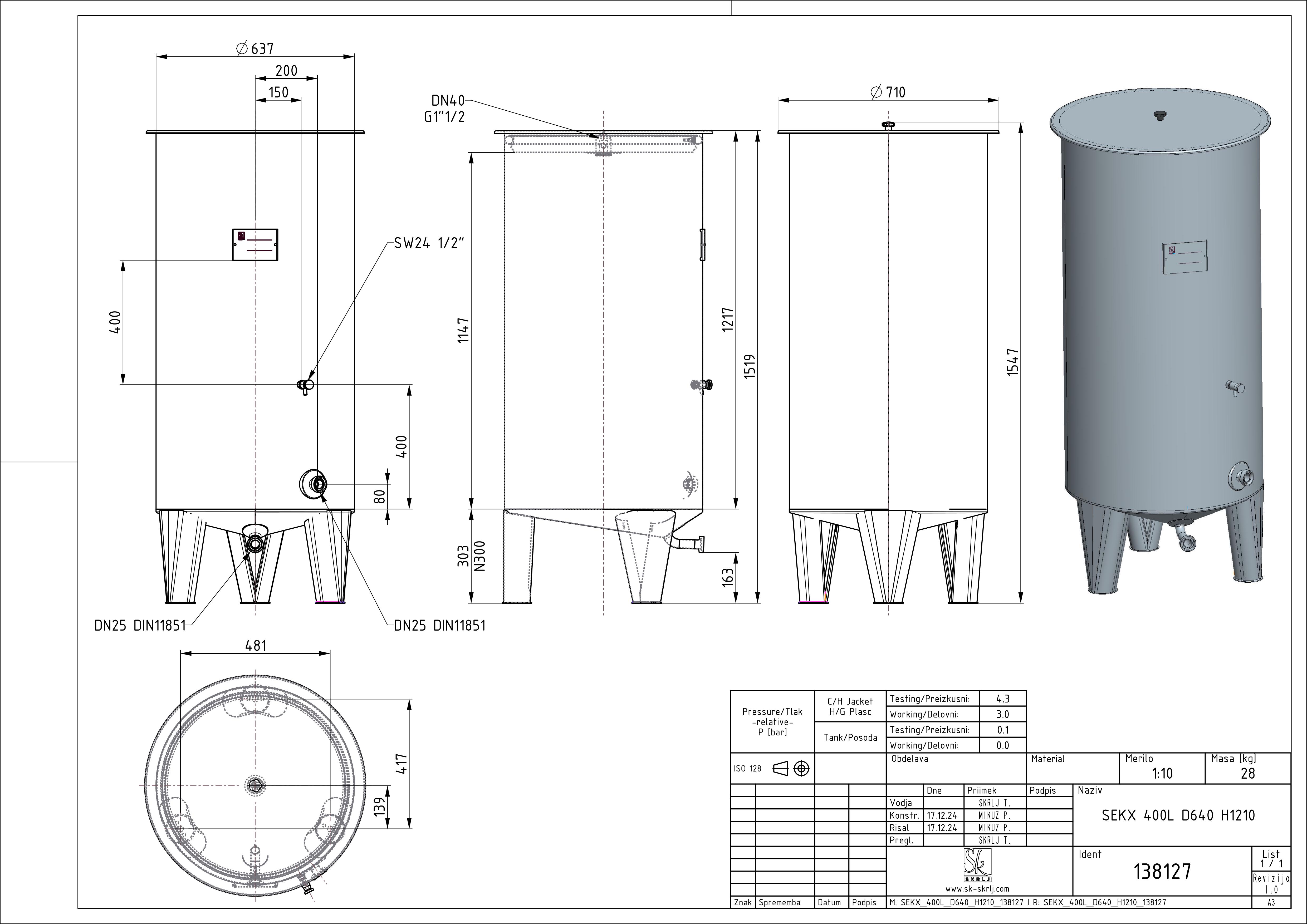

Storage tank with floating lid
SEKX 400 D640 H1210 0/ATM
Material: 138127
Nominal volume in L: 400
Geometrical volume [l]: 406
Internal diameter in mm: 640
Jacket height H in mm: 1210
Total height Z in mm: 1550
Type: Vertical tank - bottom KE - jacket E - lid VP
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
