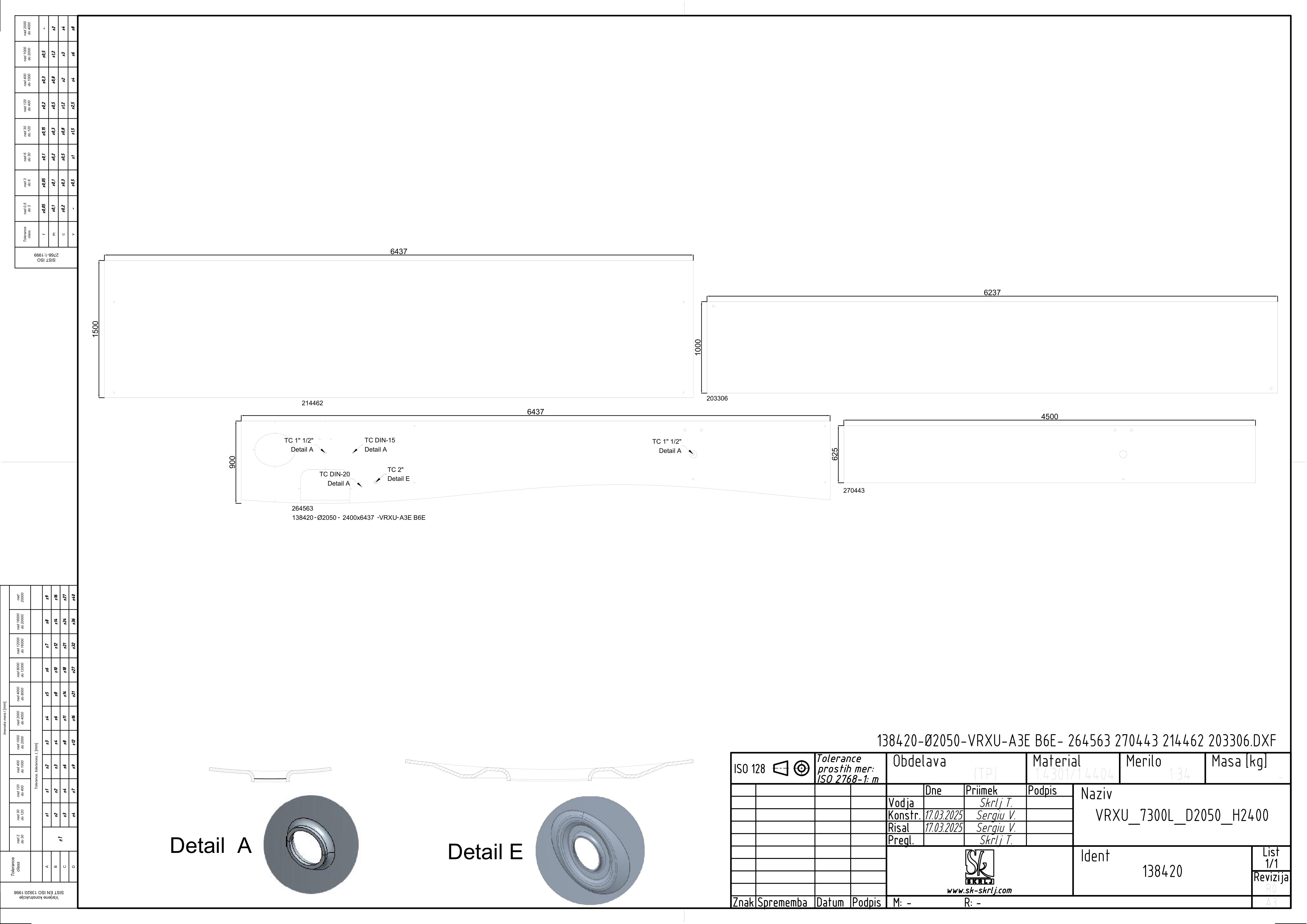

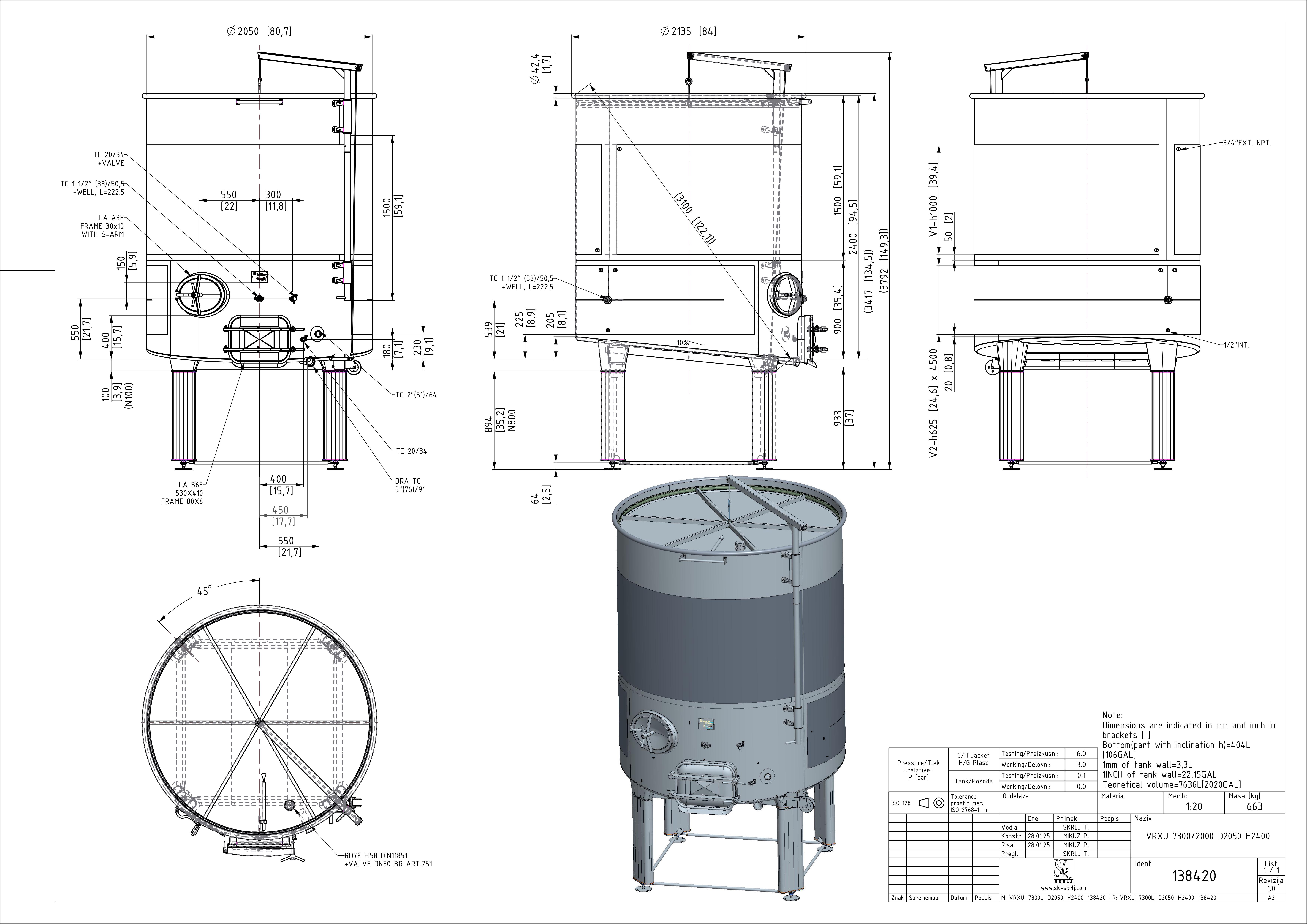

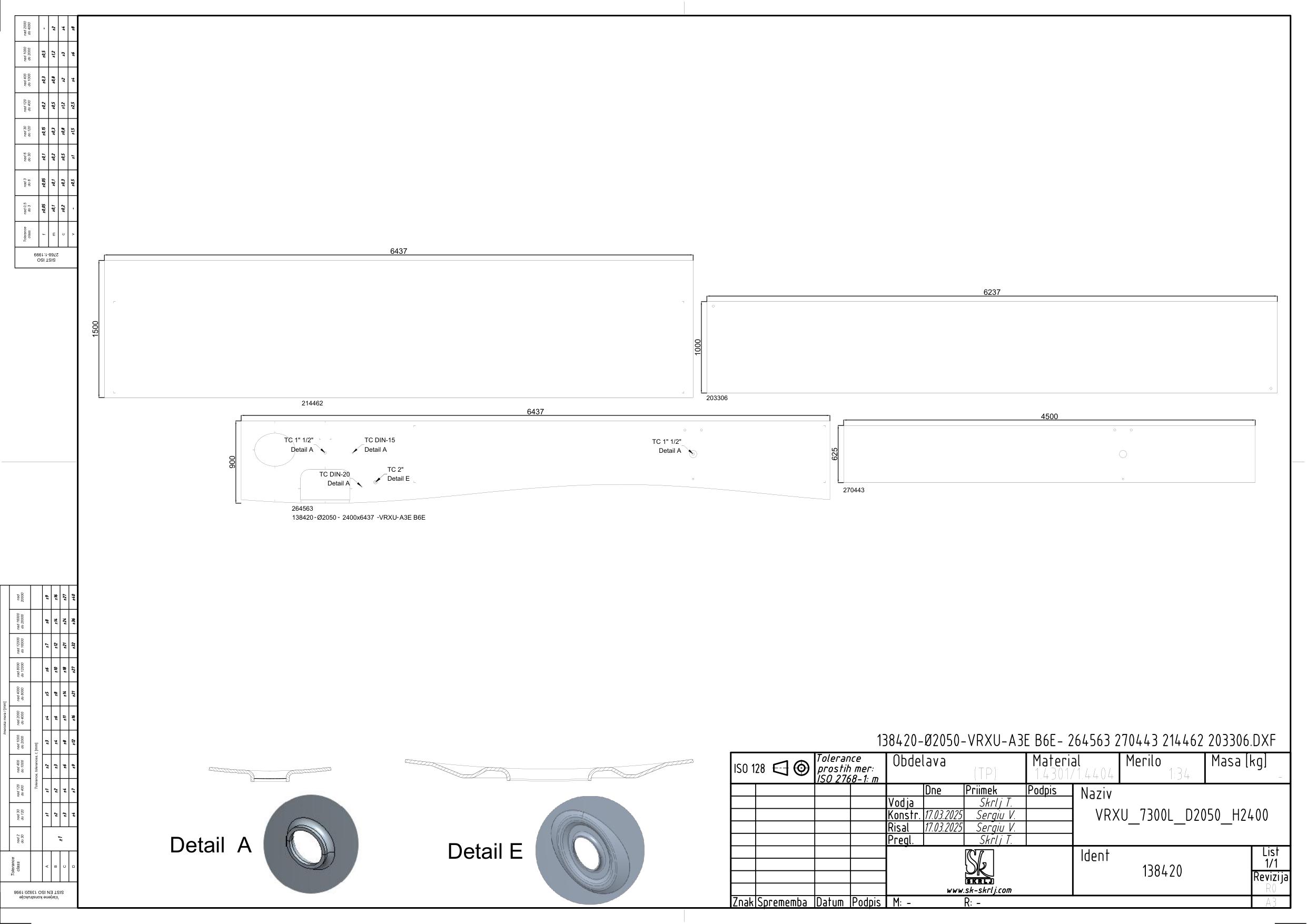

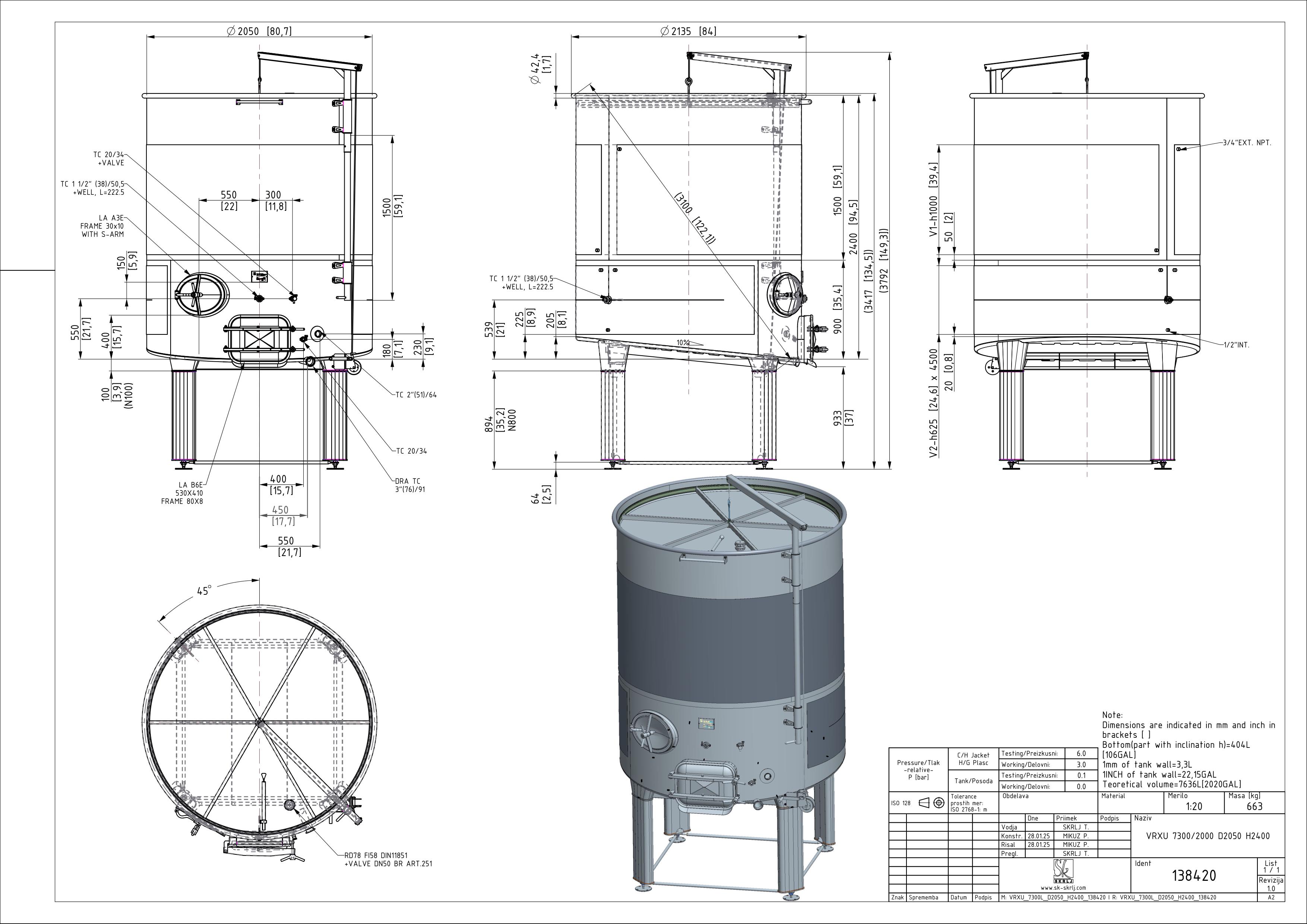

Variable capacity red wine tank
VRXU 7300/2000 D2050 H2400 0/ATM PR V2
Material: 138420
Customer project label: V2
Standard: PR
Nominal volume in L: 7300
Geometrical volume [l]: 7636
Nominal volume [US gal]: 2000
Geometrical volume [US gal]: 2020
Internal diameter in mm: 2050
Height H in mm: 2400
Height Z in mm: 3795
Internal diameter [in]: 80,7
Height H [in]: 94,5
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
