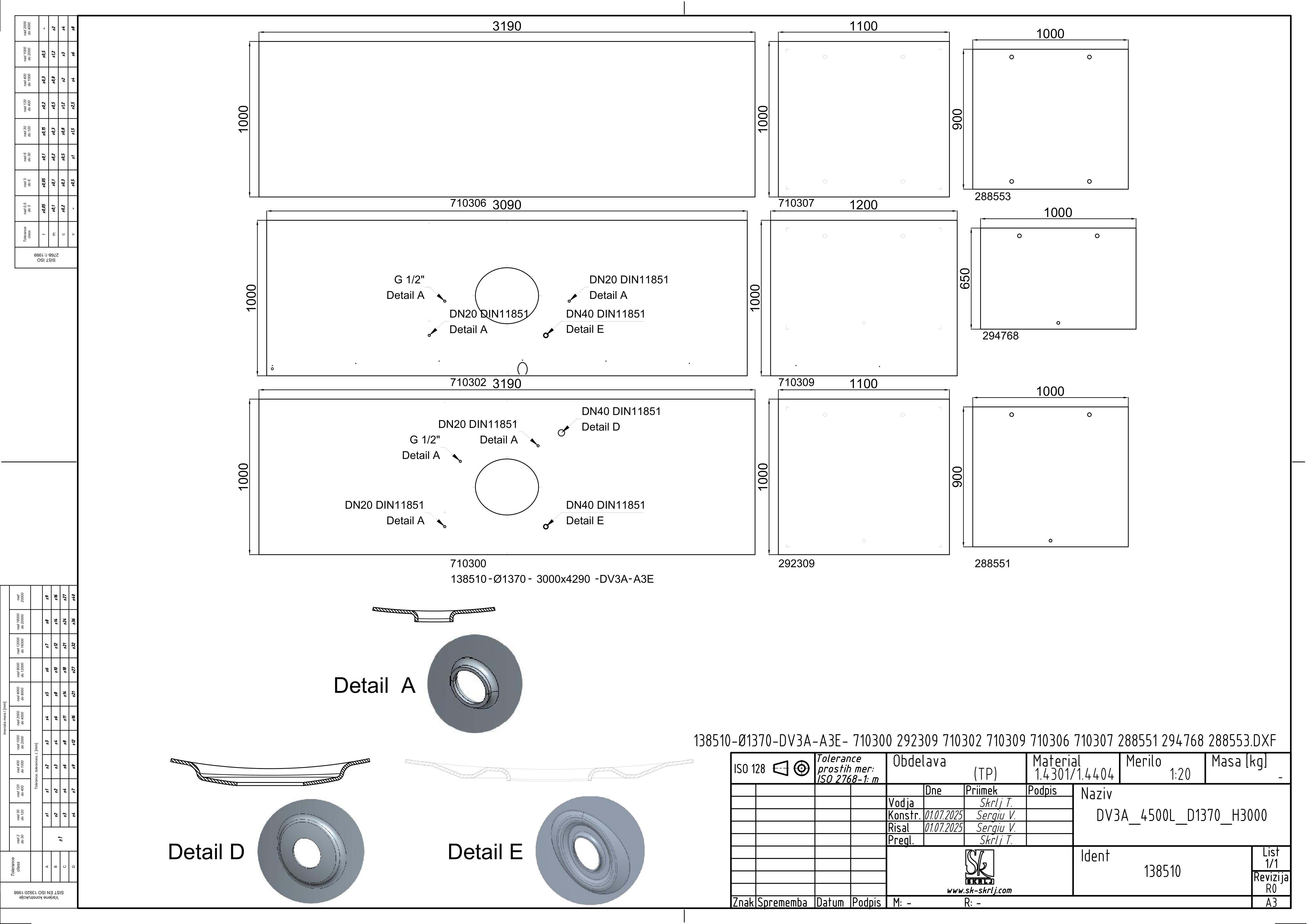

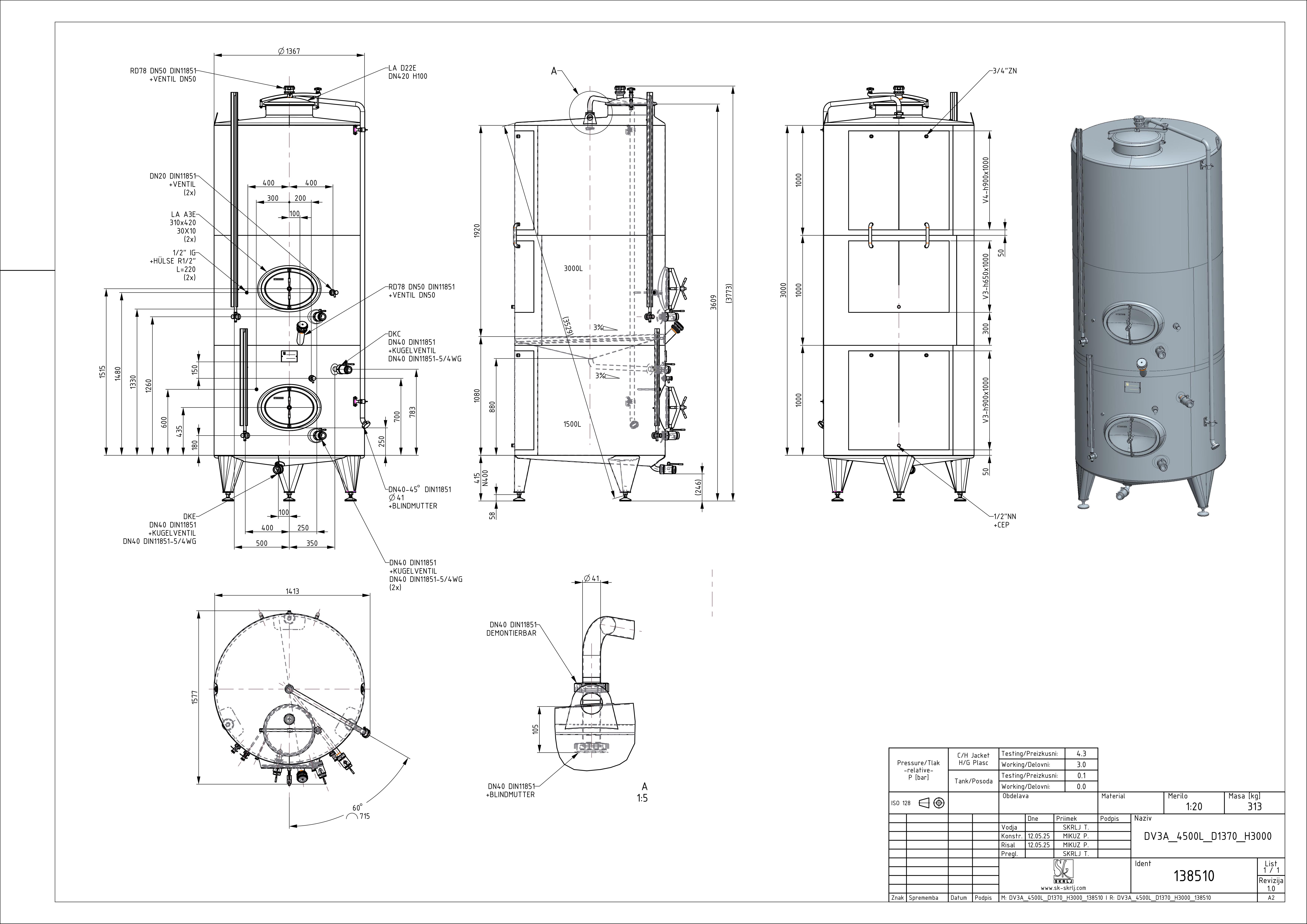

Storage tank with intermediate bottom and double jacket
DV3A 4500 D1370 H3000 0/ATM
Material: 138510
Nominal volume in L: 4500
Geometrical volume [l]: 4575
Volume below [l]: 1500
Volume above [l]: 3000
Internal diameter in mm: 1370
Jacket height H in mm: 3000
Total height Z in mm: 3850
Type: Vertical tank - bottom KE - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
