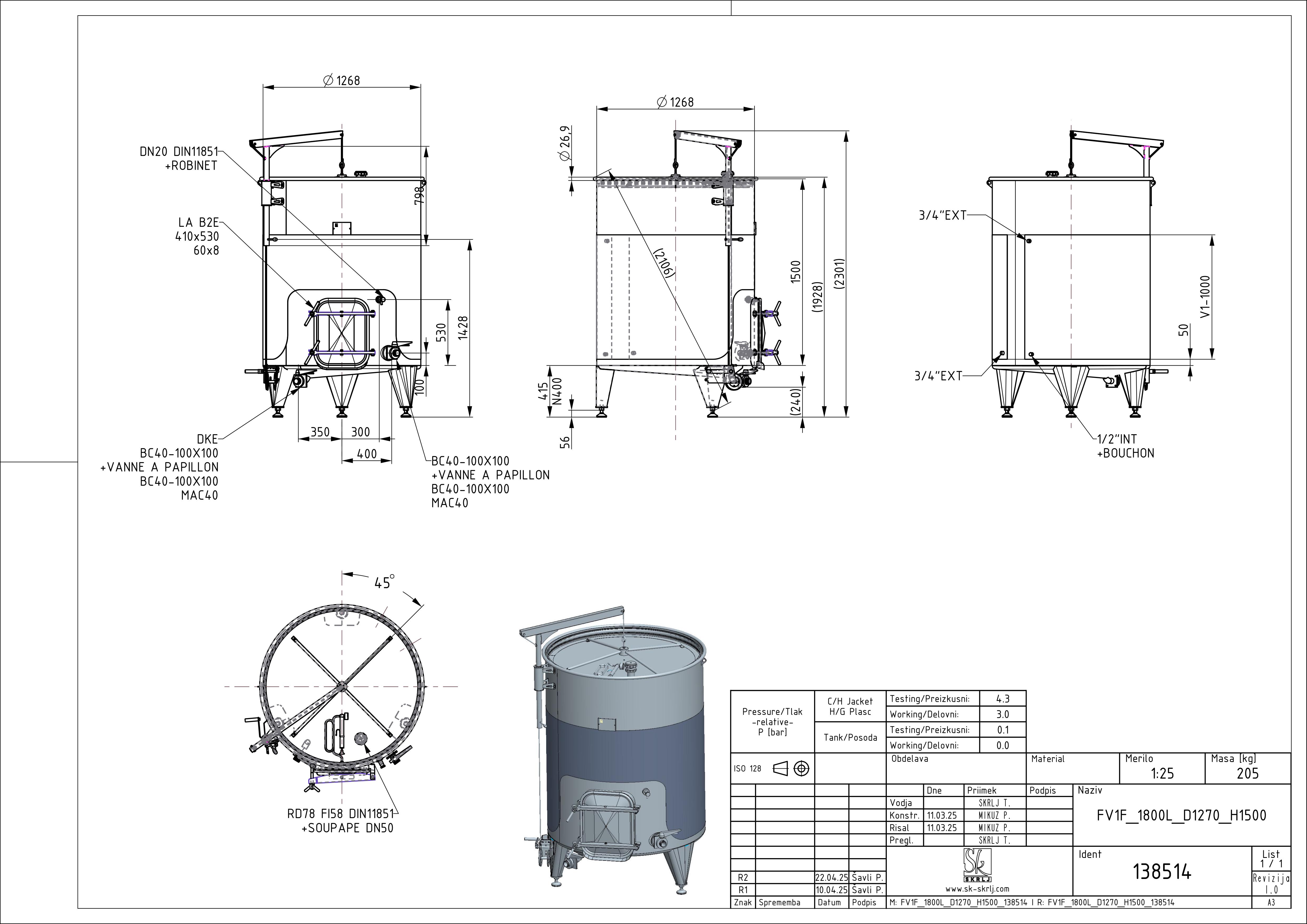

Storage tank with floating lid and double jacket
FV1F 1800 D1270 H1500 0/ATM
Material: 138514
Nominal volume in L: 1800
Internal diameter in mm: 1270
Height H in mm: 1500
Height Z in mm: 2300
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
