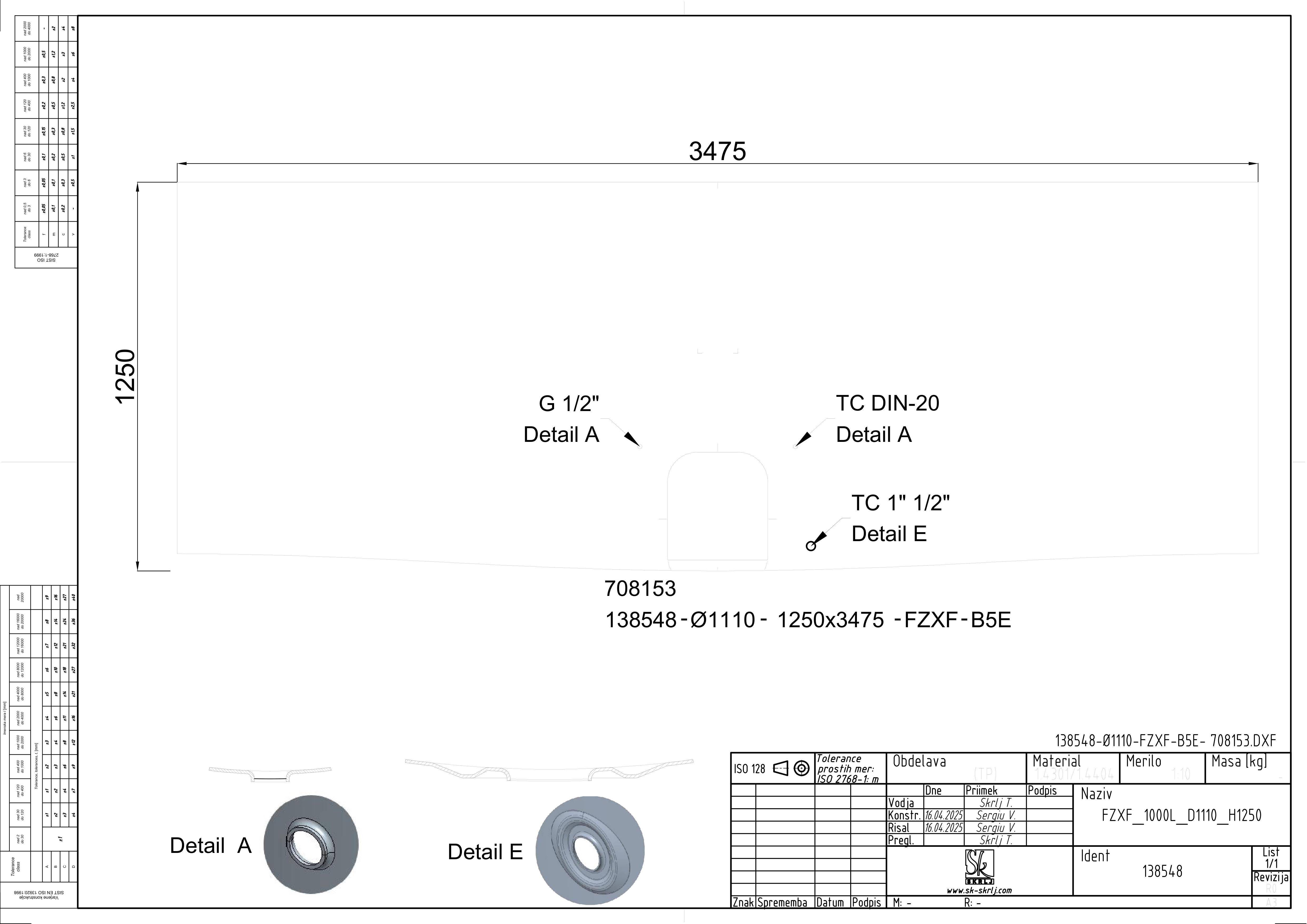

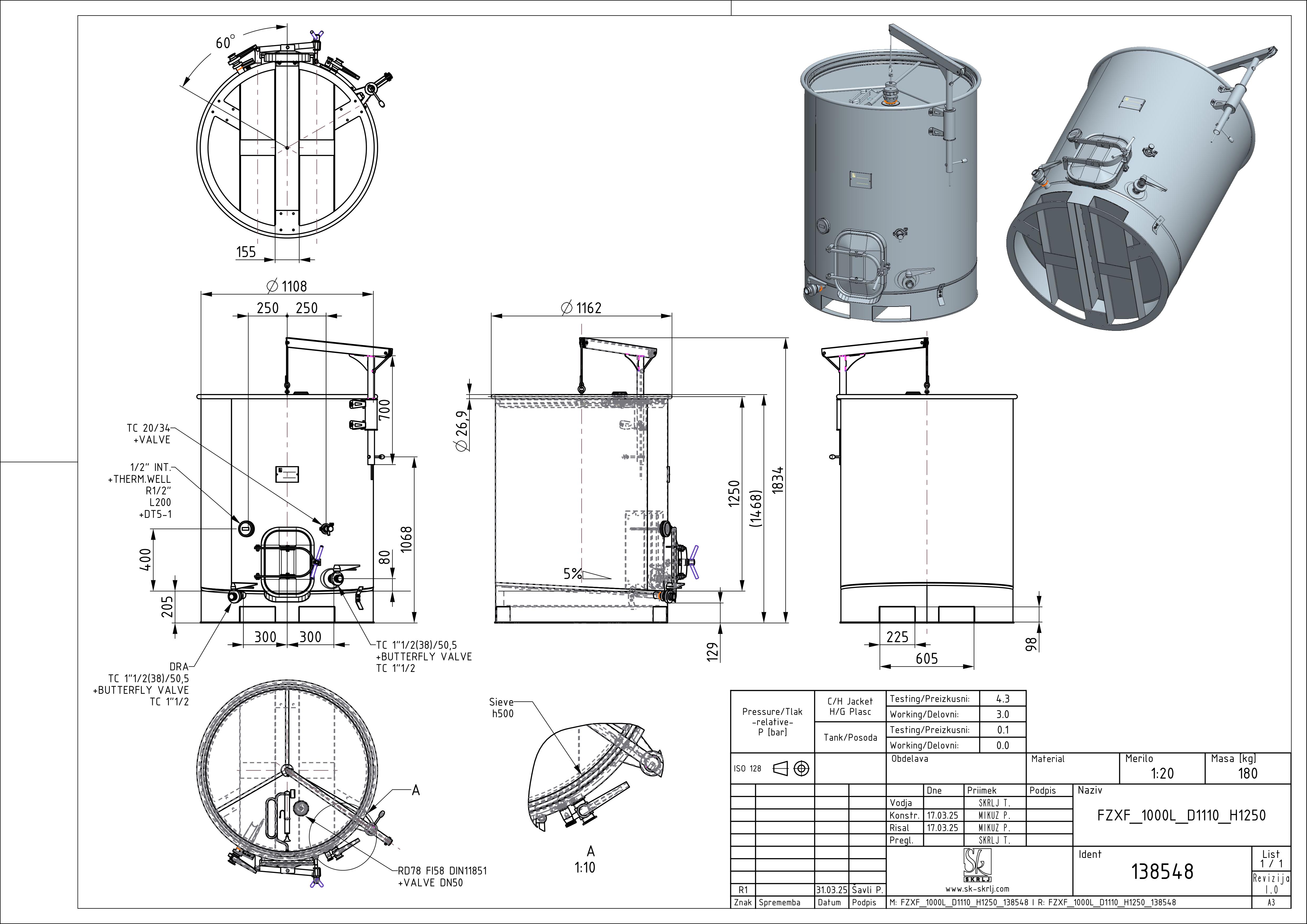

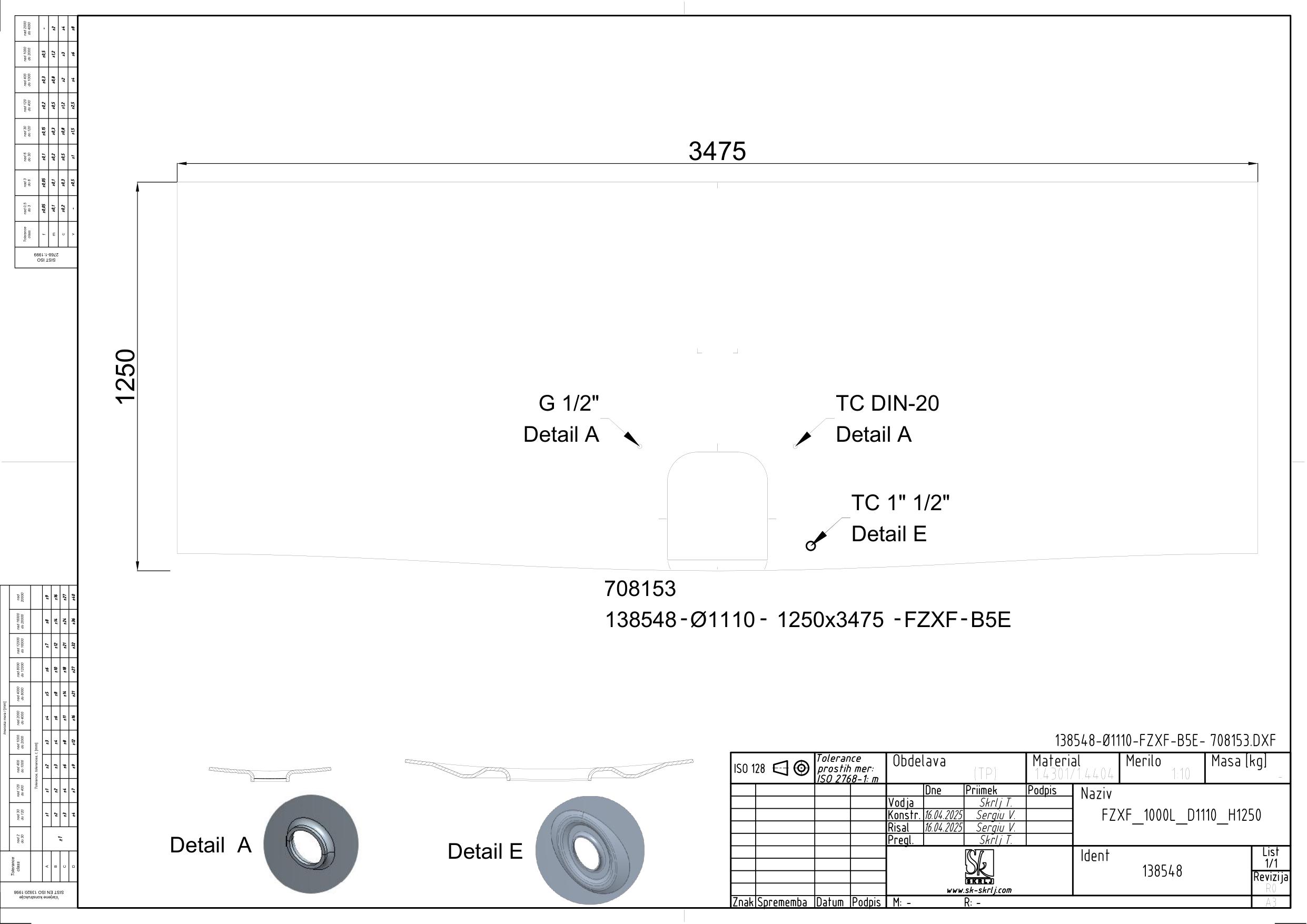

Open top tank
FZXX 1000 D1110 H1250 0/ATM
Material: 138548
Nominal volume in L: 1000
Geometrical volume [l]: 1198
Internal diameter in mm: 1110
Height H in mm: 1250
Height Z in mm: 2150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
