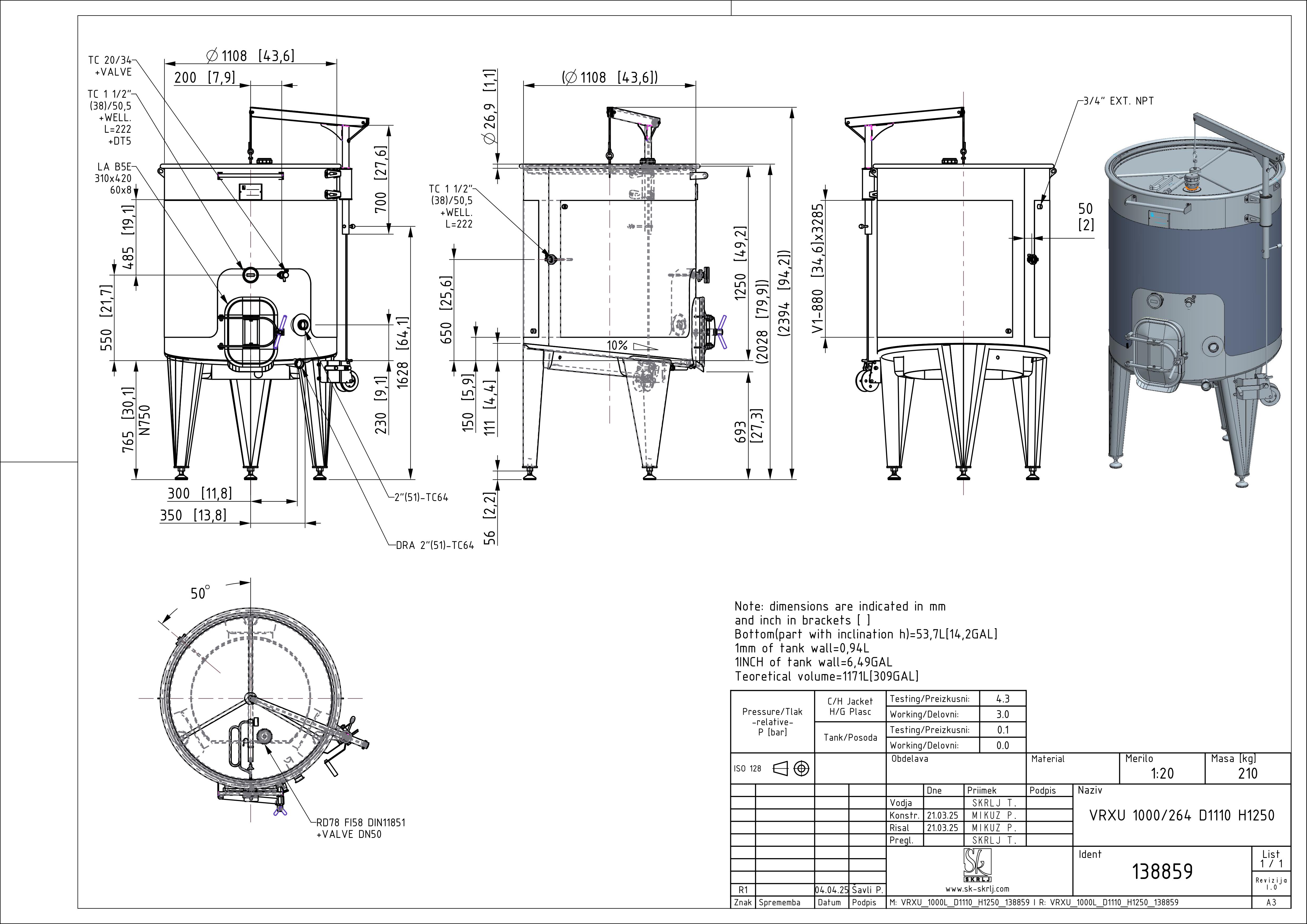

Variable capacity red wine tank
VRXU 1000/264 D1110 H1250 0/ATM V2
Material: 138859
Customer project label: V2
Nominal volume in L: 1000
Geometrical volume [l]: 1171
Nominal volume [US gal]: 264
Geometrical volume [US gal]: 309
Internal diameter in mm: 1110
Jacket height H in mm: 1250
Total height Z in mm: 2394
Internal diameter [in]: 43
Height H [in]: 49
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
