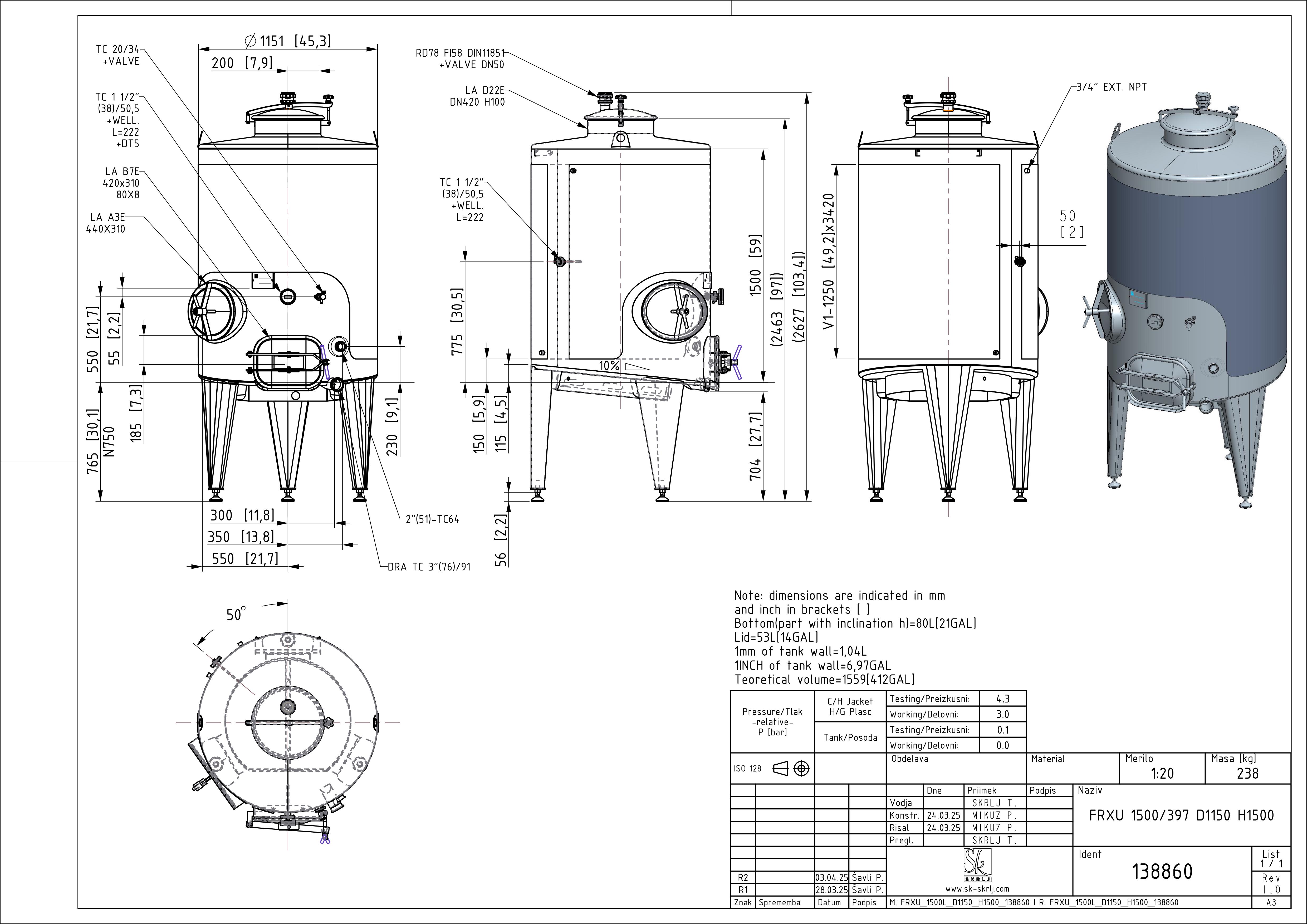

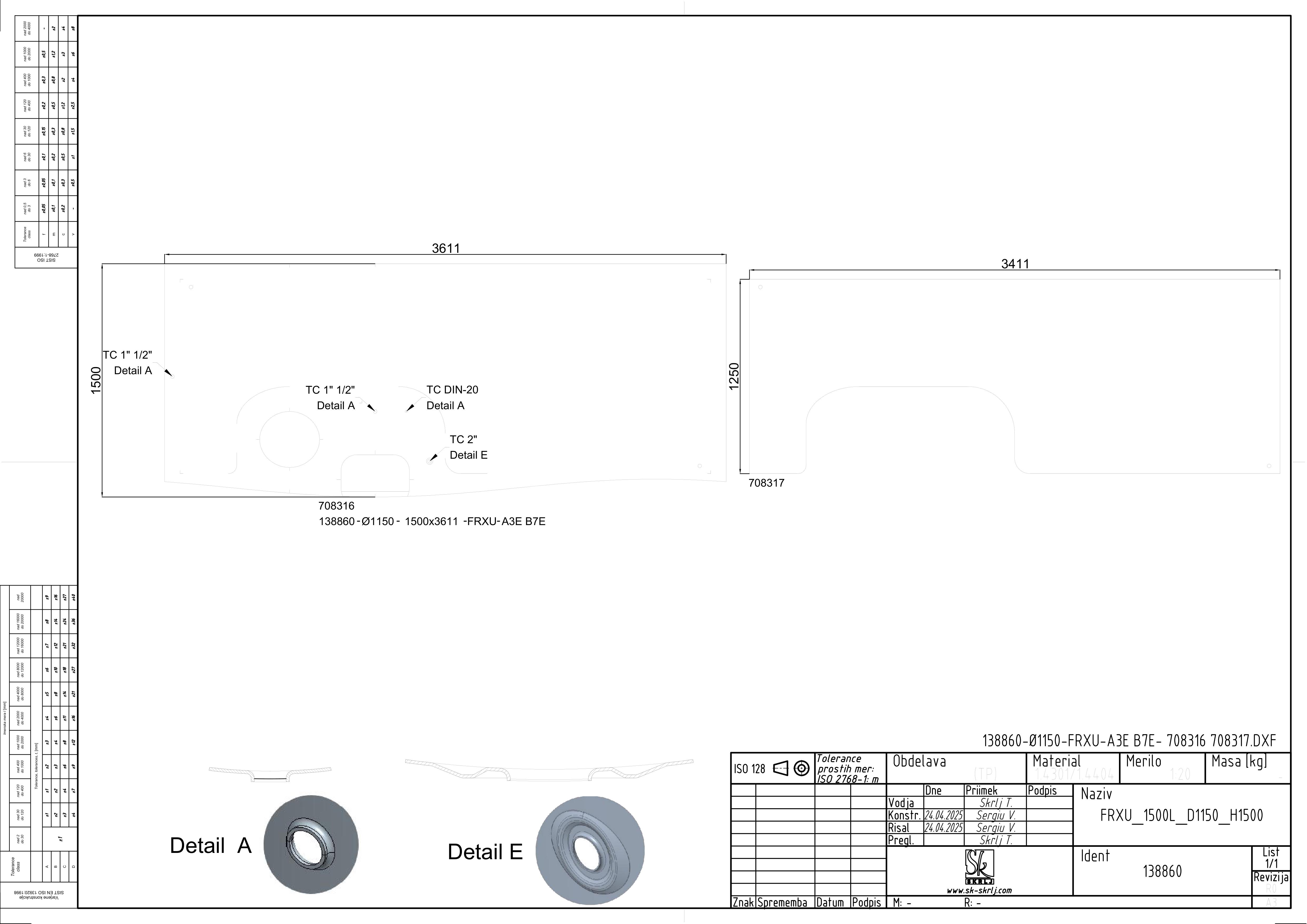

Fixed capacity red wine tank
FRXU 1500/397 D1150 H1500 0/ATM V2
Material: 138860
Customer project label: V2
Nominal volume in L: 1500
Geometrical volume [l]: 1559
Nominal volume [US gal]: 397
Geometrical volume [US gal]: 412
Internal diameter in mm: 1150
Jacket height H in mm: 1500
Total height Z in mm: 2627
Internal diameter [in]: 45,3
Height H [in]: 59
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
