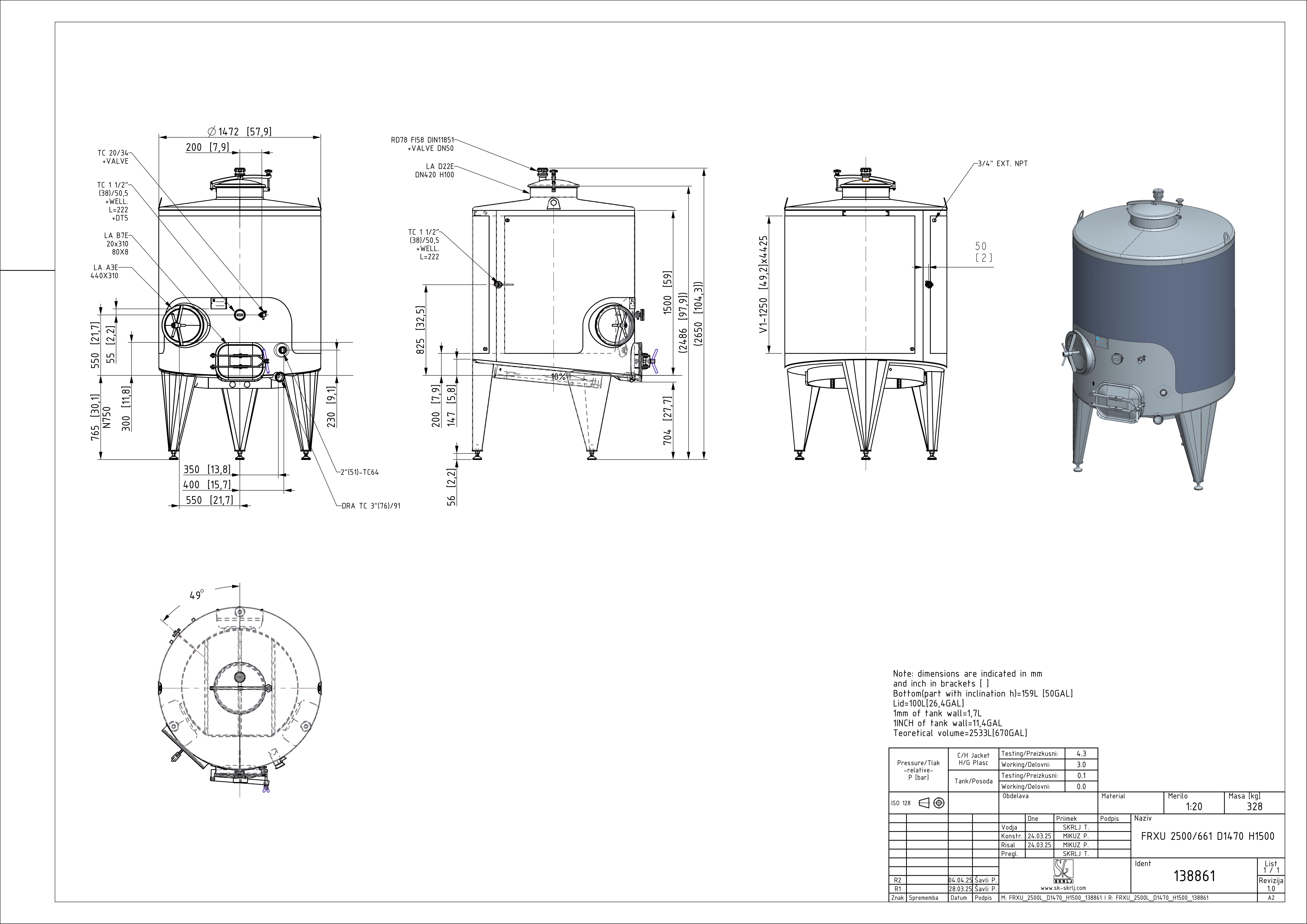

Fixed capacity red wine tank
FRXU 2500/661 D1470 H1500 0/ATM V2
Material: 138861
Customer project label: V2
Nominal volume in L: 2500
Geometrical volume [l]: 2533
Nominal volume [US gal]: 661
Geometrical volume [US gal]: 670
Internal diameter in mm: 1470
Jacket height H in mm: 1500
Total height Z in mm: 2650
Internal diameter [in]: 57
Height H [in]: 59
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
