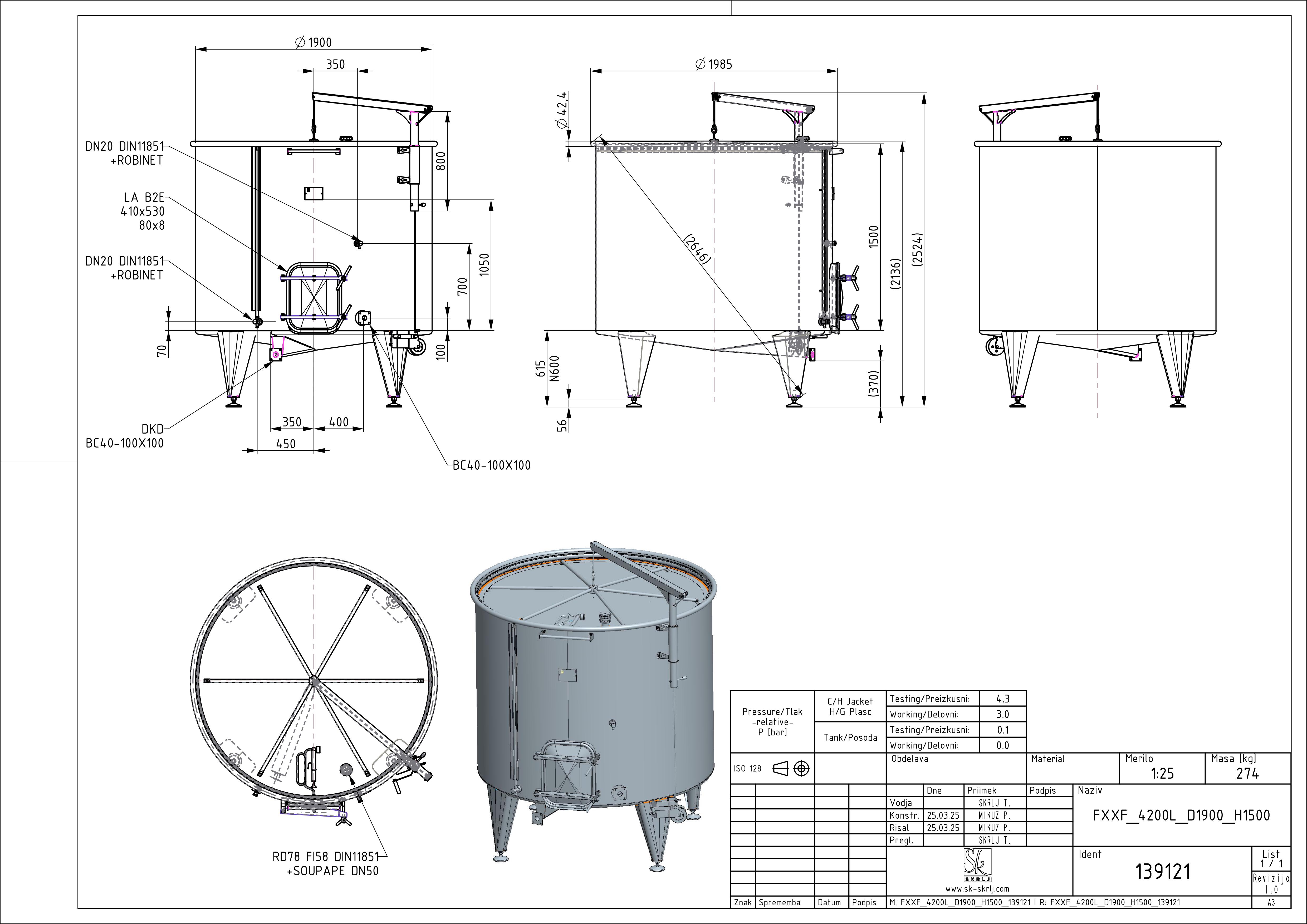

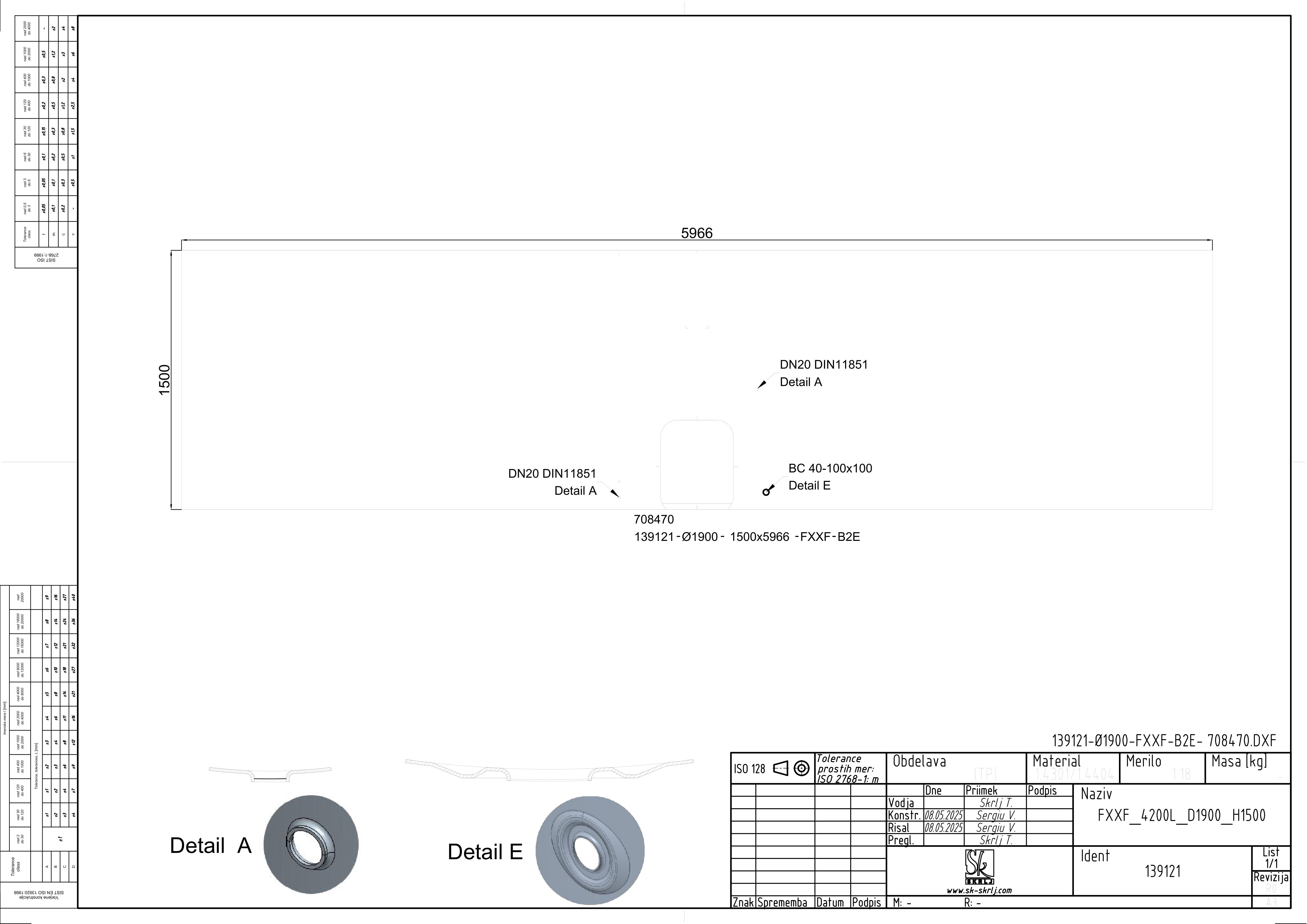

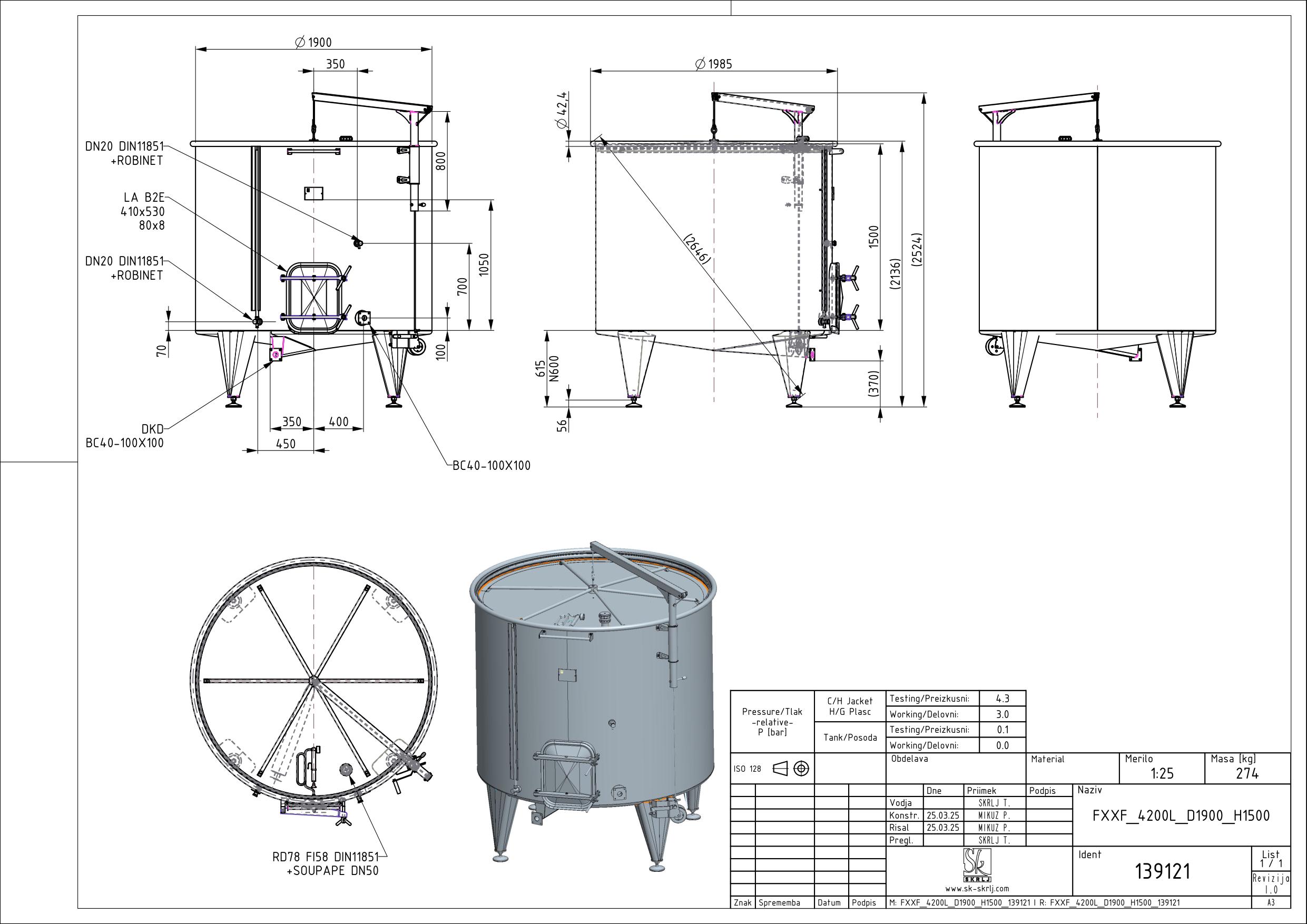

Storage tank with floating lid
FXXF 4200 D1900 H1500 0/ATM
Material: 139121
Nominal volume in L: 4200
Internal diameter in mm: 1900
Height H in mm: 1500
Height Z in mm: 2500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
