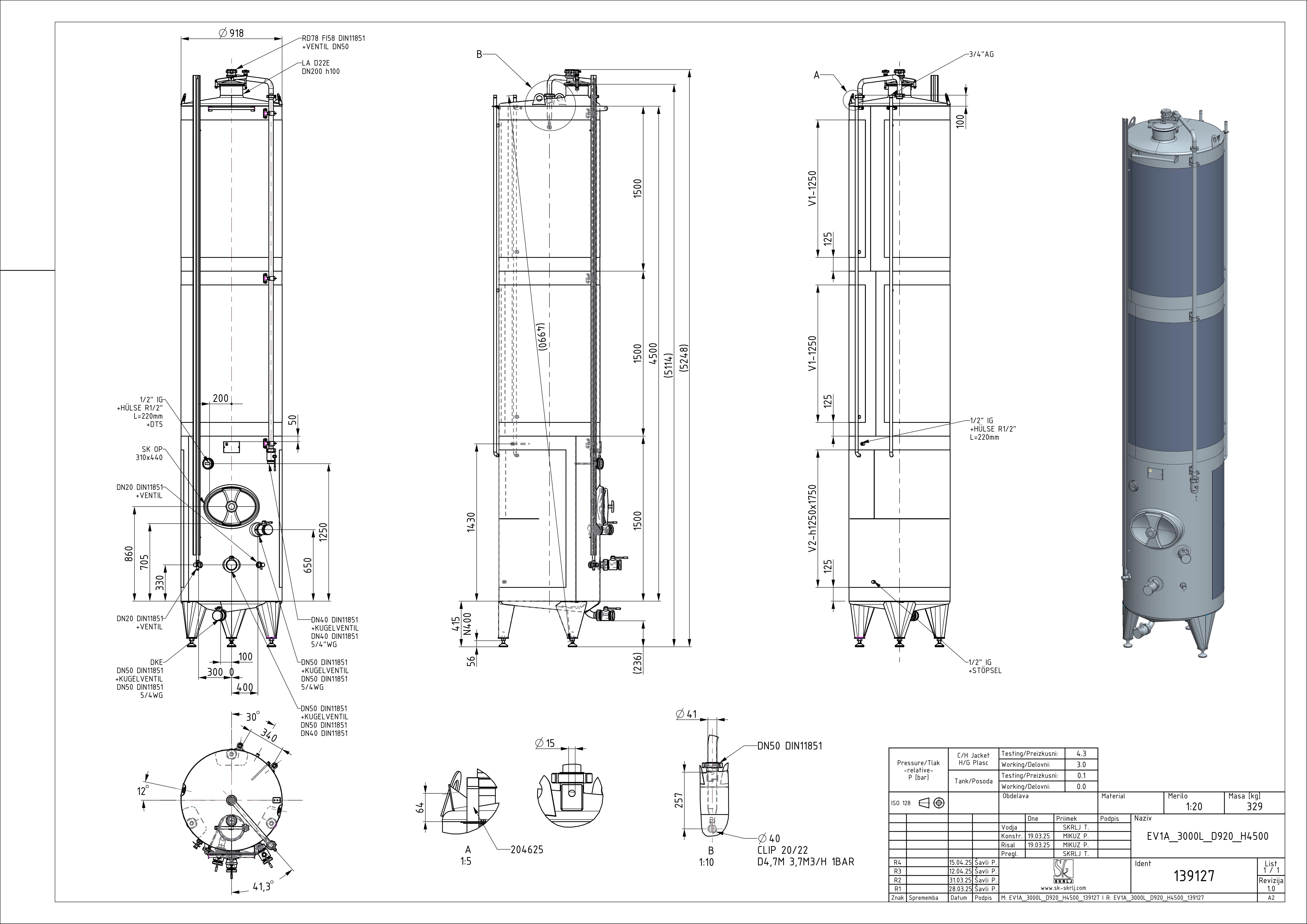

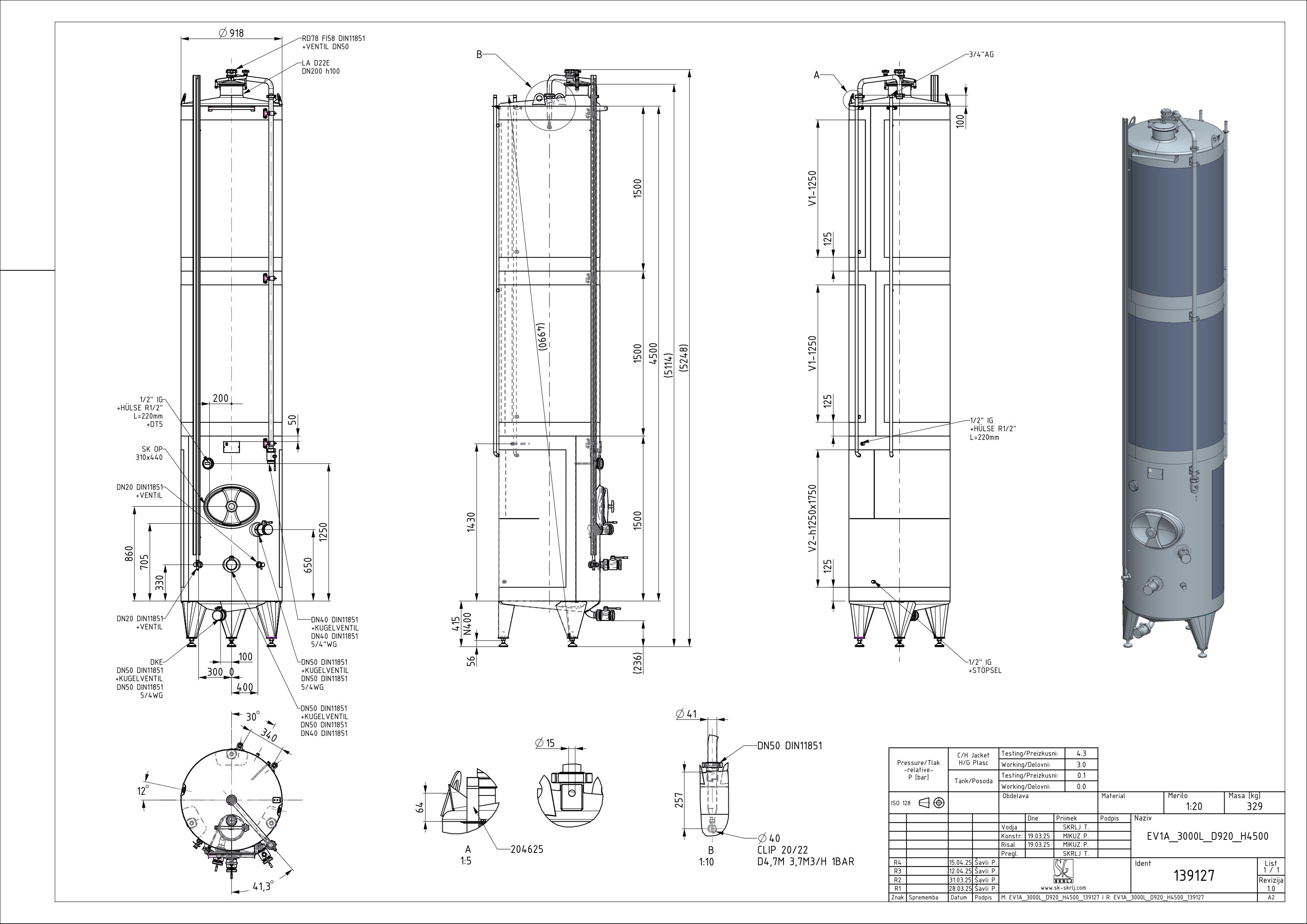

Classic storage tank with double jacket
EV1A 3000 D920 H4500 0/ATM
Material: 139127
Nominal volume in L: 3000
Geometrical volume [l]: 3059
Internal diameter in mm: 920
Height H in mm: 4500
Height Z in mm: 5400
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
