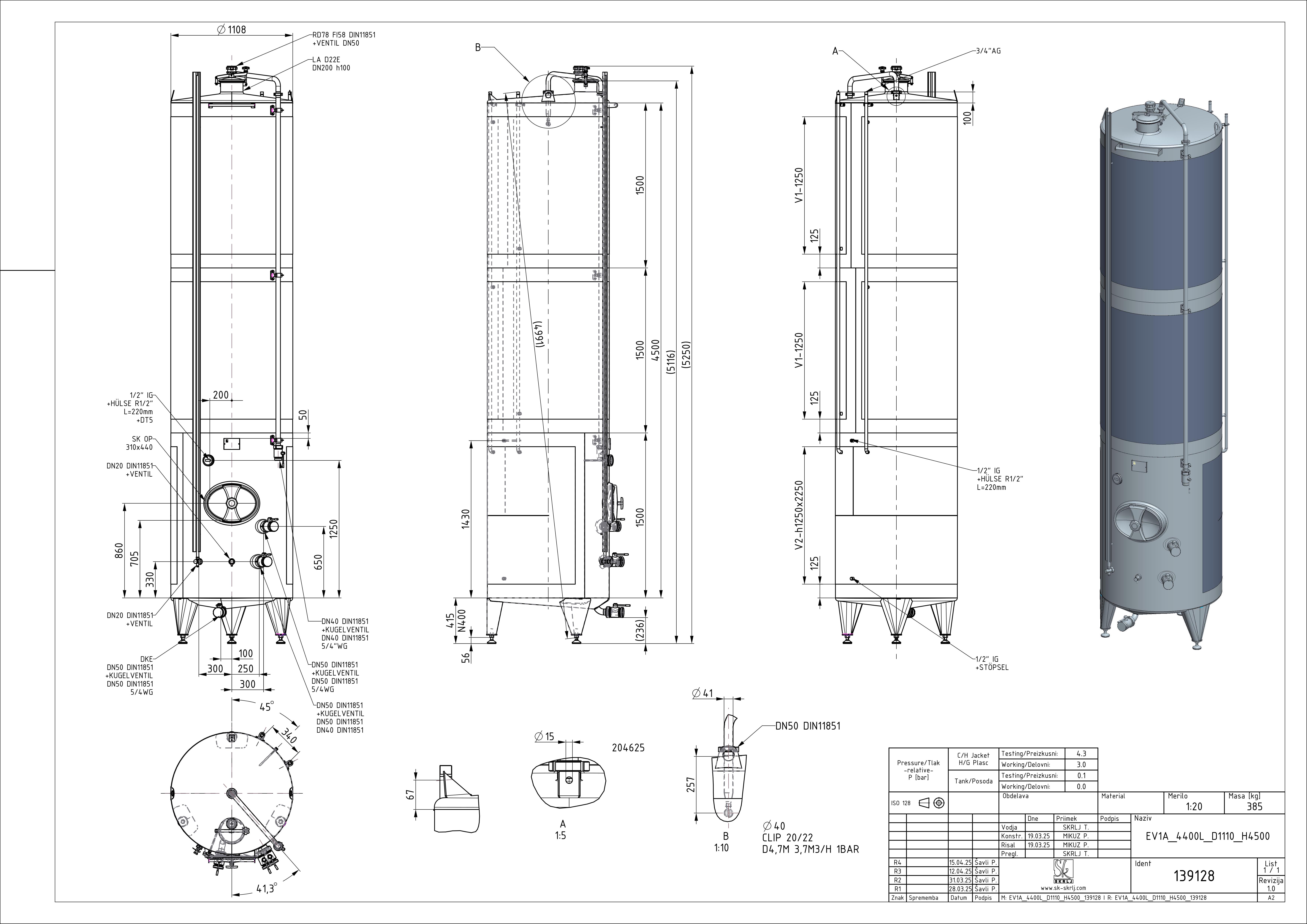

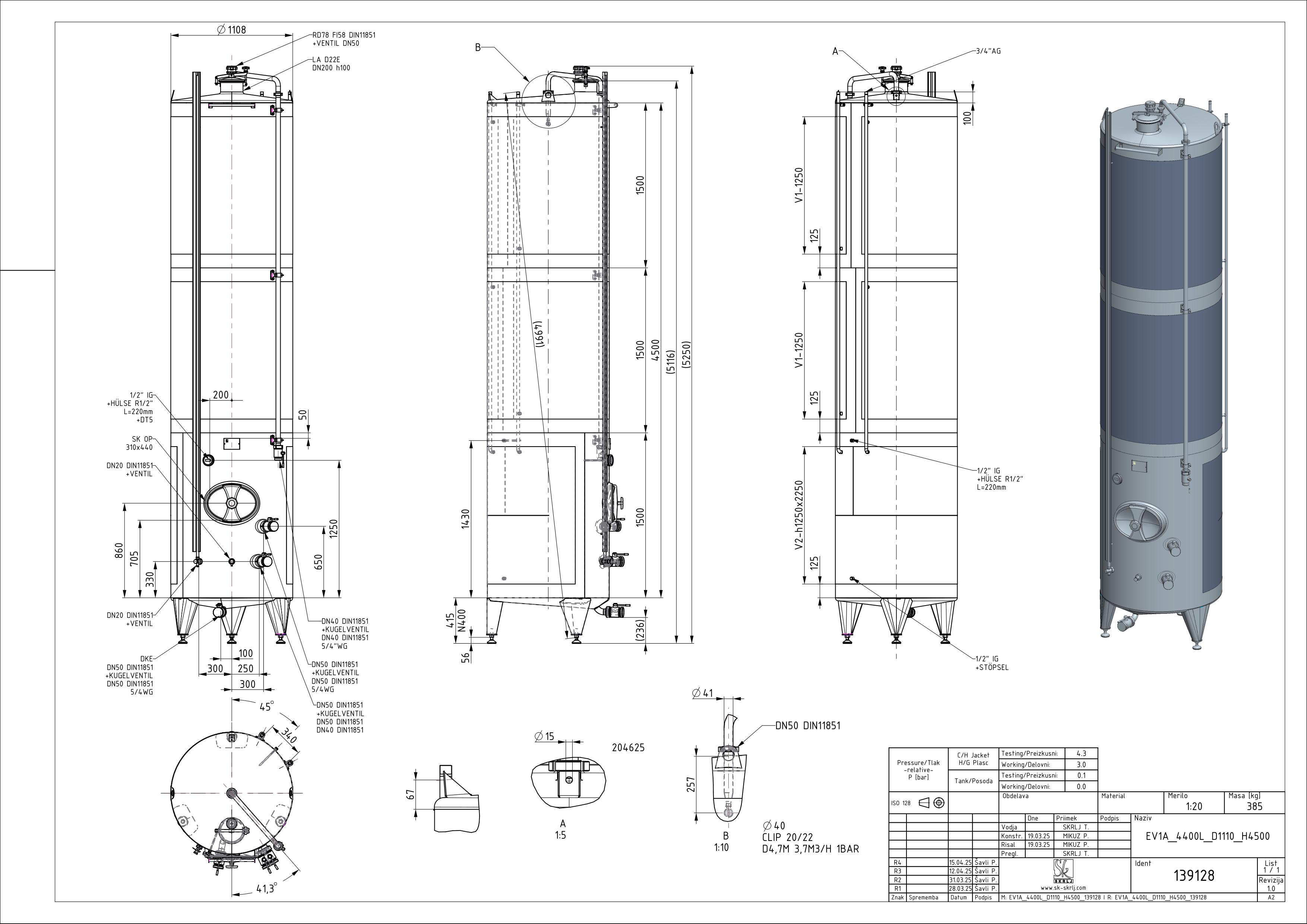

Classic storage tank with double jacket
EV1A 4400 D1110 H4500 0/ATM
Material: 139128
Nominal volume in L: 4400
Geometrical volume [l]: 4452
Internal diameter in mm: 1110
Height H in mm: 4500
Height Z in mm: 5400
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
