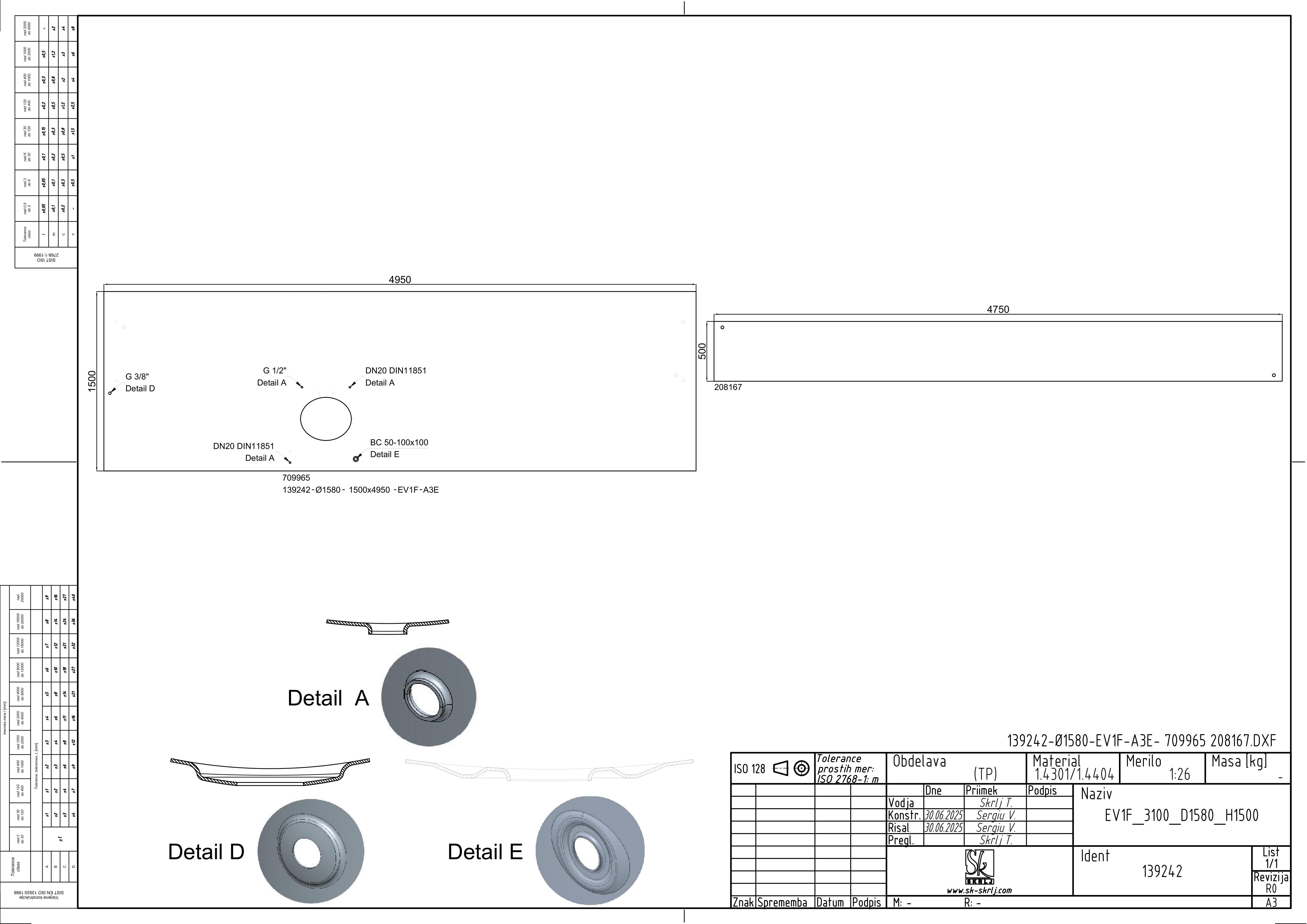

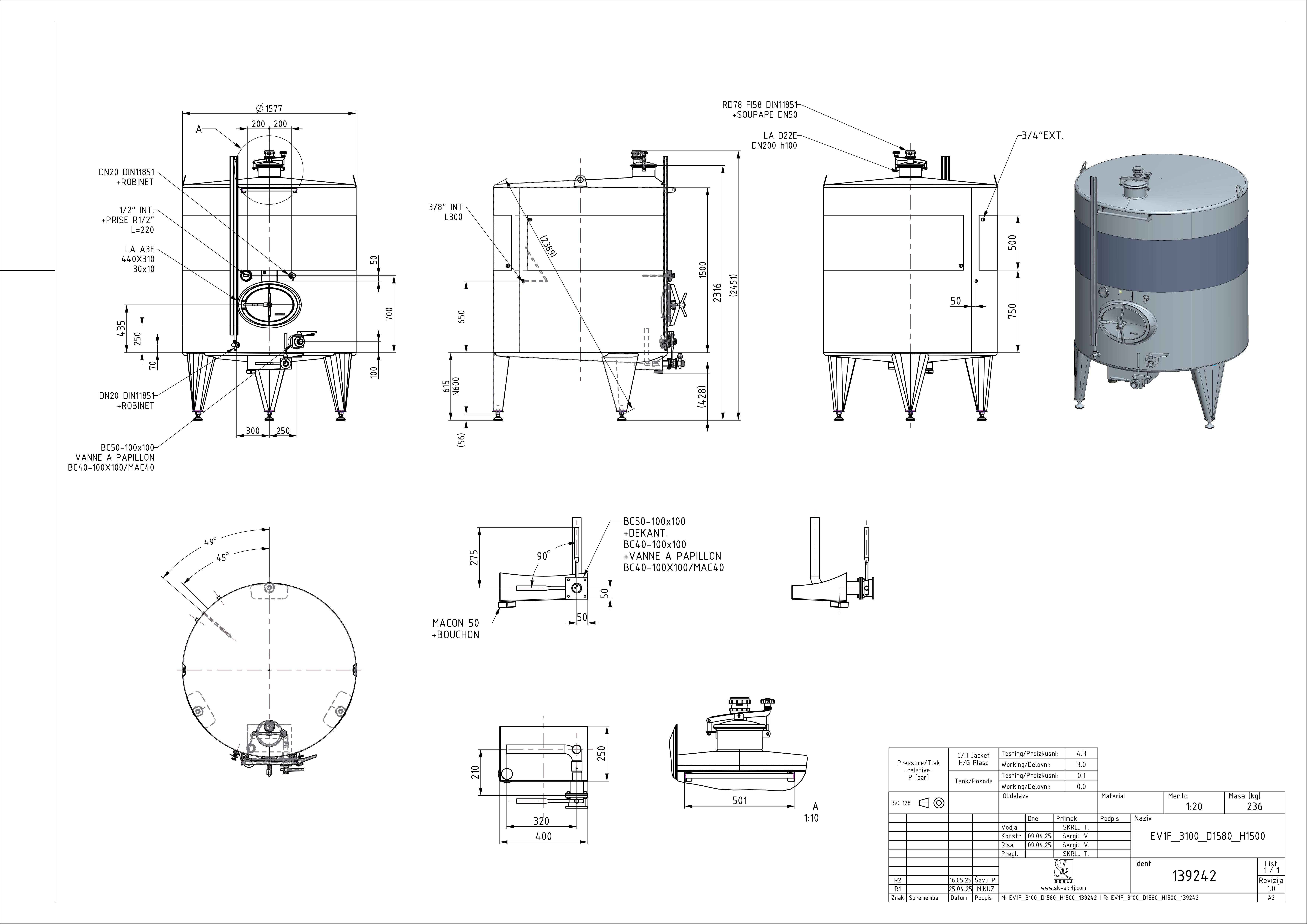

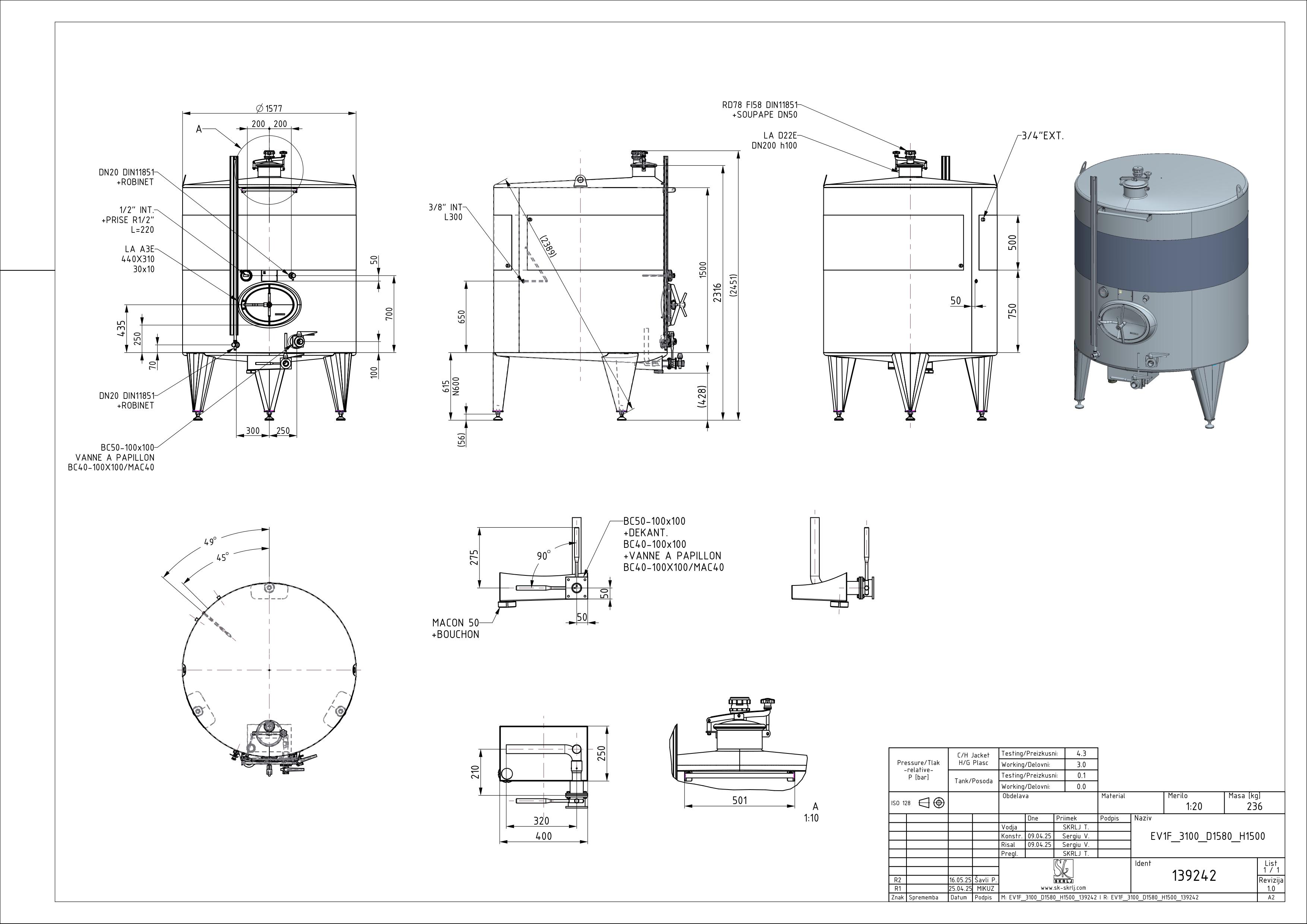

Classic storage tank with double jacket
EV1F 3100 D1580 H1500 0/ATM
Material: 139242
Nominal volume in L: 3100
Geometrical volume [l]: 3144
Internal diameter in mm: 1580
Jacket height H in mm: 1500
Total height Z in mm: 2350
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
