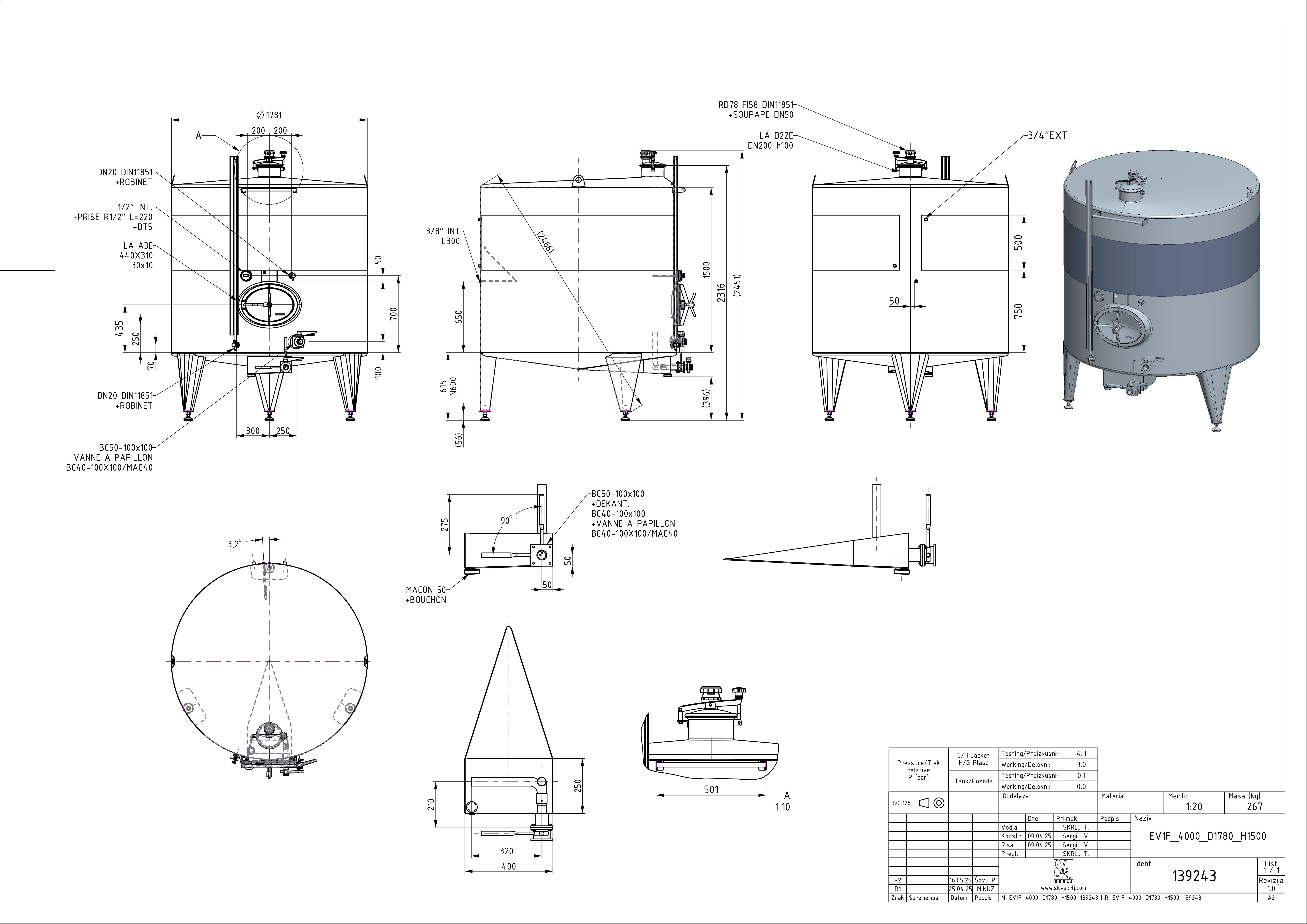

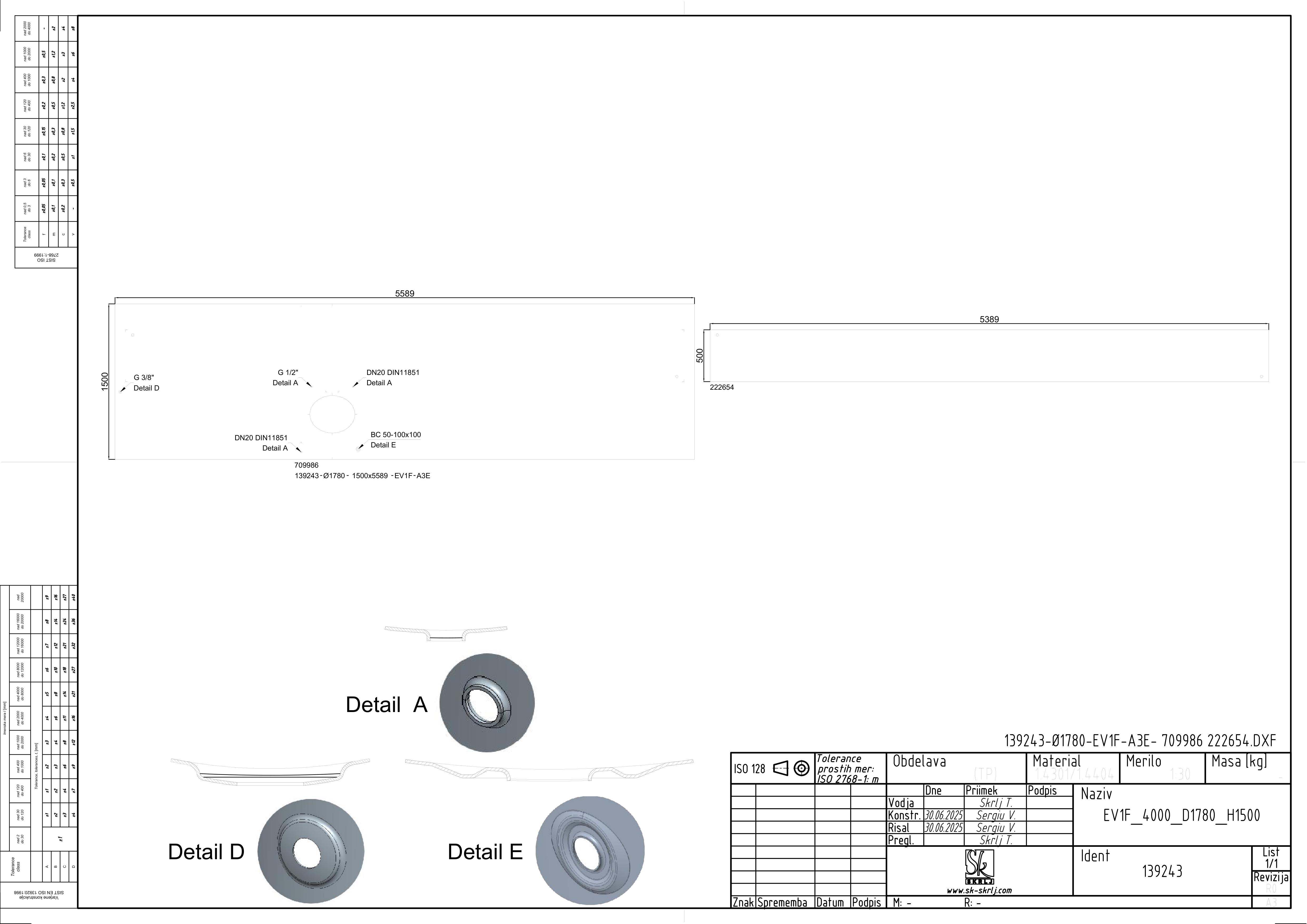

Classic storage tank with double jacket
EV1F 4000 D1780 H1500 0/ATM
Material: 139243
Nominal volume in L: 4000
Geometrical volume [l]: 4028
Internal diameter in mm: 1780
Jacket height H in mm: 1500
Total height Z in mm: 2350
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
