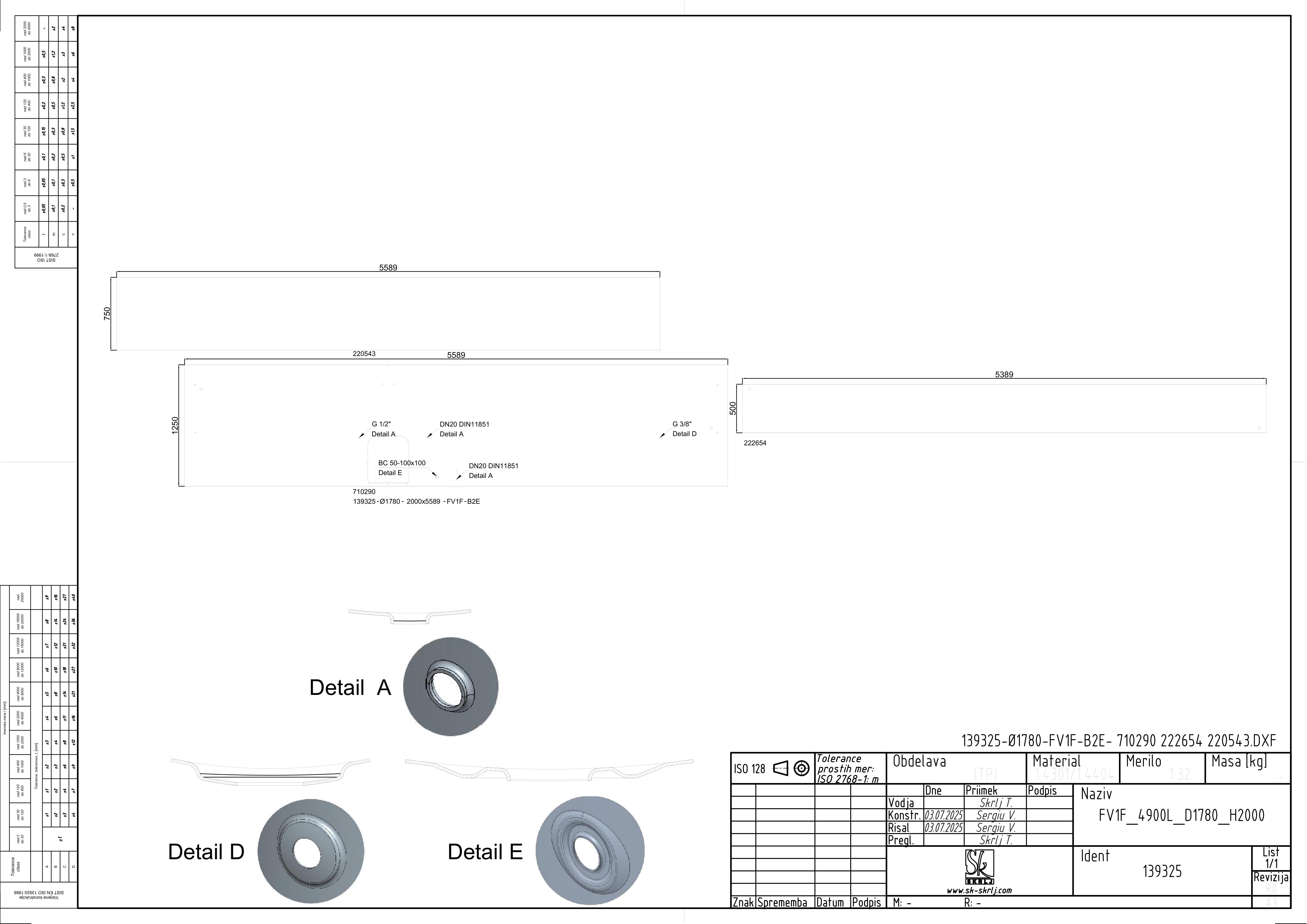

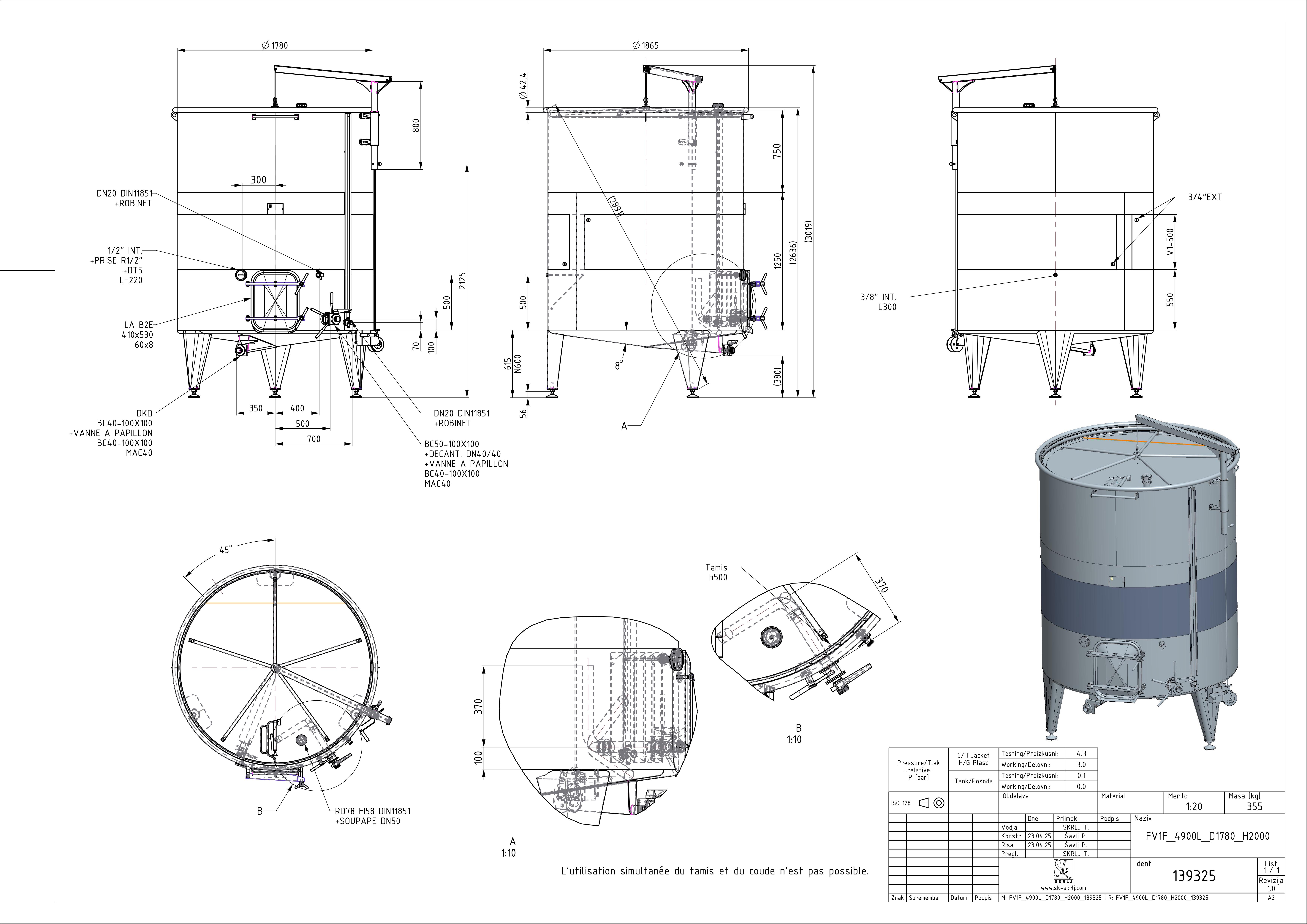

Storage tank with floating lid and double jacket
FV1F 4900 D1780 H2000 0/ATM
Material: 139325
Nominal volume in L: 4900
Internal diameter in mm: 1780
Jacket height H in mm: 2000
Total height Z in mm: 3000
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
