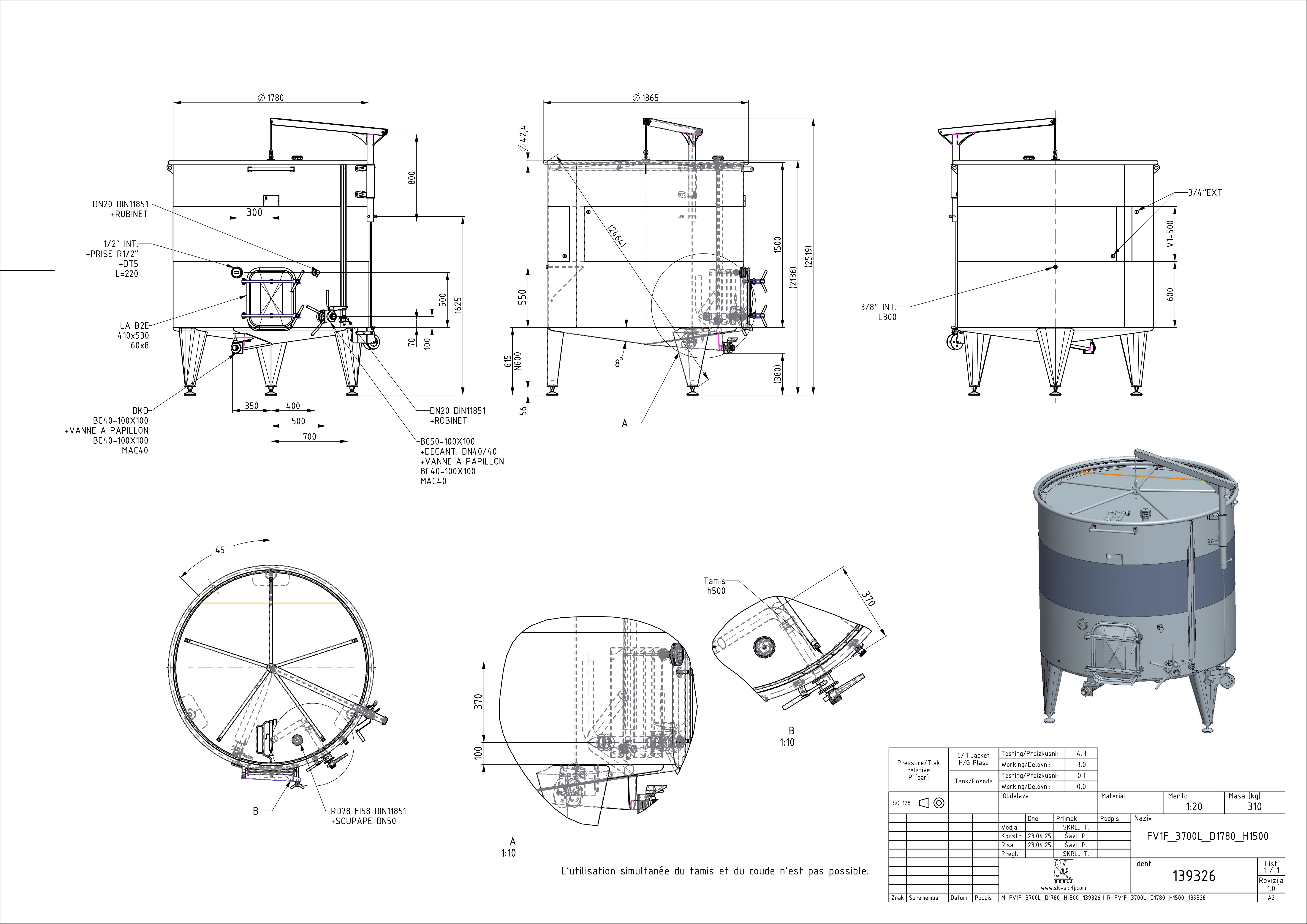

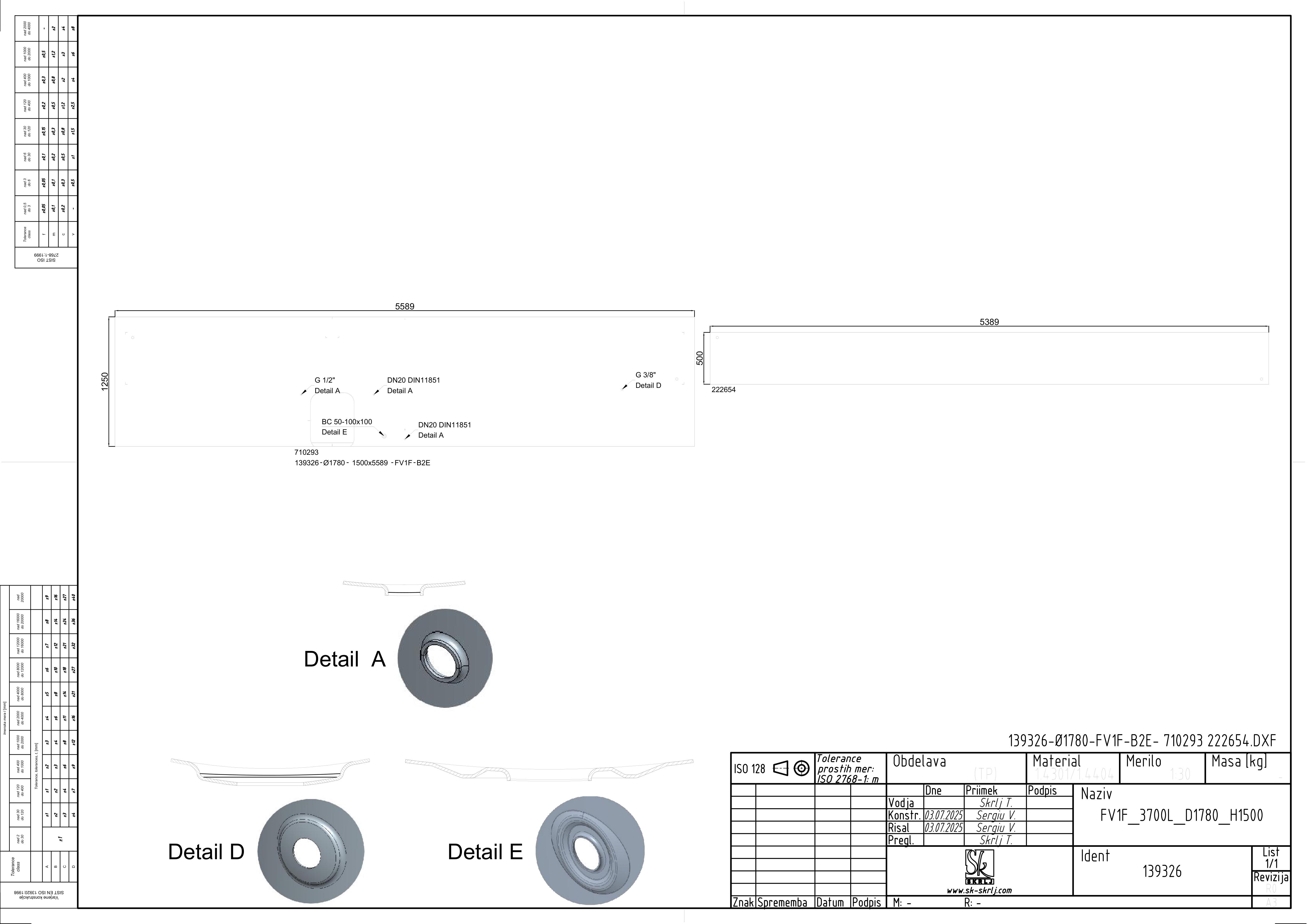

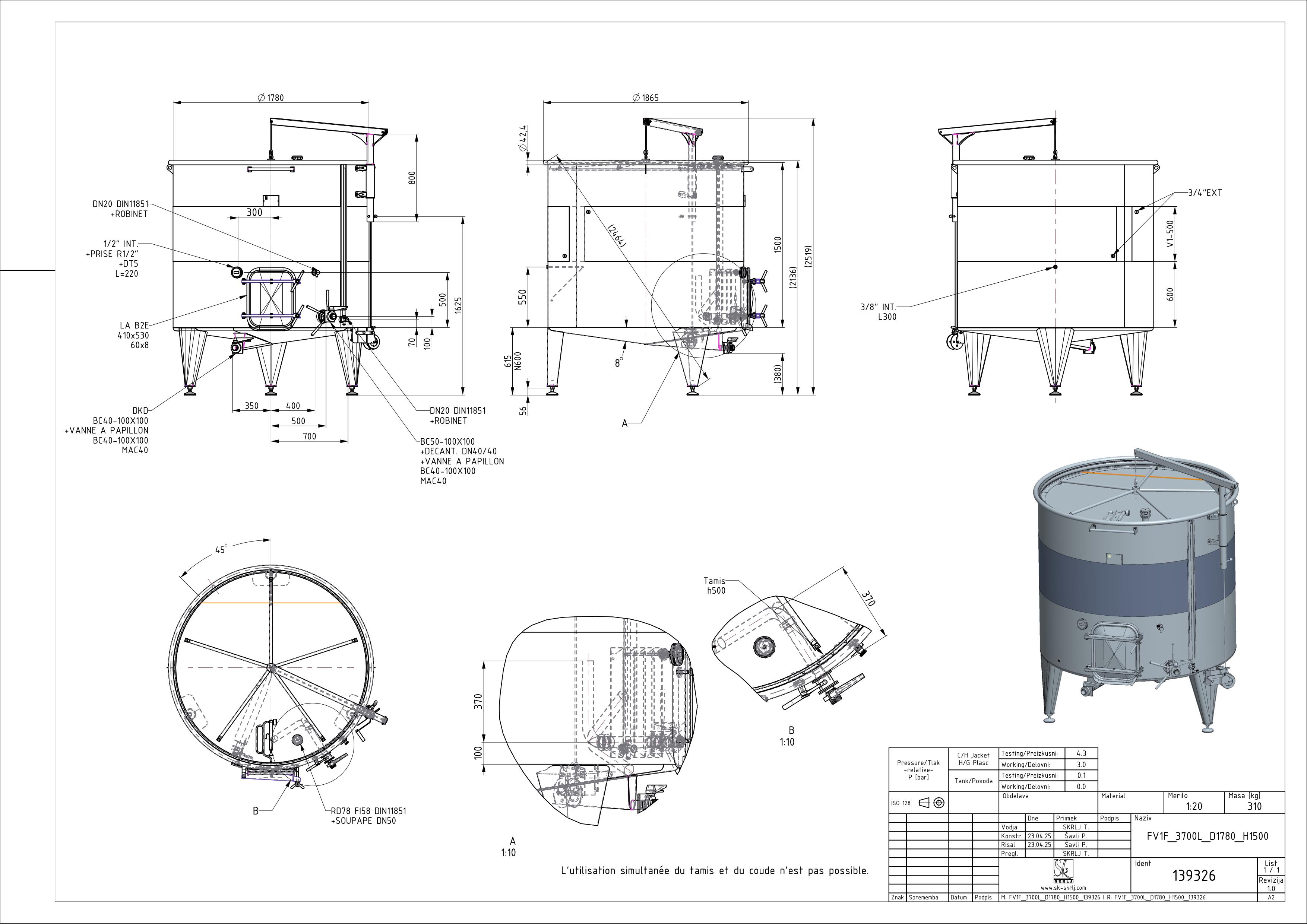

Storage tank with floating lid and double jacket
FV1F 3700 D1780 H1500 0/ATM
Material: 139326
Nominal volume in L: 3700
Internal diameter in mm: 1780
Jacket height H in mm: 1500
Total height Z in mm: 2500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
