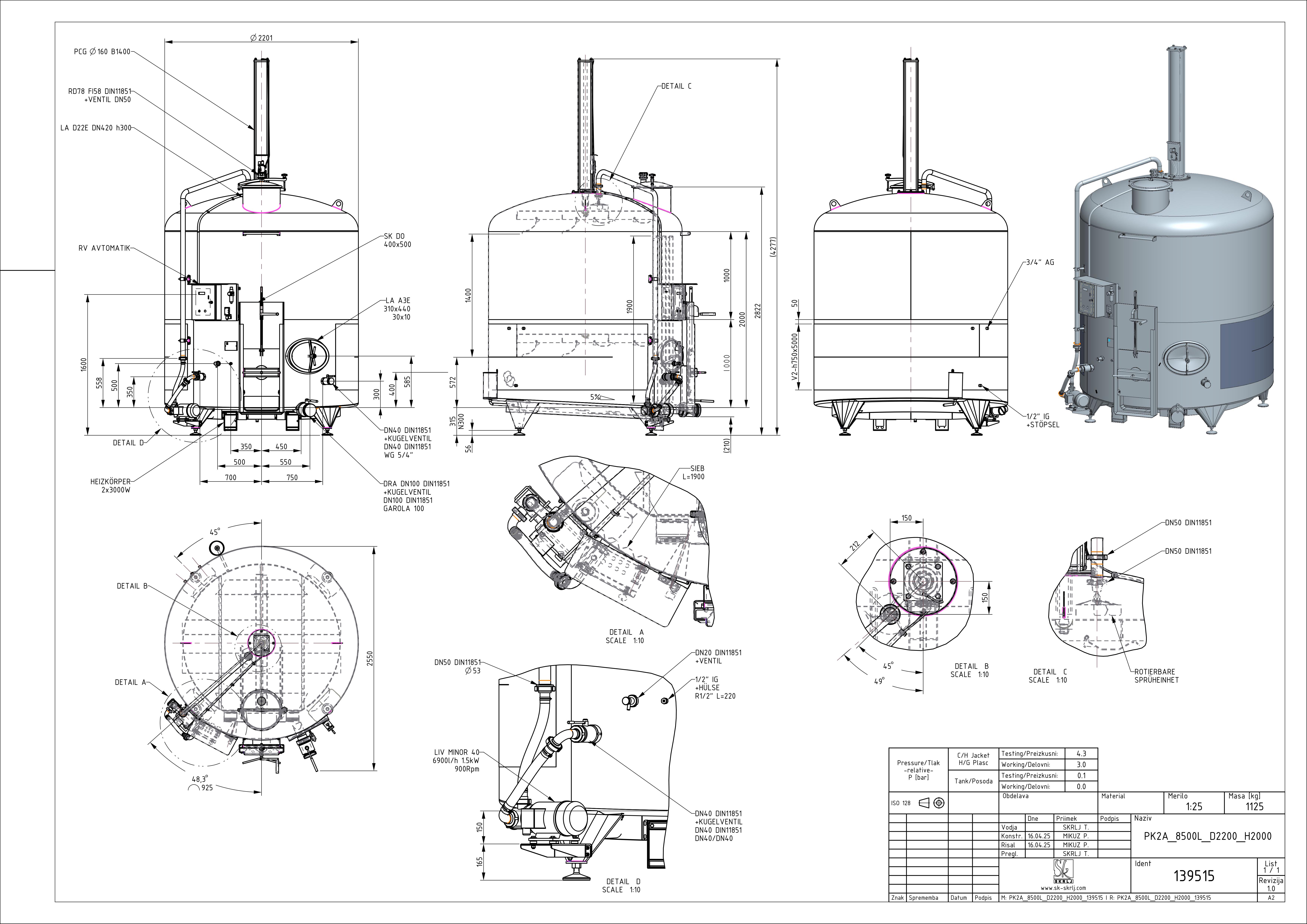

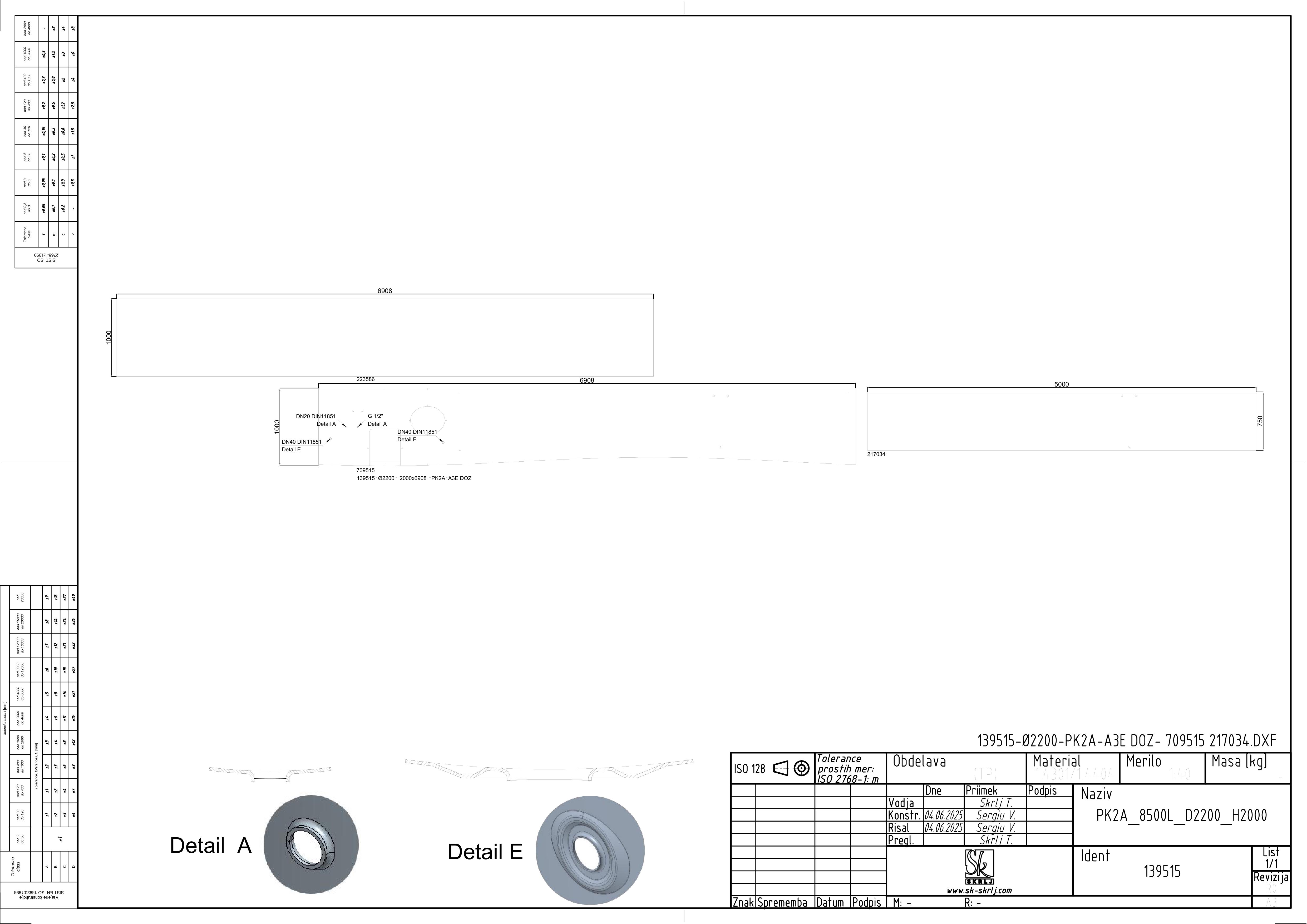

Punch-down fermenter with double jacket
PK2A 8500 D2200 H2000 0/ATM
Material: 139515
Nominal volume in L: 8500
Min. volume [l]: 3700
Max. volume [l]: 6000
Internal diameter in mm: 2200
Jacket height H in mm: 2000
Total height Z in mm: 4300
Type: Vertical tank - bottom RA - jacket E - lid BM
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
