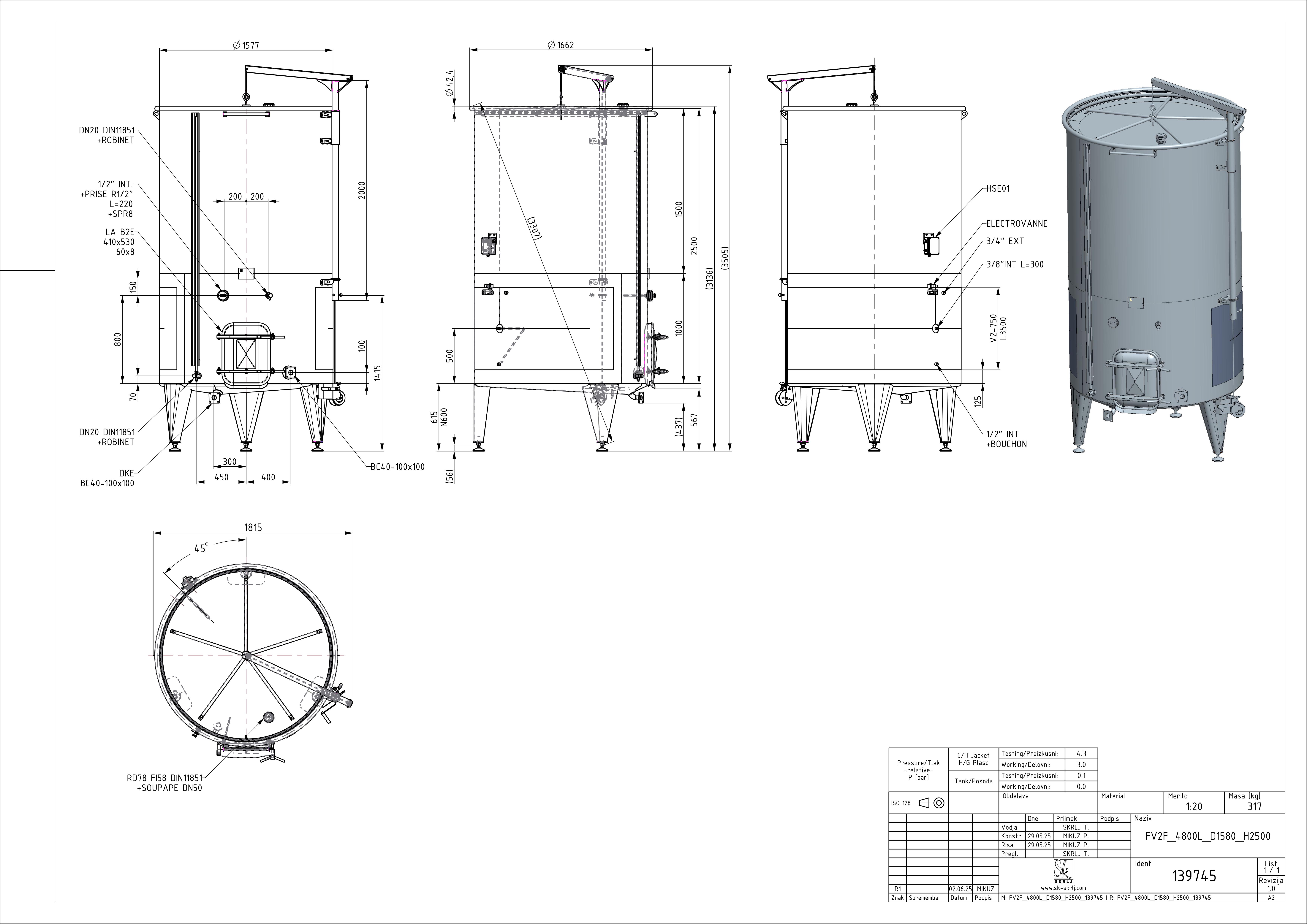

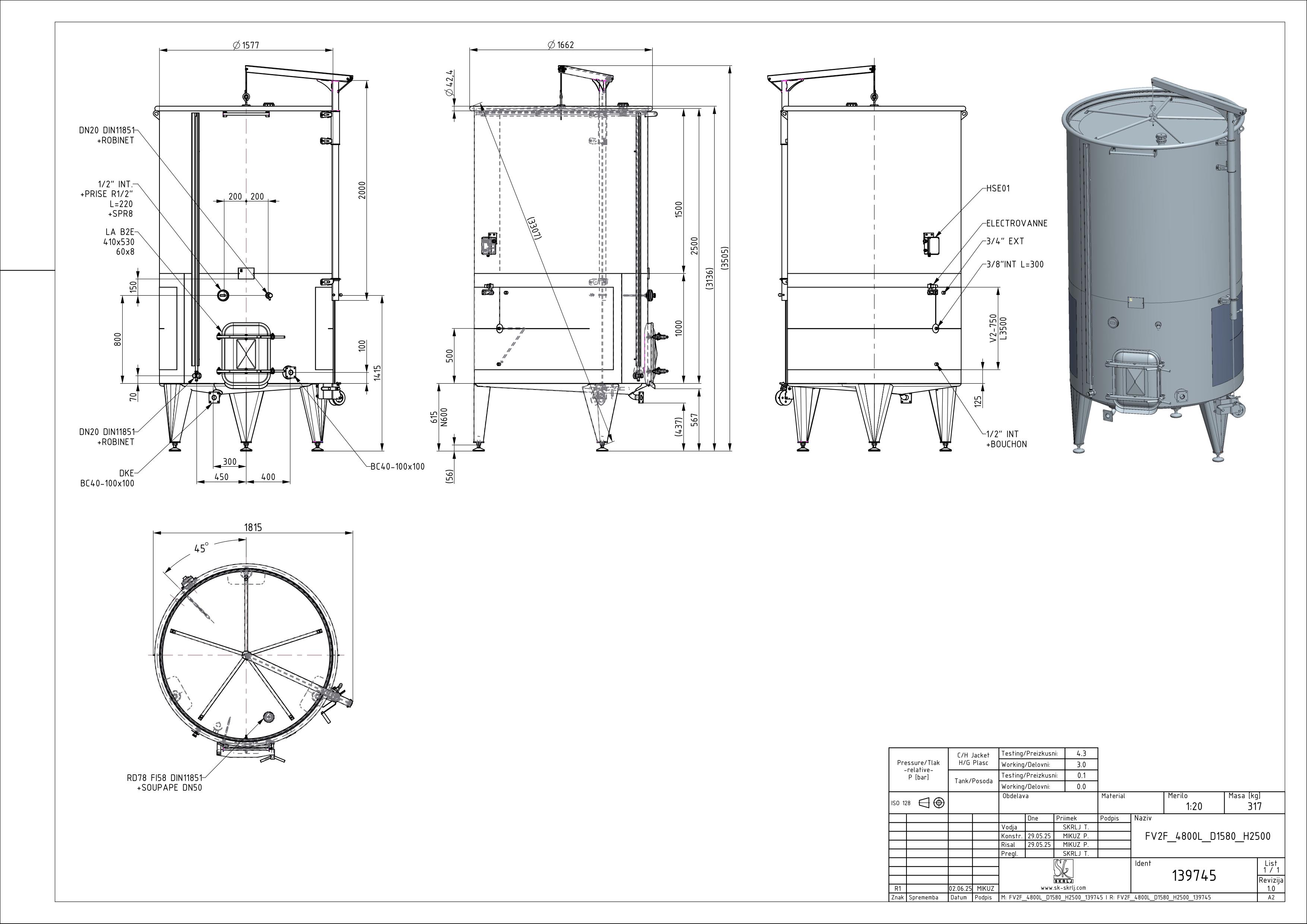

Storage tank with floating lid and double jacket
FV2F 4800 D1580 H2500 0/ATM
Material: 139745
In Stock
Nominal volume in L: 4800
Internal diameter in mm: 1580
Jacket height H in mm: 2500
Total height Z in mm: 3500
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
