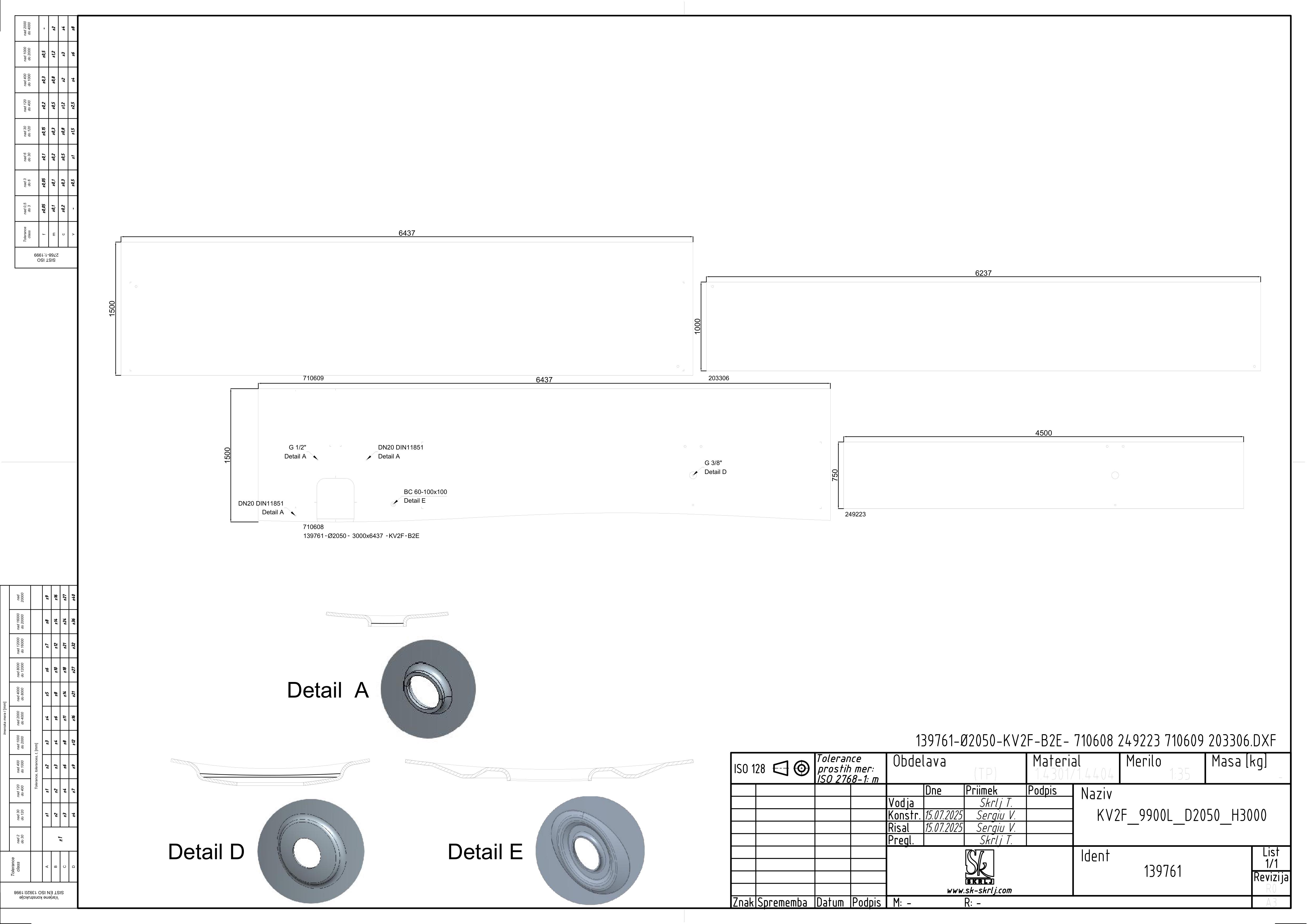

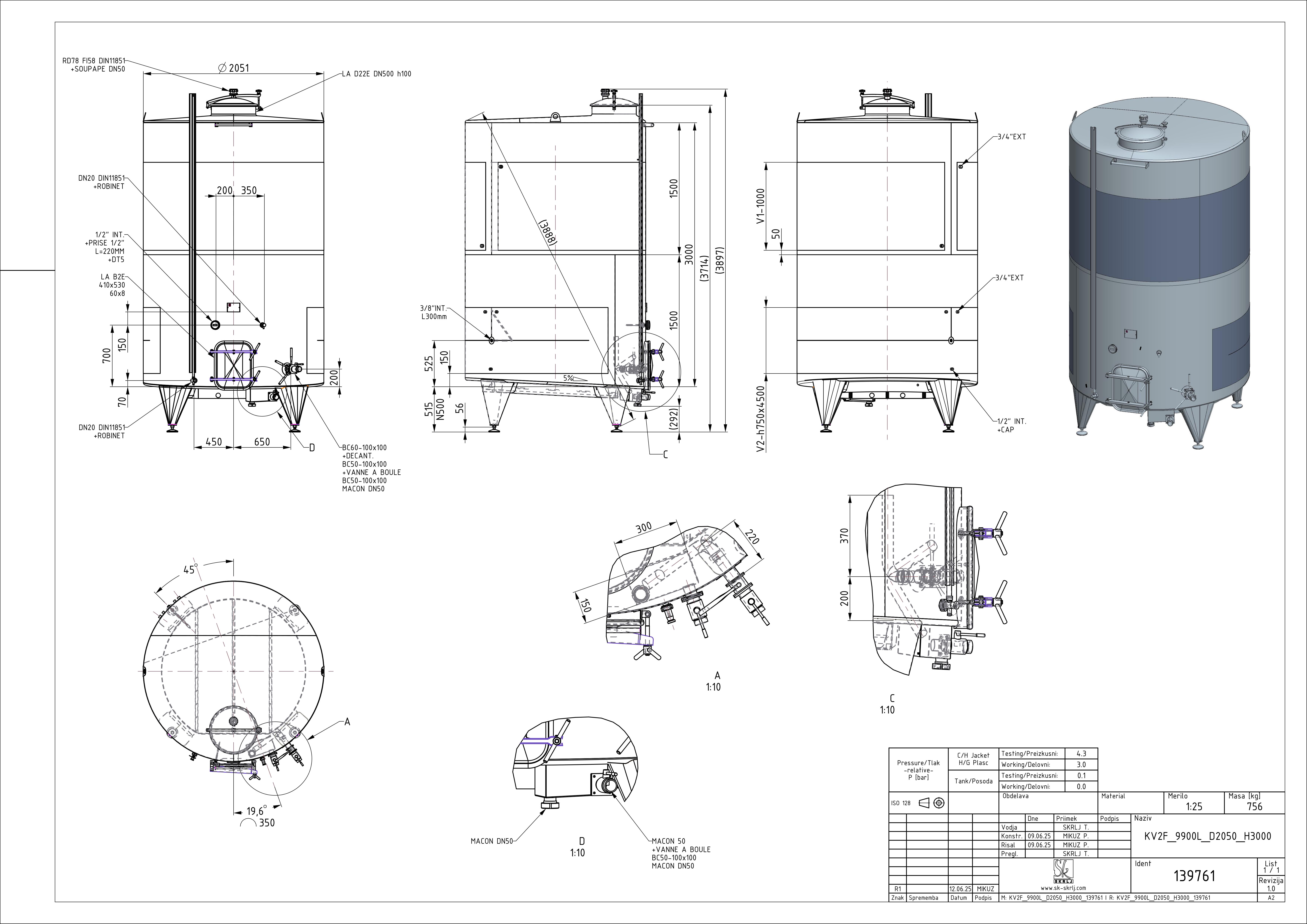

Closed pump-over fermenter with double jacket
KV2F 9900 D2050 H3000 0/ATM
Material: 139761
Nominal volume in L: 9900
Geometrical volume [l]: 9986
Internal diameter in mm: 2050
Jacket height H in mm: 3000
Total height Z in mm: 4000
Type: Vertical tank - bottom RA - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
