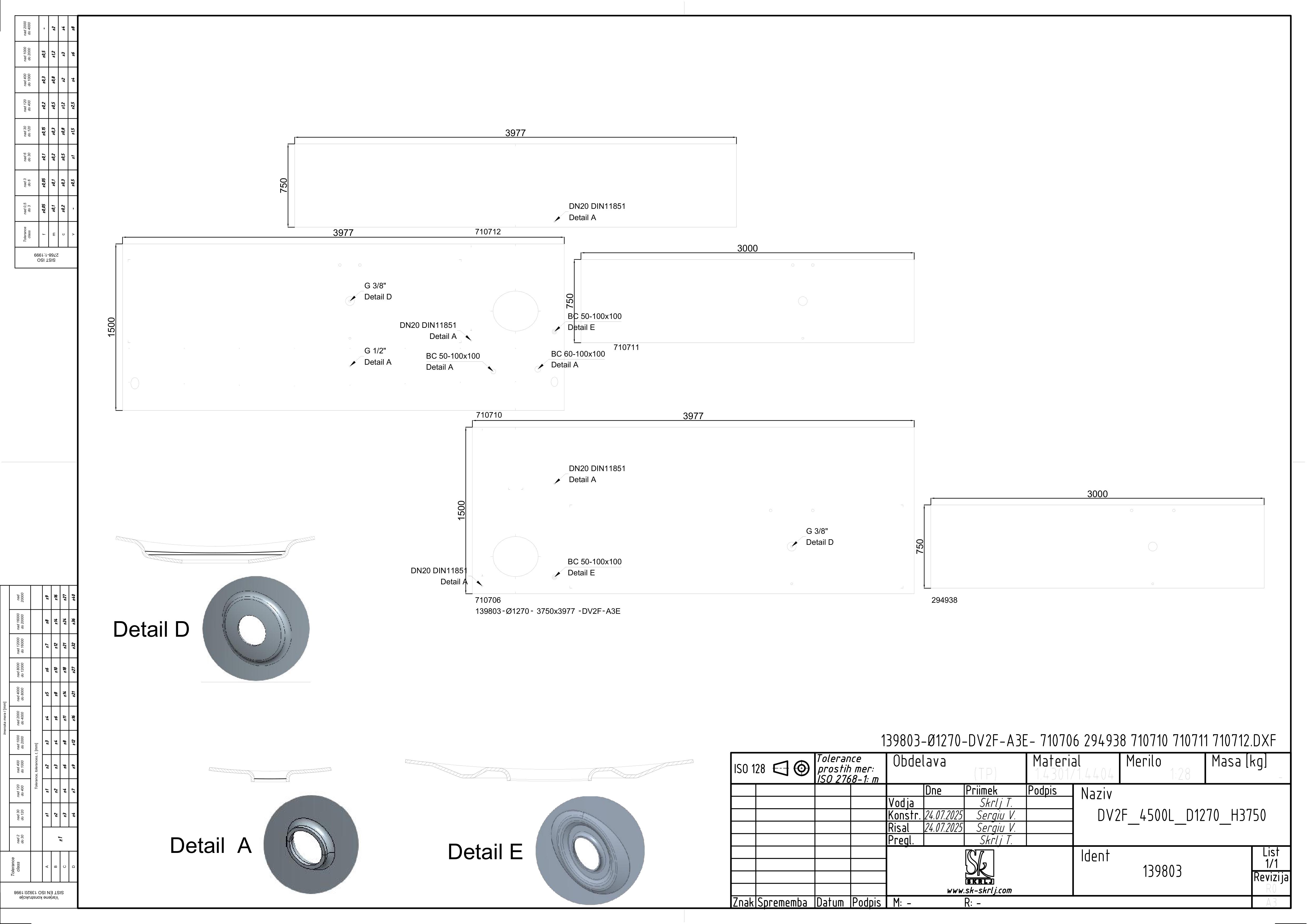

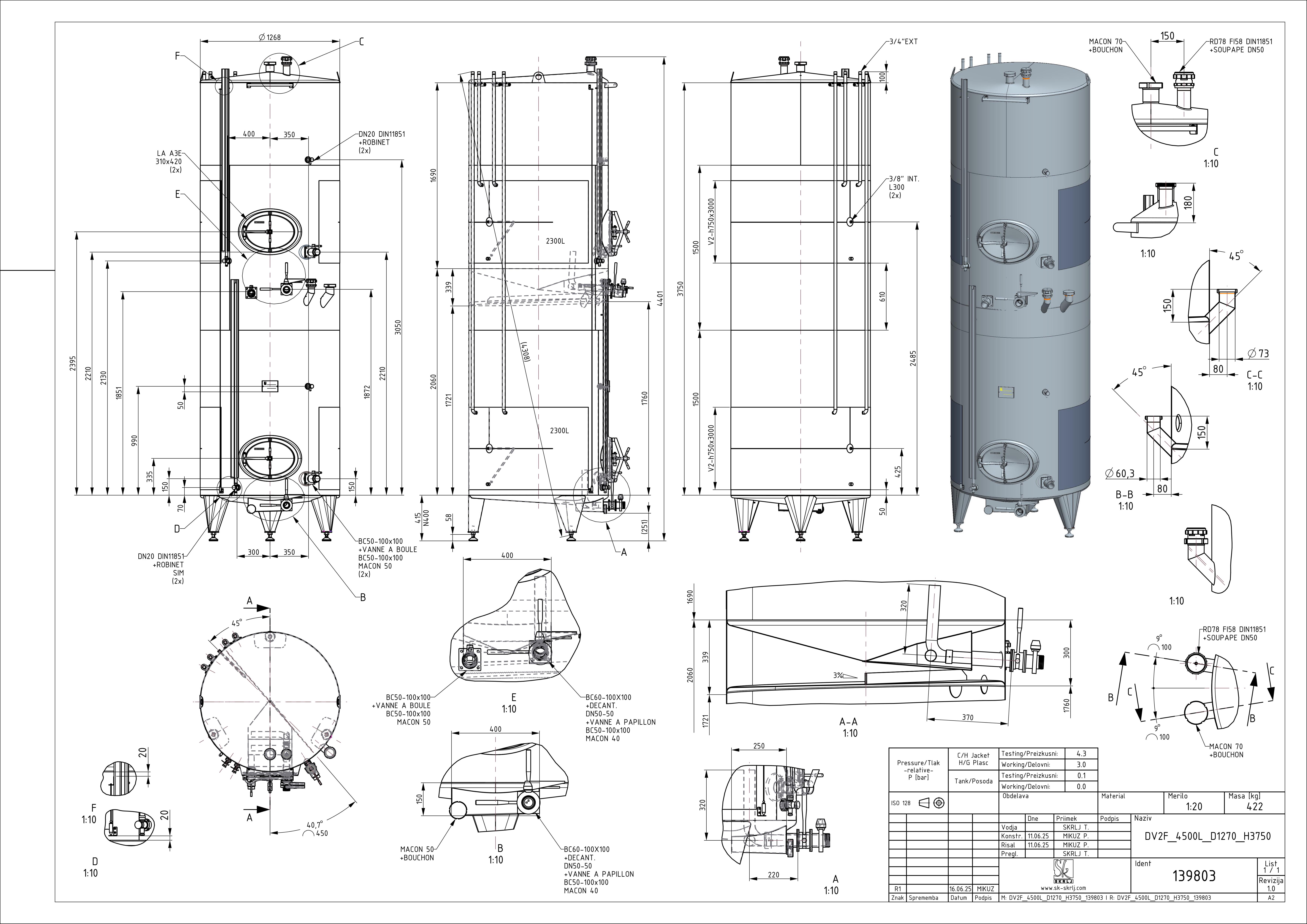

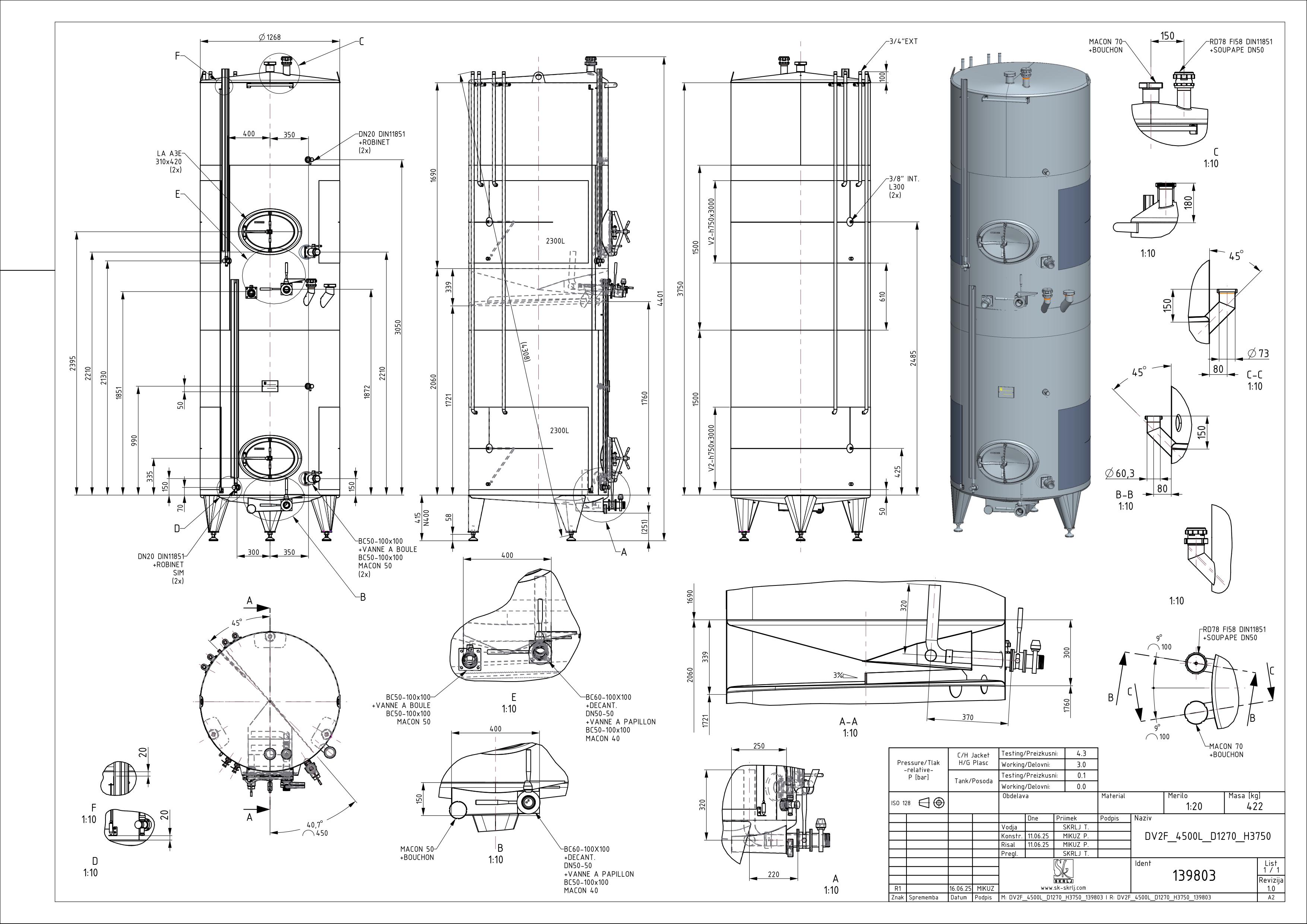

Storage tank with intermediate bottom and double jacket
DV2F 4500 D1270 H3750 0/ATM
Material: 139803
Nominal volume in L: 4500
Volume below [l]: 2250
Volume above [l]: 2250
Internal diameter in mm: 1270
Jacket height H in mm: 3750
Total height Z in mm: 4450
Type: Vertical tank - bottom KE - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Max. operating p. DJ [barg]: 3
