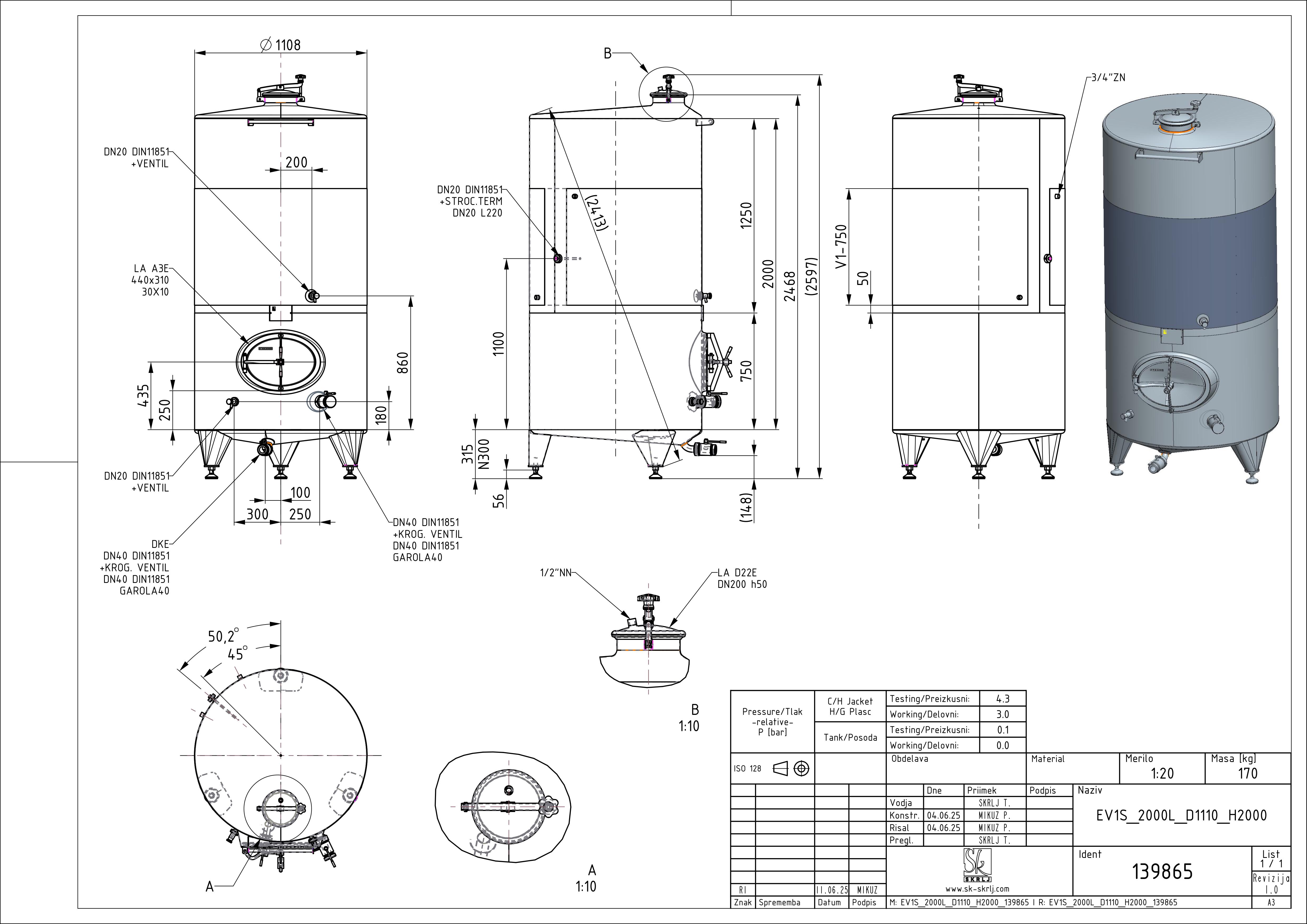

Classic storage tank with double jacket
EV1S 2000 D1110 H2000 0/ATM
Material: 139865
Nominal volume in L: 2000
Geometrical volume [l]: 2036
Internal diameter in mm: 1110
Jacket height H in mm: 2000
Total height Z in mm: 2600
Type: Vertical tank - bottom KE - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
