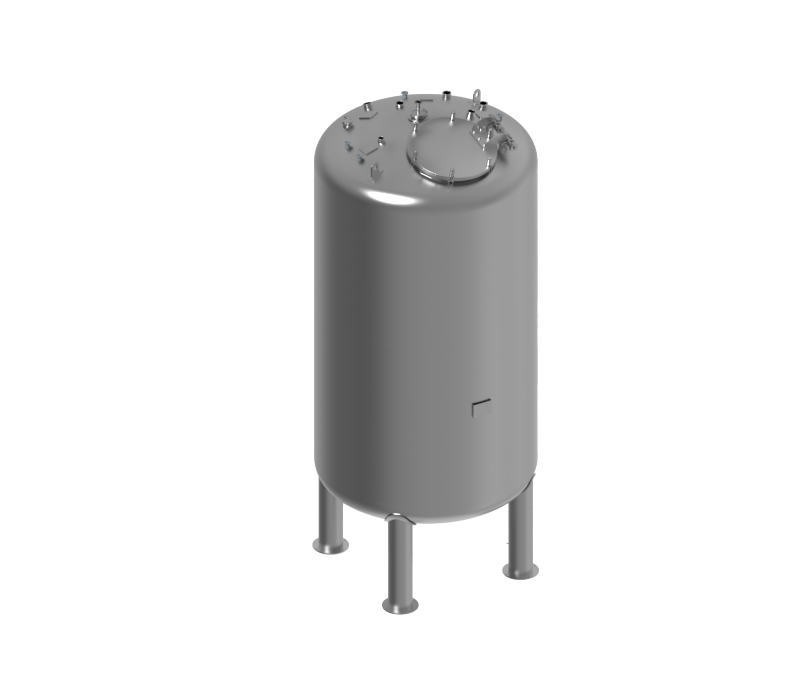

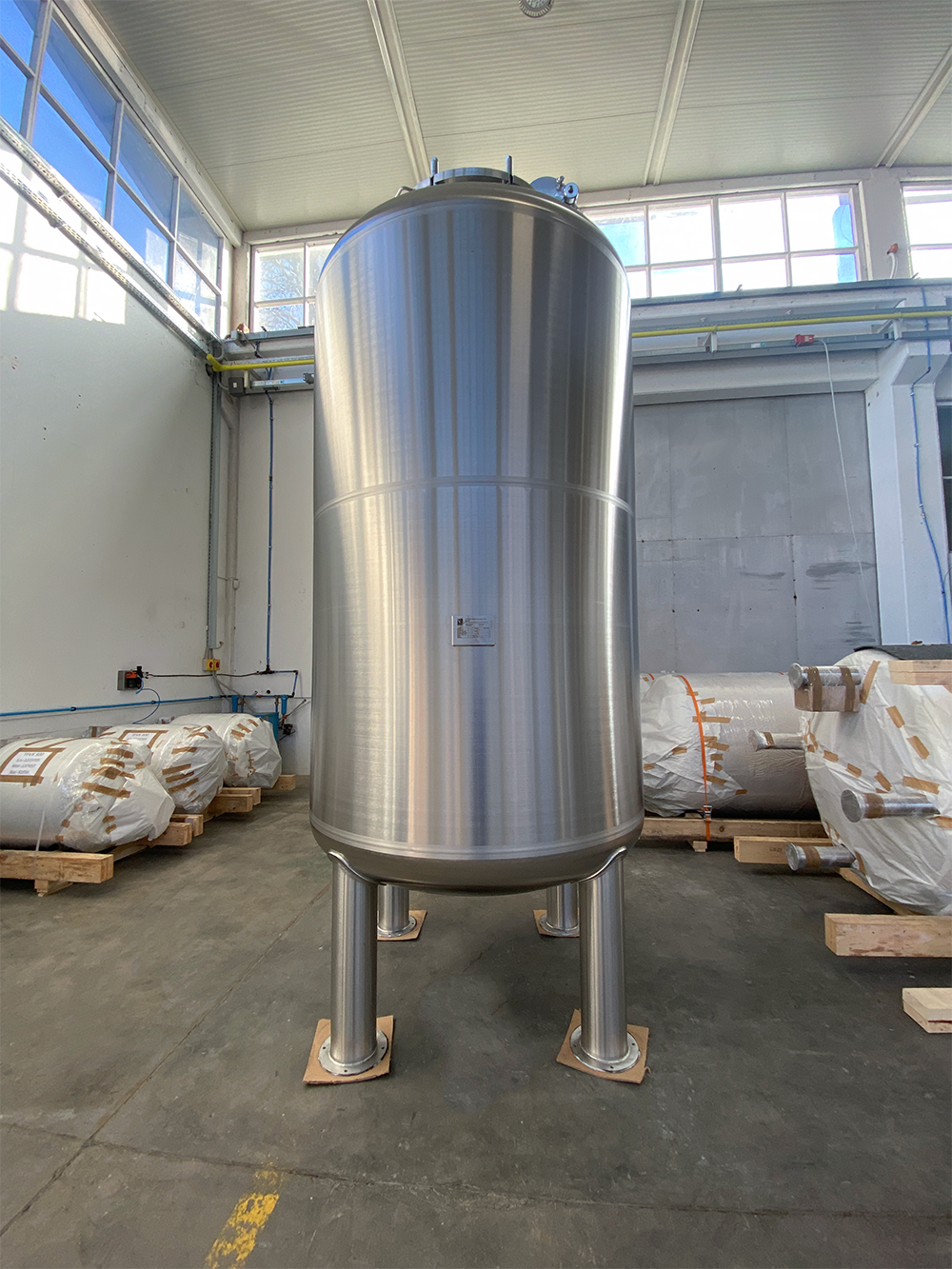

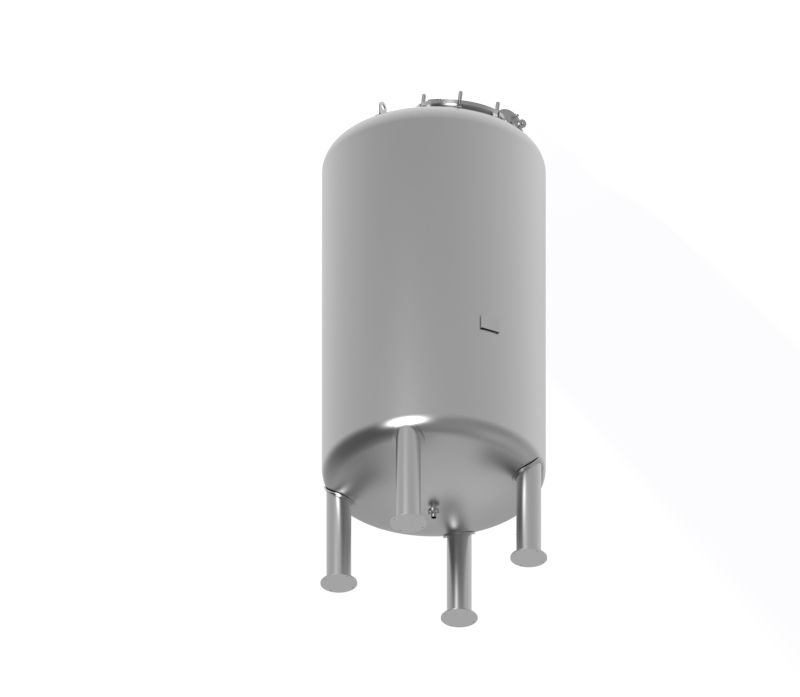

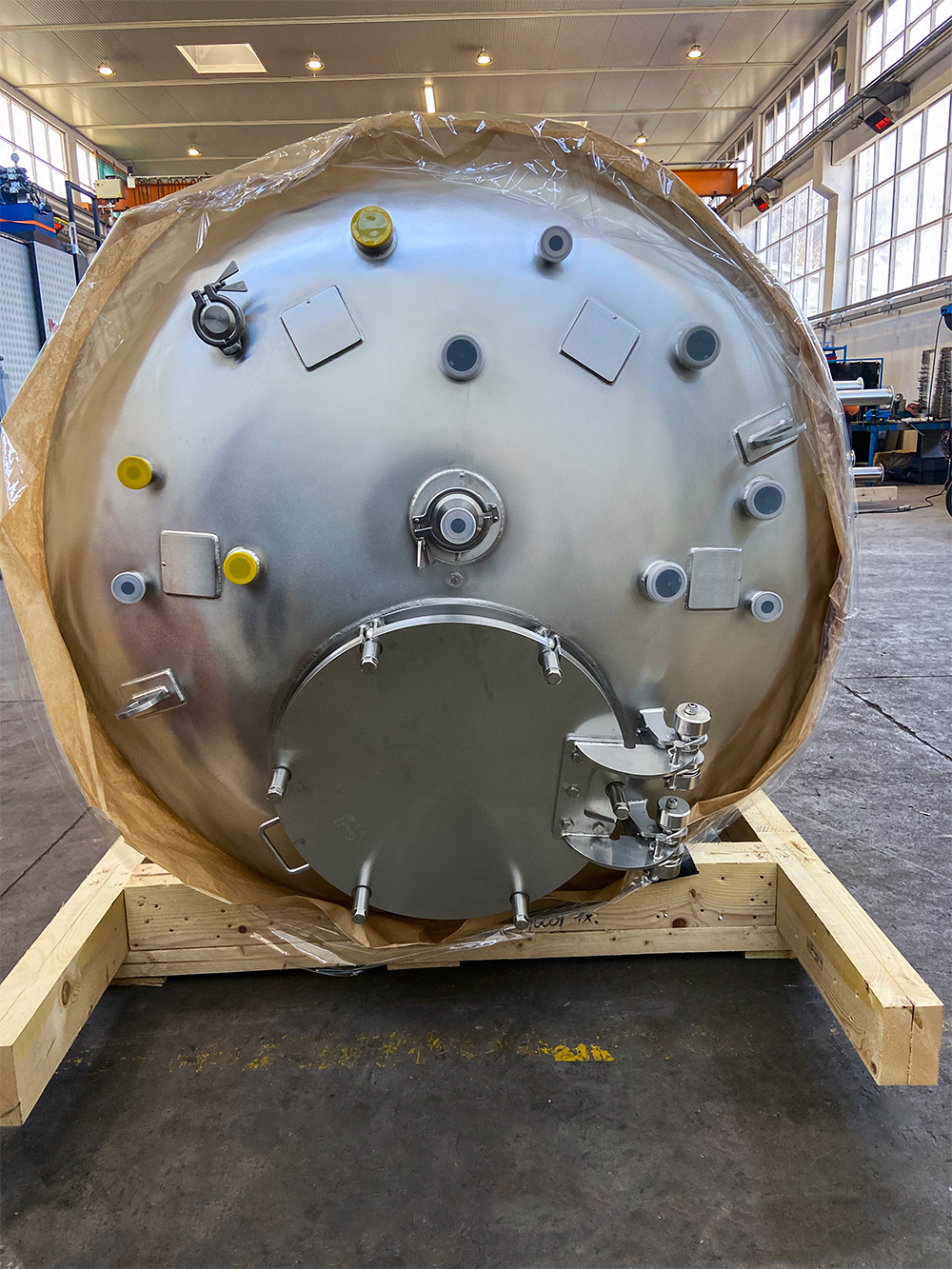

Vertical vessel
TFVX 4000 D1500 H2250 4404
Material: 139986
PED 2014/68/EU AD2000
Nominal volume in L: 4000
Geometrical volume [l]: 4744
Internal diameter in mm: 1500
Jacket height H in mm: 2250
Total height Z in mm: 3530
Thickness bottom/wall/lid: 8/8/8
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM
Support type: legs
Medium/Product: Fluid group 1
Min. design pressure in barg: -1
Max. design pressure in barg: +0,5
Test pressure [barg]: +0,8
Max. design temperature (°C): 90
min. design temperature (°C) 0
max. working temperature (°C) 35
min. working temperature (°C) 25
Material: EN 1.4404,stainless steel
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is GROUND. Final surface roughness isn't defined. Grinding leads to a uniform and aesthetic surface quality.
Internal product contact surface is Ra<(><<)>0,8 μm 100%
Weld on the external (visible) side ground (B120ZZ) to final roughness Ra less than 1.2 μm (K120).
Internal product contact weld B120ZN_RA08 100%

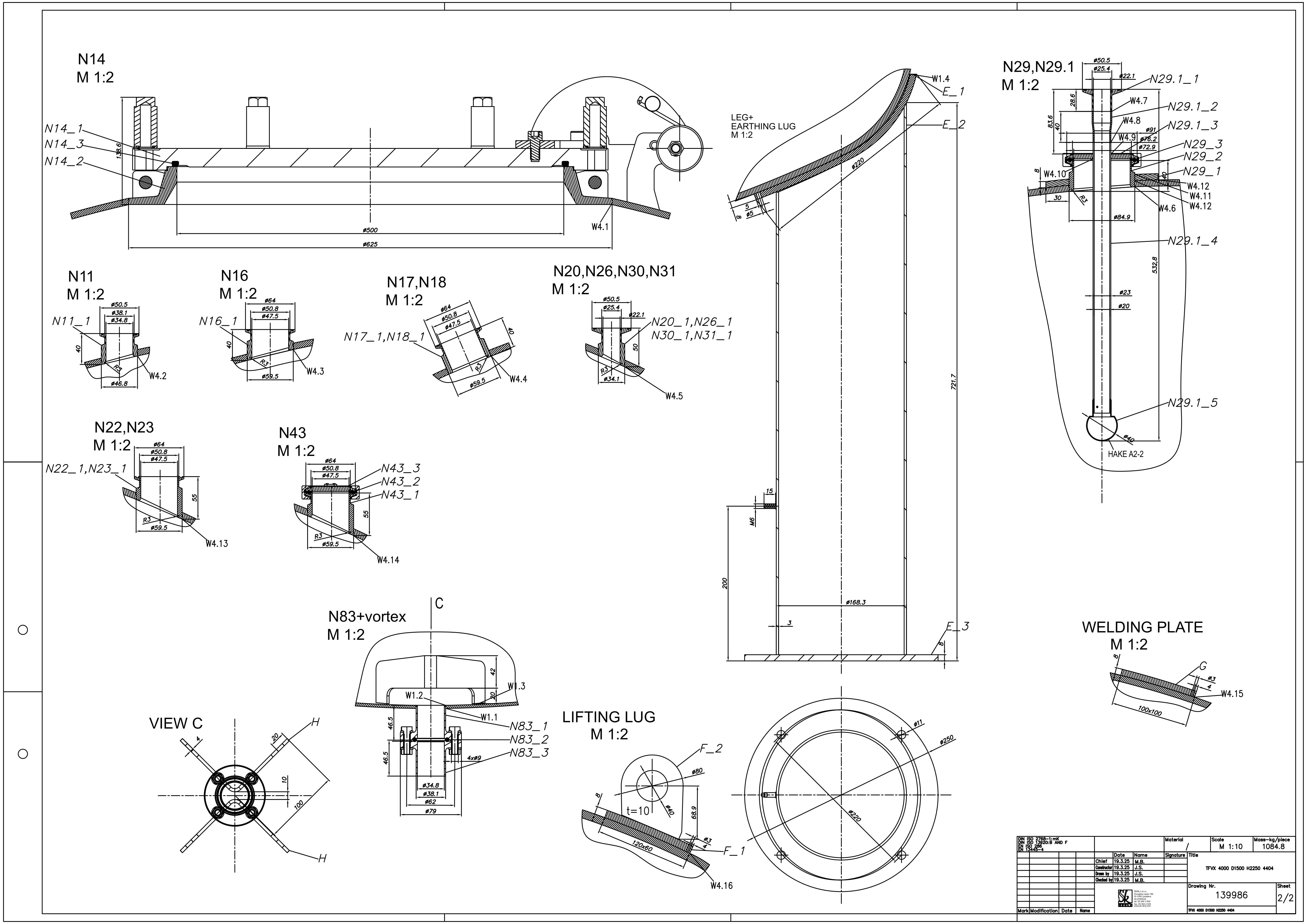

Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report

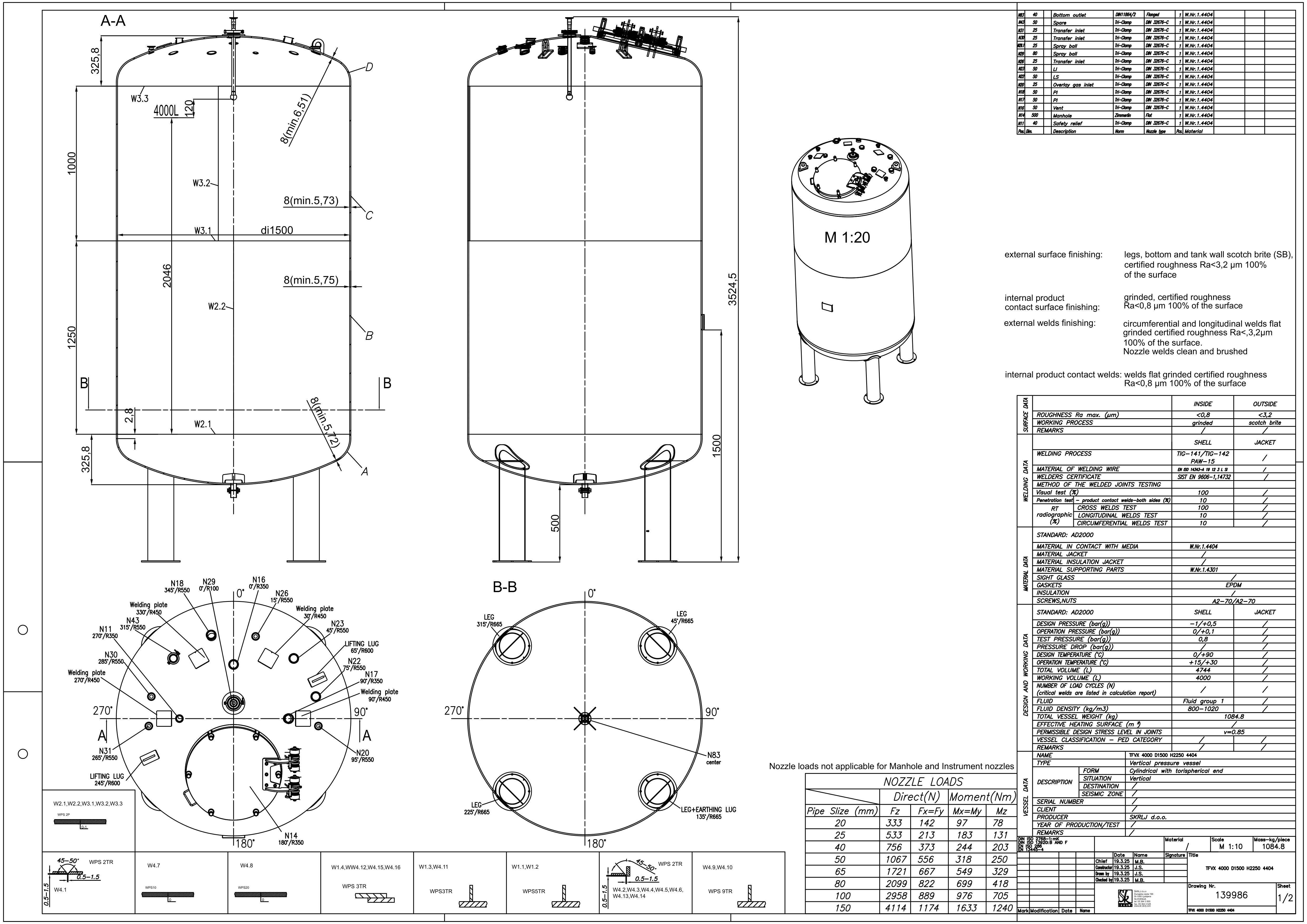

Drawings and calculations: Construction drawing
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity
DECLARATION OF CONFORMITY, MANUALS Instruction manual
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
