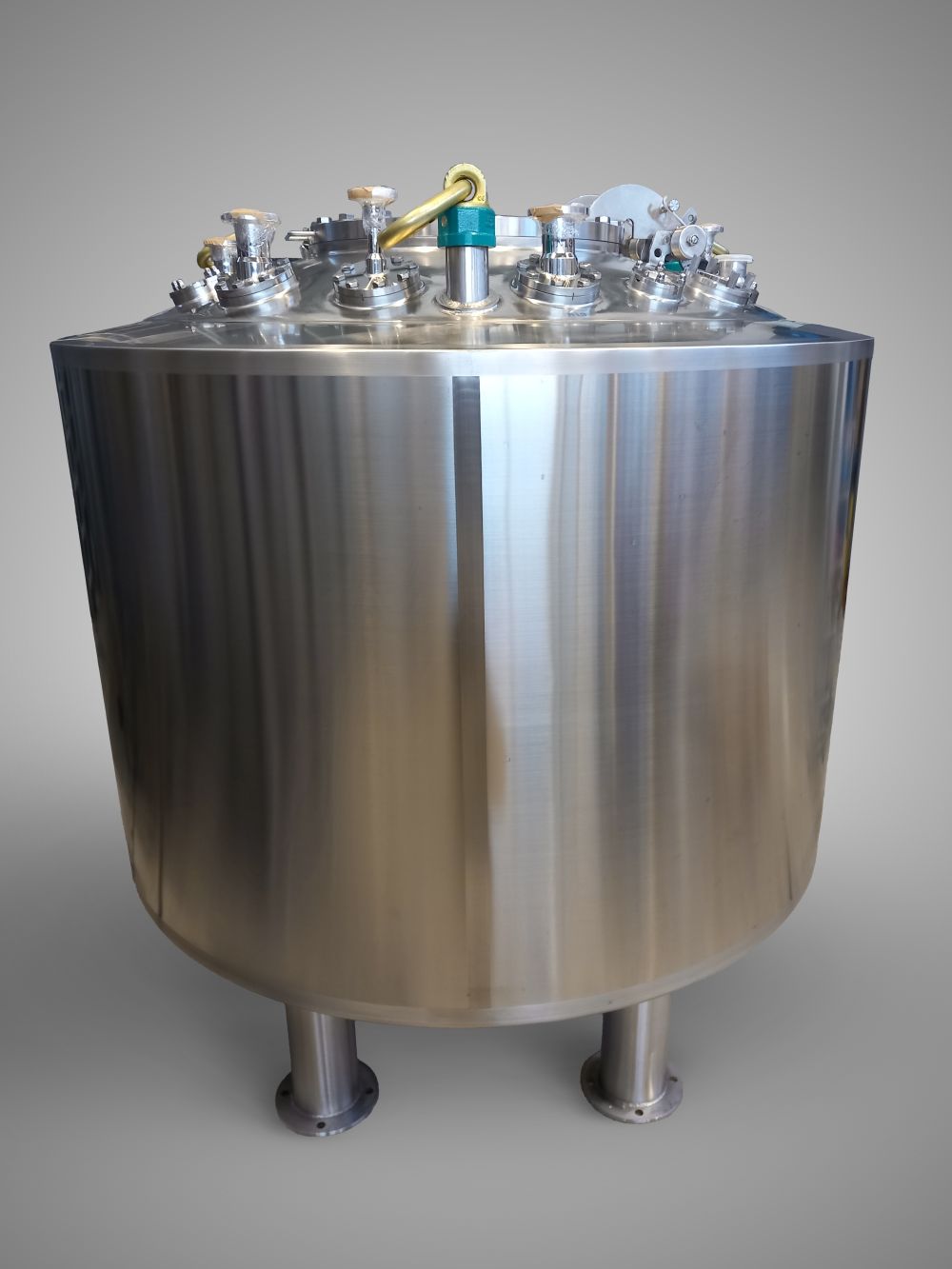

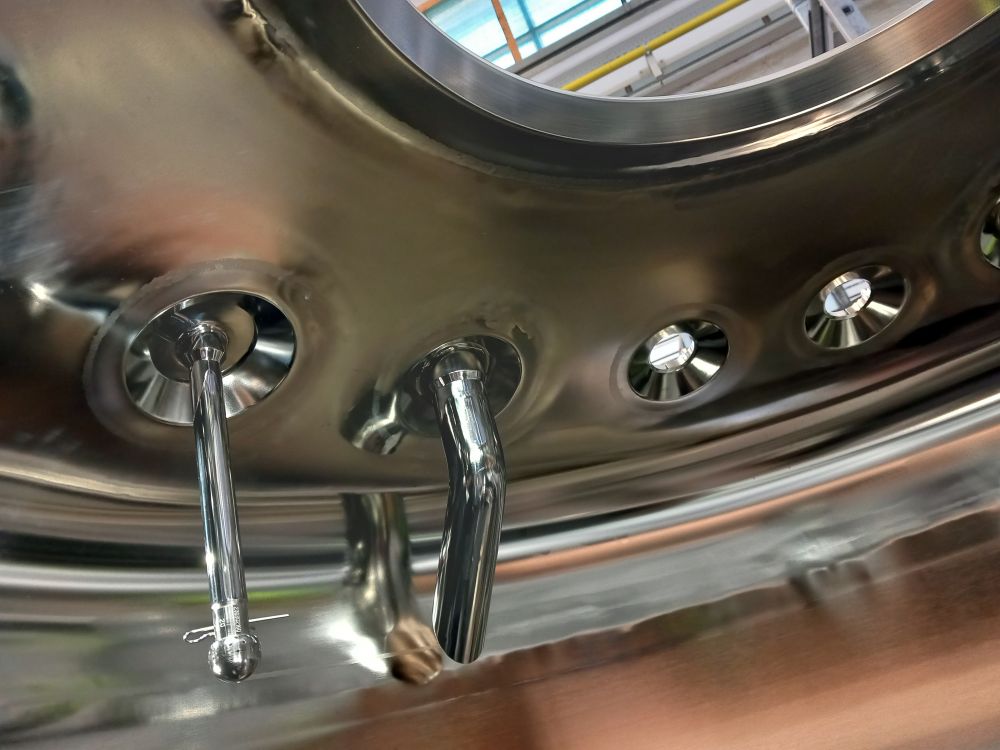

Vertical vessel with temperature control
TFPX 1000 D1300 H640 -1/+0,5 4435
Material: 139992
PED 2014/68/EU EN13445
PED 2014/68/EU Category IV
PED 2014/68/EU Module H1
Nominal volume in L: 1000
Geometrical volume [l]: 1357
Internal diameter in mm: 1300
External diameter [mm]: 1500
Jacket height H in mm: 640
Total height Z in mm: 1820
Thickness bottom/wall/lid: 8/5/8
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM

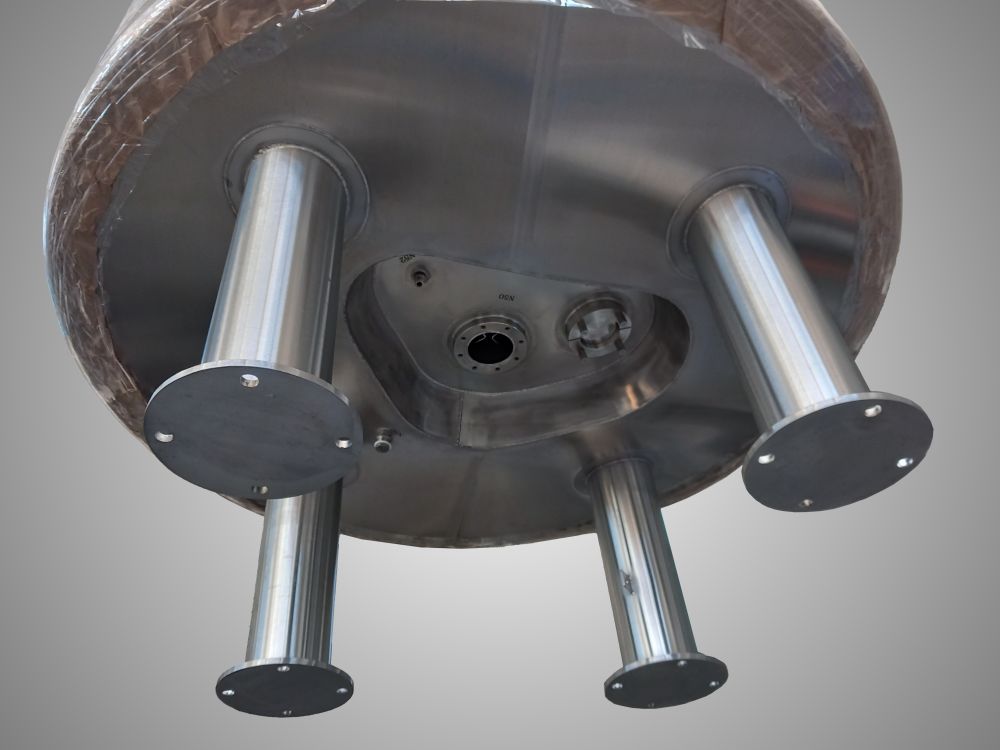

Support type: legs
Medium/Product: Fluid group 1
Min. operating press. [barg]: -1
Max. operating press. [barg]: +0,5
Min. design pressure in barg: -1
Max. design pressure in barg: +4
Test pressure [barg]: +7,22
Max. design temperature (°C): 150
min. design temperature (°C) -10
max. working temperature (°C) 85
min. working temperature (°C) 15
Material: EN 1.4435,stainless steel
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN 1.4301/ASTM304
P3* MINERALWOOL_CHLORIDE FREE_100
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.

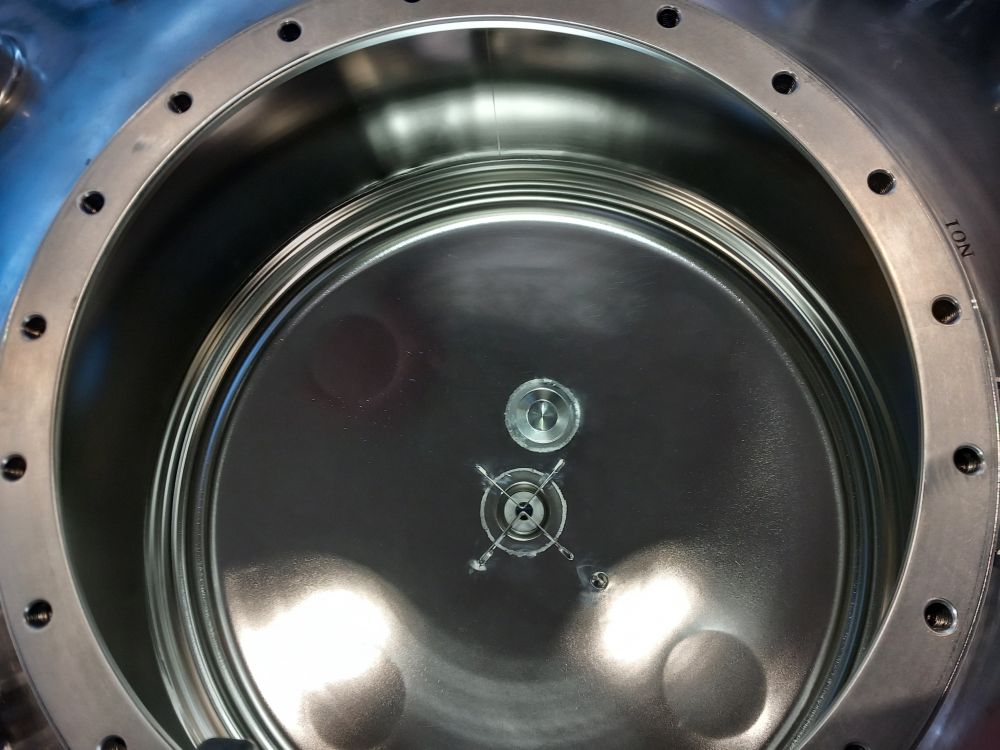

Internal product contact surface is ELECTROPOLISHED
Internal product contact surface is RA06
Weld on the external (visible) side is striped (BP), partially visible weld structure.
Internal product contact weld RA06
Note surface: dFe material <(><<)> 1 %
Note surface: dFe welds <(><<)> 3 %
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report
Drawings and calculations: Construction drawing
Drawings and calculations: Drawing - Spray ball
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
DECLARATION OF CONFORMITY, MANUALS TÜV report (IV), H1
Nondestructive Testing: Delta Ferrite content test report
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: Riboflavin test report
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Electropolishing report
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
