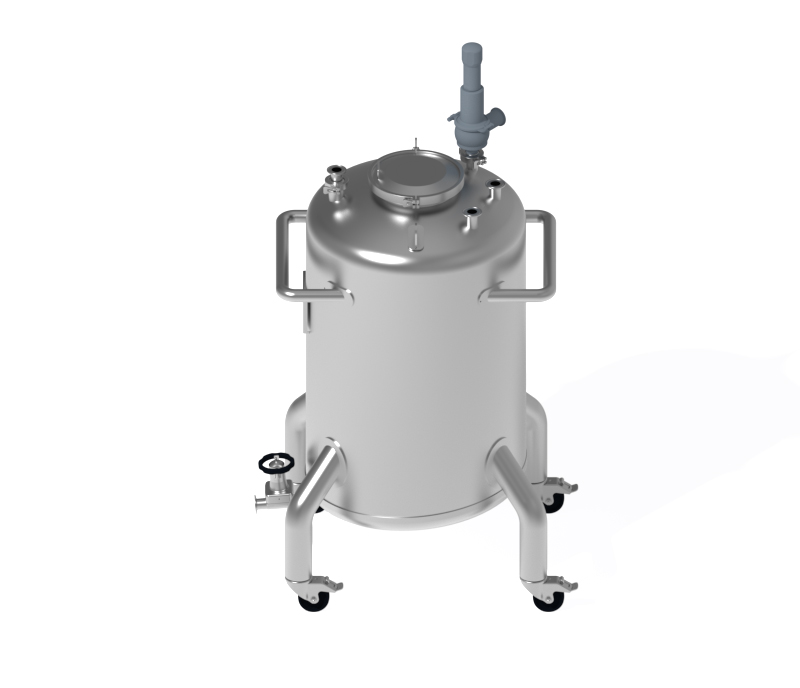

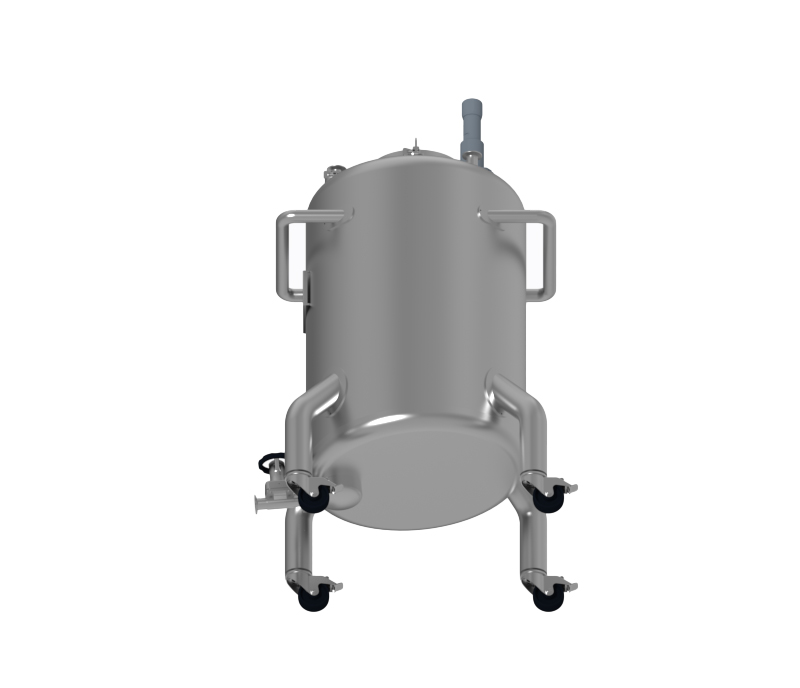

Mobile vessel
TFMX 160 D550 H704 4435
Material: 139994
PED 2014/68/EU EN13445
PED 2014/68/EU Category II
PED 2014/68/EU Module H
Nominal volume in L: 160
Geometrical volume [l]: 193
Internal diameter in mm: 550
Jacket height H in mm: 704
Total height Z in mm: 1137
Thickness bottom/wall/lid: 8/3/3
Installation orientation: vertical
Type: Vertical tank - bottom RA - jacket E - lid BM
Support type: Legs with wheels
Medium/Product: Fluid group 2
Min. design pressure in barg: 0
Max. design pressure in barg: +2
Test pressure [barg]: +3,6
Max. design temperature (°C): 149
min. design temperature (°C) -20
Material: EN 1.4435,stainless steel
External visible surface is ELECTROPOLISHED
External visible surface is RA08
Internal product contact surface is ELECTROPOLISHED
Internal product contact surface is RA064
Weld on the external (visible) side RA08_99%
Internal product contact weld RA064_100%
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report
Drawings and calculations: Construction drawing
Drawings and calculations: Drawing - Spray ball
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
DECLARATION OF CONFORMITY, MANUALS TÜV report (IV), H1
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Drainability test
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
