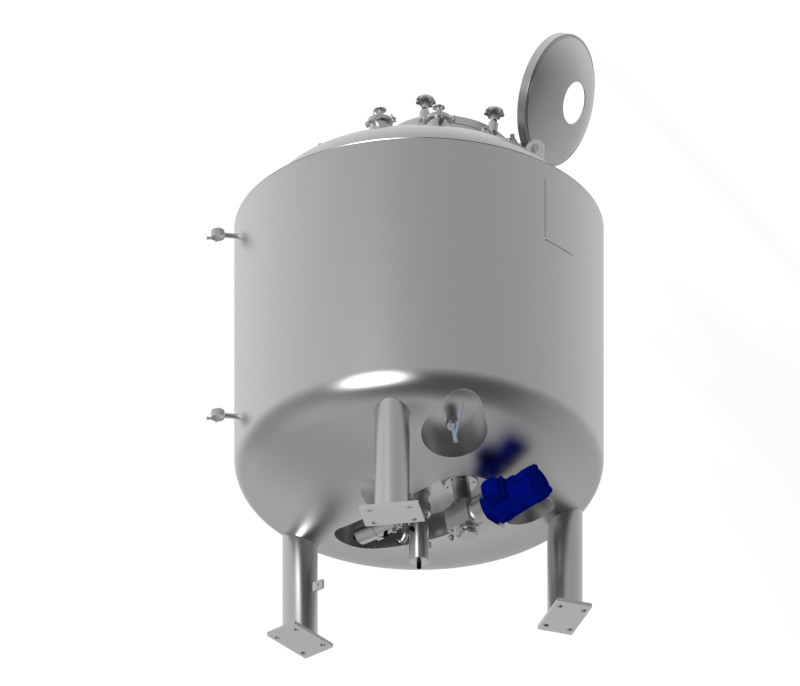

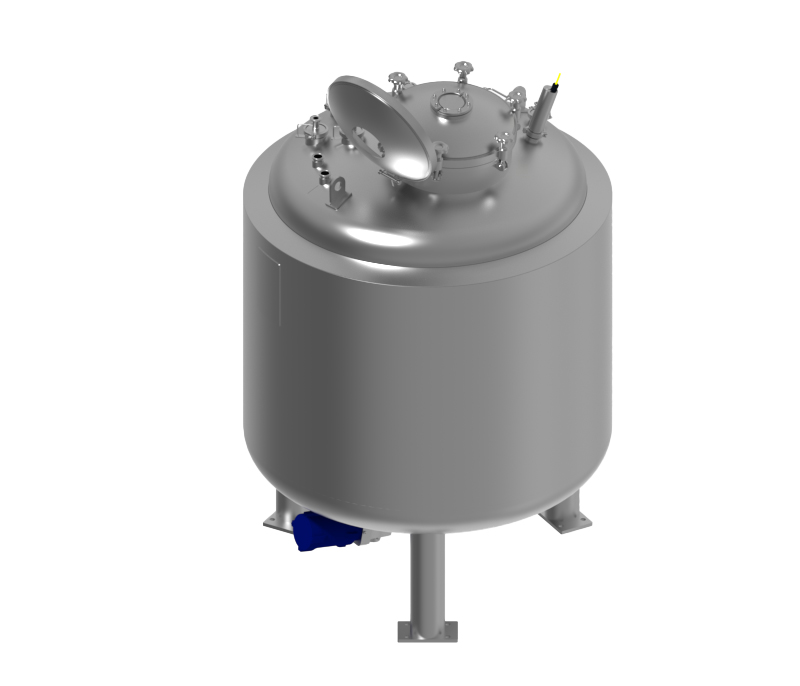

Vertical vessel with temperature control
TFPX 1000 D1250 H970 4404
Material: 139997
PED 2014/68/EU EN13445
PED 2014/68/EU Category III
PED 2014/68/EU Module H
Nominal volume in L: 1000
Geometrical volume [l]: 1645
Internal diameter in mm: 1250
External diameter [mm]: 1470
Jacket height H in mm: 970
Total height Z in mm: 2200
Thickness bottom/wall/lid: 6/6/6
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM
Support type: legs
Medium/Product: Fluid group 2
Min. design pressure in barg: -1
Max. design pressure in barg: +3
Test pressure [barg]: +4,8
Max. design temperature (°C): 150
min. design temperature (°C) 0
max. working temperature (°C) 128
min. working temperature (°C) 20
Material: EN 1.4404,stainless steel
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN 1.4301/ASTM304
P3* MINERALWOOL_CHLORIDE FREE_60
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is RA064
Weld on the external (visible) side is striped (BP), partially visible weld structure.
Internal product contact weld RA064_100%
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report
Drawings and calculations: Construction drawing
Drawings and calculations: Drawing - Spray ball
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
DECLARATION OF CONFORMITY, MANUALS TÜV report (IV), H1
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Drainability test
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: Riboflavin test report
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
