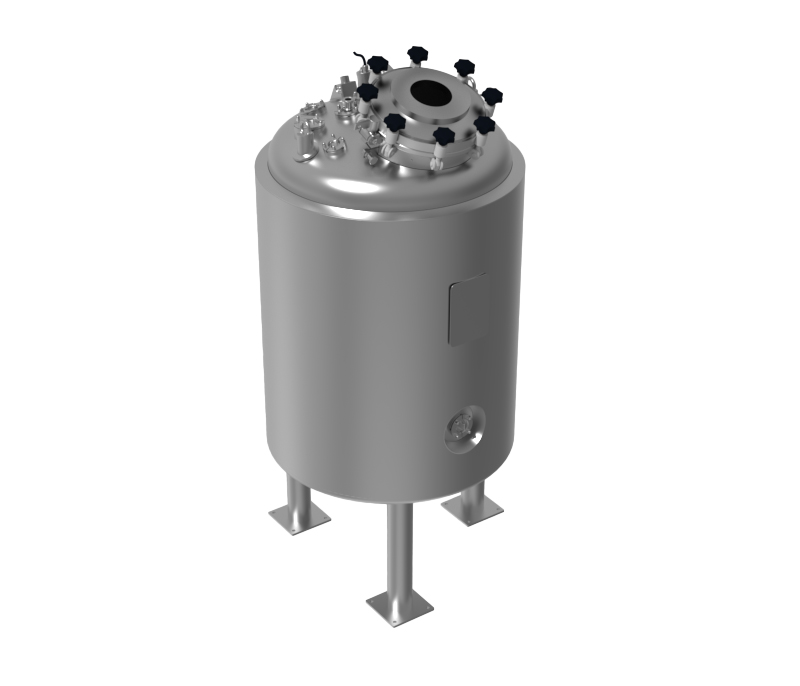

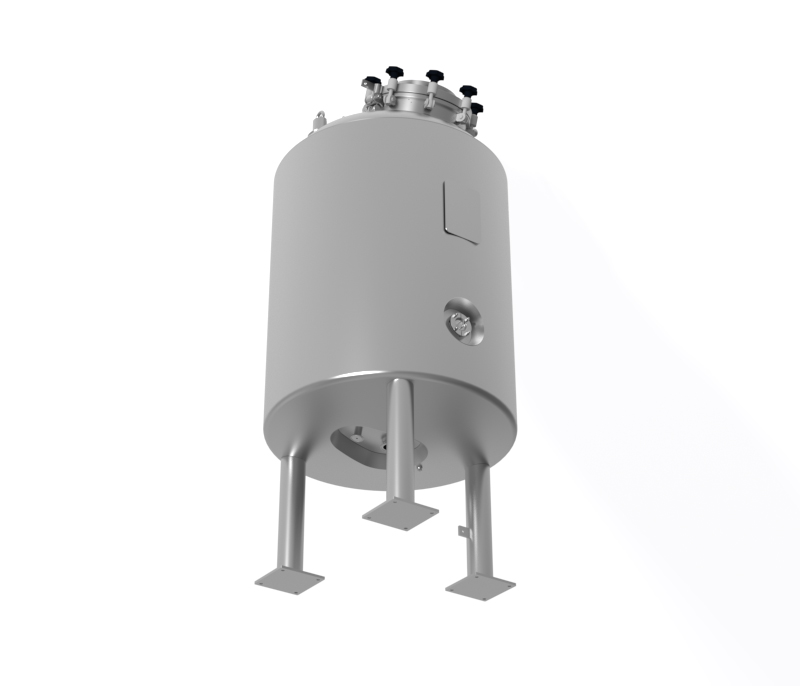

Vertical vessel
TFVX 500 D880 H1000 4435
Material: 139999
PED 2014/68/EU AD2000
PED 2014/68/EU Category III
PED 2014/68/EU Module H
Nominal volume in L: 500
Geometrical volume [l]: 776
Internal diameter in mm: 880
External diameter [mm]: 1000
Jacket height H in mm: 1000
Total height Z in mm: 2170
Thickness bottom/wall/lid: 6/5/10
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM
Support type: legs
Medium/Product: Fluid group 2
Min. design pressure in barg: -1
Max. design pressure in barg: +4,0
Test pressure [barg]: +6,53
Max. design temperature (°C): 150
min. design temperature (°C) -20
max. working temperature (°C) 90
min. working temperature (°C) 5
Material: EN 1.4435,stainless steel
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN1.4404 AISI316L
P3* MINERALWOOL_CHLORIDE FREE_50
External visible surface is RA12
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is ELECTROPOLISHED, final product surface roughness Ra<(><<)>(><(><<)><(><<)>)>0.6. Previous gradual grinding with different grit sizes, final grinding with grit size K220.
Weld on the external (visible) side ground (B120ZZ) to final roughness Ra less than 1.2 μm (K120).
Internal product contact weld RA06
Note surface: dFE material and welds <(><<)> 3 %
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report
Drawings and calculations: Construction drawing
Drawings and calculations: Drawing - Spray ball
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
DECLARATION OF CONFORMITY, MANUALS TÜV report (IV), H1
Nondestructive Testing: Delta Ferrite content test report
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: Riboflavin test report
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Electropolishing report
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
