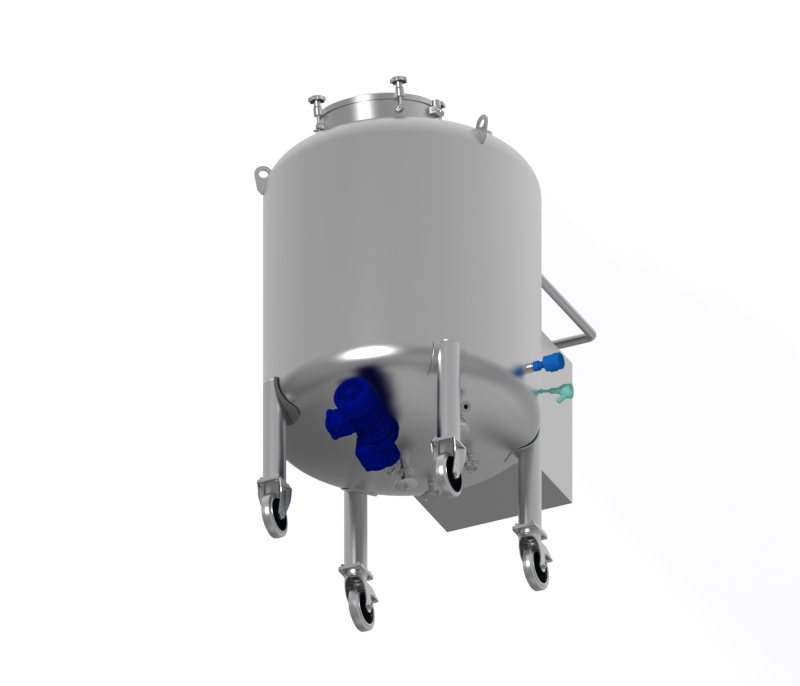

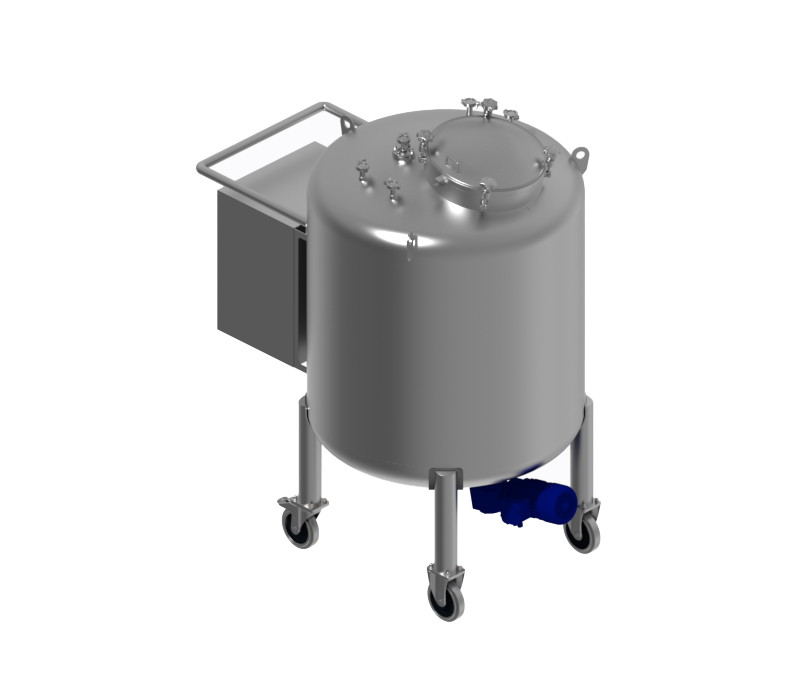

Vertical vessel with temperature control
TFPX 800 D880 H1400 4404
Material: 140000
PED 2014/68/EU EN13445
PED 2014/68/EU Category IV
PED 2014/68/EU Module H1
Nominal volume in L: 800
Geometrical volume [l]: 1006
Internal diameter in mm: 880
External diameter [mm]: 1000
Jacket height H in mm: 1400
Total height Z in mm: 2550
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM
Support type: legs
Medium/Product: Fluid group 2
Min. design pressure in barg: -1
Max. design pressure in barg: +4,5
Test pressure [barg]: +7,13
Max. design temperature (°C): 150
min. design temperature (°C) 0
max. working temperature (°C) 75
min. working temperature (°C) 0
Material: EN 1.4404,stainless steel
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN 1.4301/ASTM304
P3* MINERALWOOL_CHLORIDE FREE_50
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is ELECTROPOLISHED
Internal product contact surface is RA05
Weld on the external (visible) side RA08_99%
Internal product contact weld B320_RA05
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report
Drawings and calculations: Construction drawing
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Welding log + welder certificates
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Instruction manual
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
ADDITIONAL DOCUMENTATION ATEX documentation
