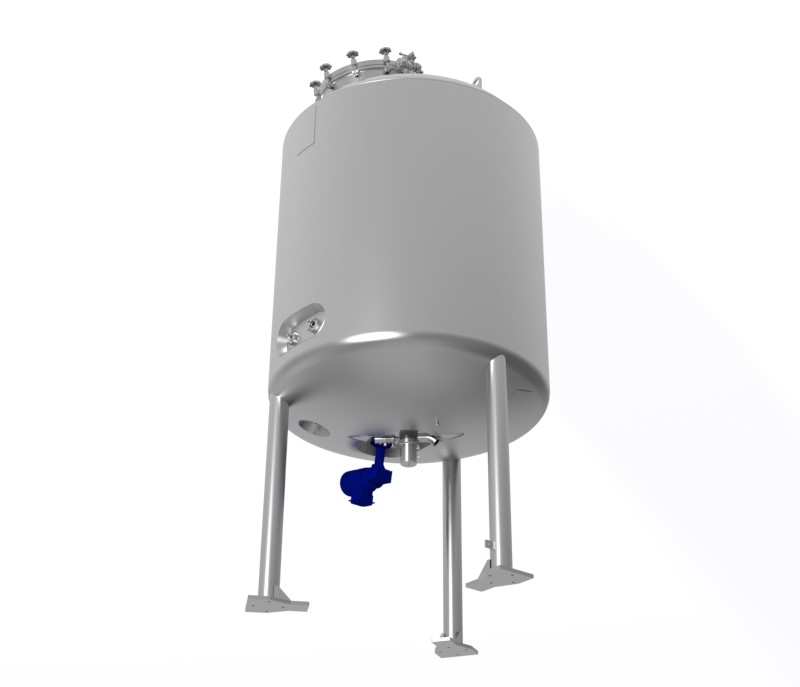

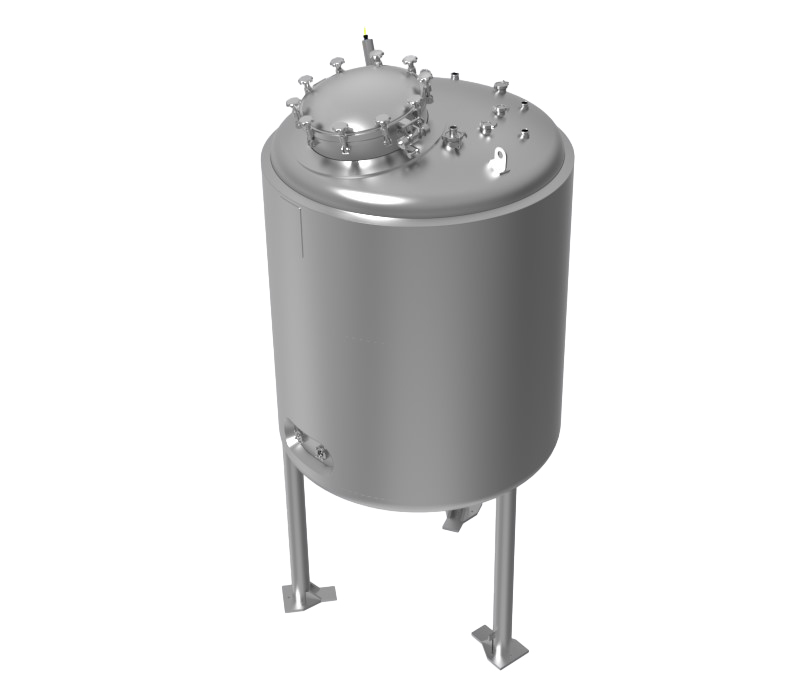

Vertical vessel with temperature control
TFPX 3000 D1524 H1625 4404
Material: 140002
PED 2014/68/EU EN13445
PED 2014/68/EU Category III
PED 2014/68/EU Module H
* DESIGN ASME VIII Div.1 2019
Nominal volume in L: 3000
Geometrical volume [l]: 3669
Internal diameter in mm: 1524
External diameter [mm]: 1650
Jacket height H in mm: 1625
Total height Z in mm: 3560
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM
Support type: legs
Medium/Product: Fluid group 2
Min. design pressure in barg: -1
Max. design pressure in barg: +3,4
Test pressure [barg]: +7,3
Max. design temperature (°C): 150
min. design temperature (°C) -29
max. working temperature (°C) 25
min. working temperature (°C) 10
Material: EN 1.4404,stainless steel
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN 1.4301/ASTM304
P3* MINERALWOOL_CHLORIDE FREE_50
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is ELECTROPOLISHED
Internal product contact surface is RA051
Weld on the external (visible) side RA08_99%
Internal product contact weld B320_RA05
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Pressure calculation report

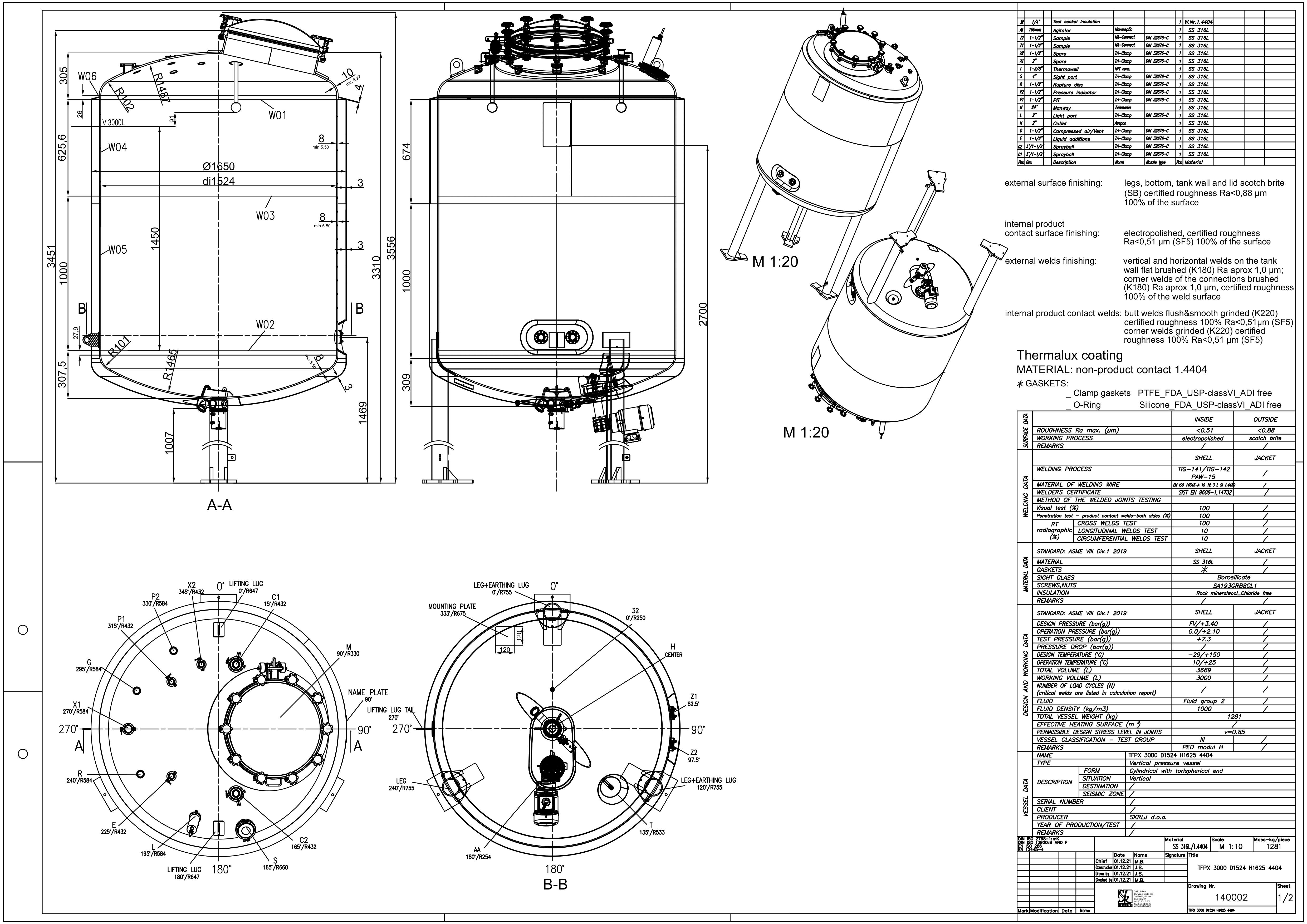

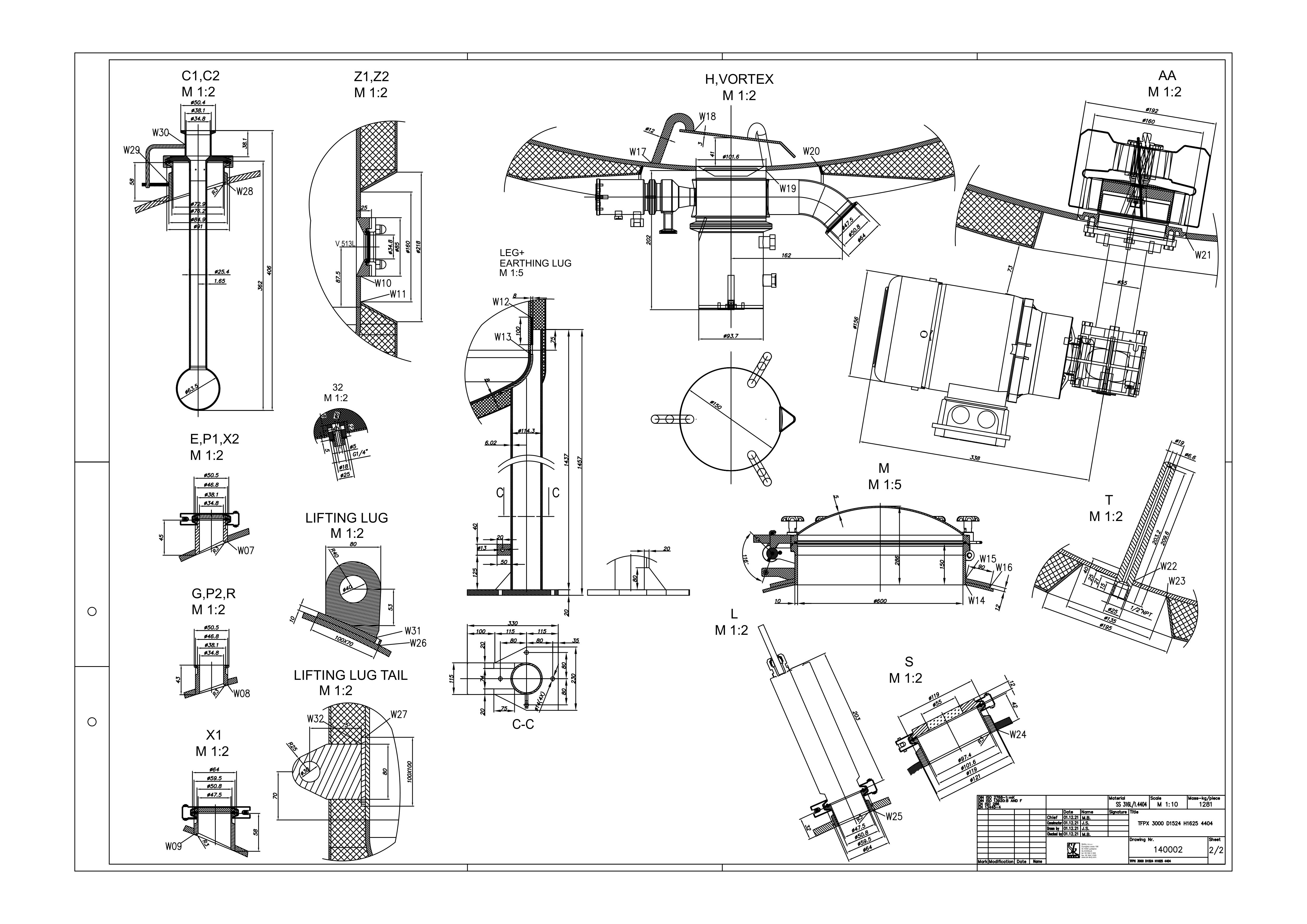

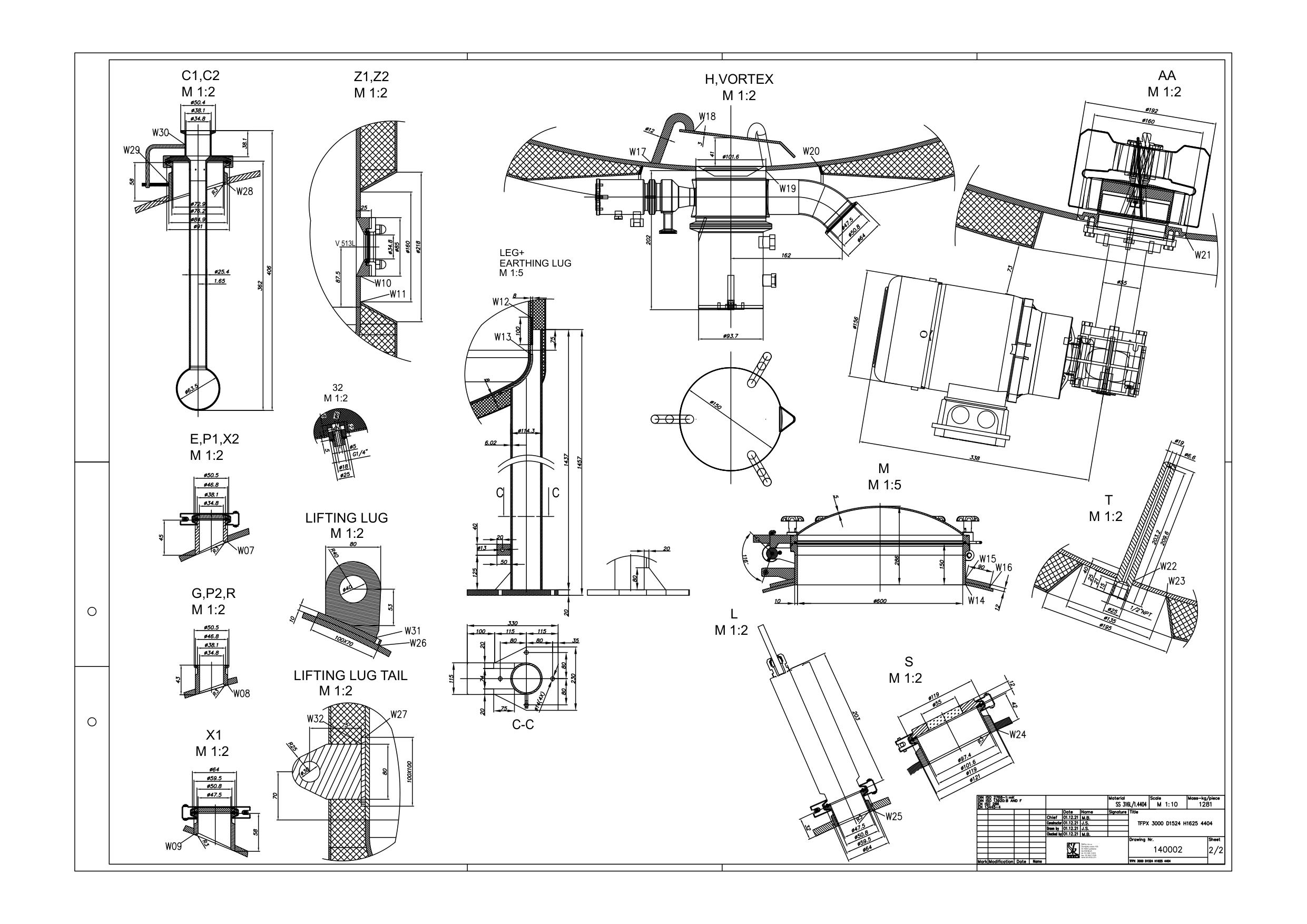

Drawings and calculations: Construction drawing
Drawings and calculations: Drawing - Spray ball
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
DECLARATION OF CONFORMITY, MANUALS TÜV report (IV), H1
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Drainability test
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: Riboflavin test report
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Electropolishing report
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
