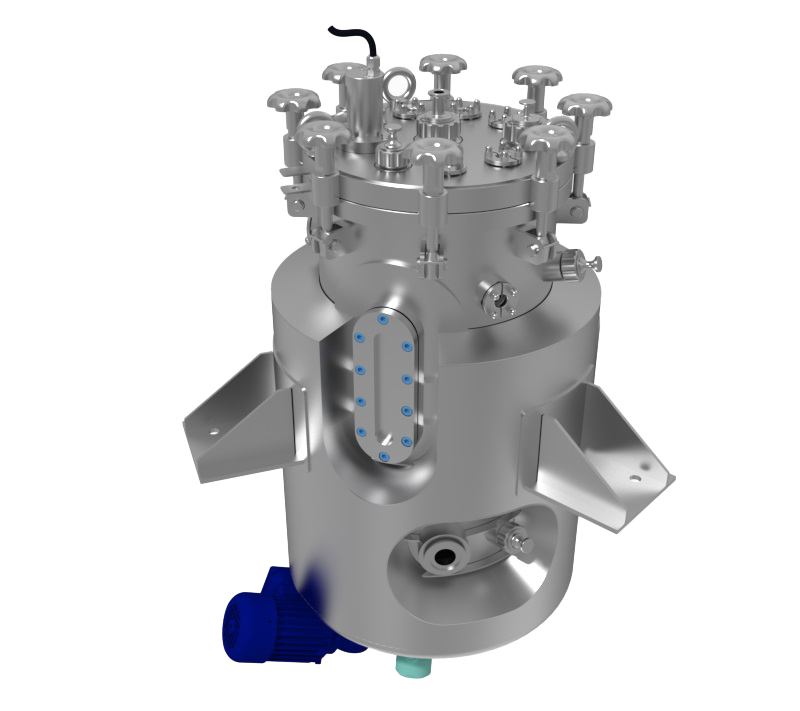

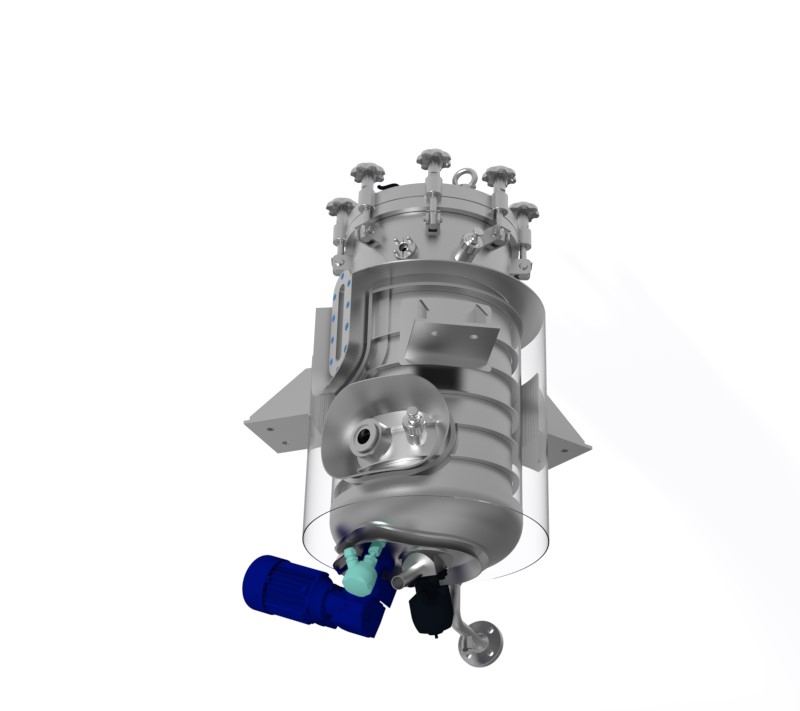

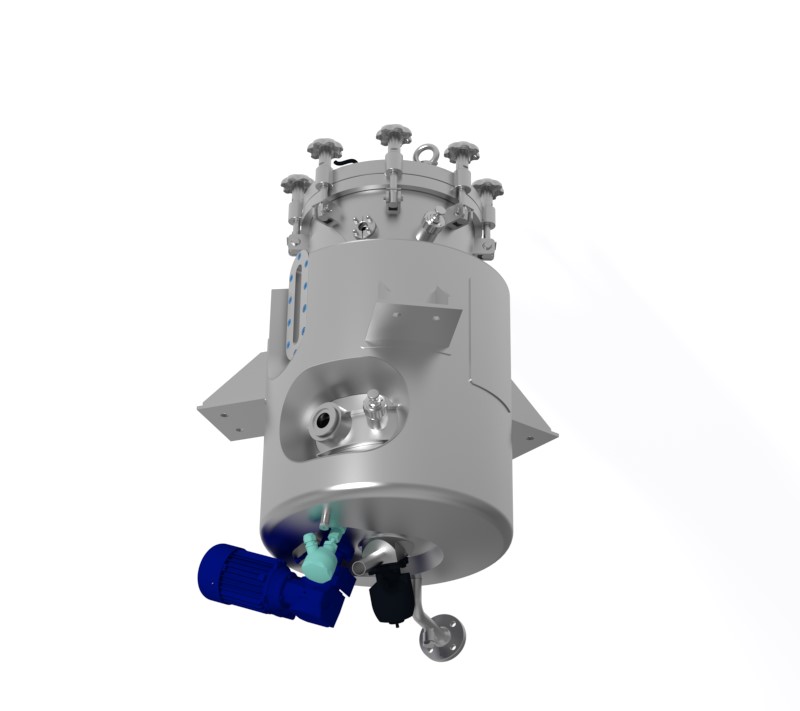

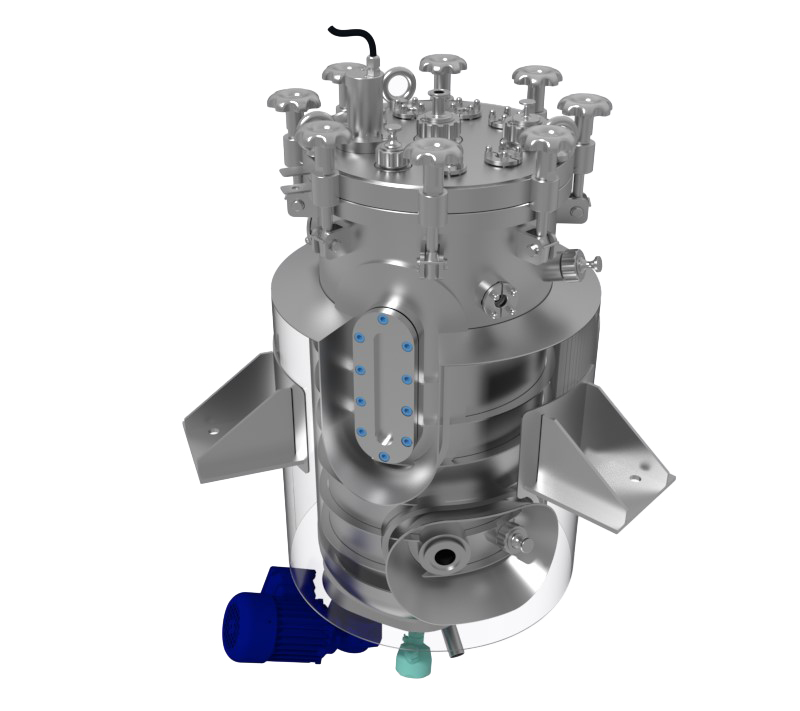

Vertical vessel with temperature control
TFPX 50 D360 H650 4404
Material: 140007
PED 2014/68/EU AD2000
Nominal volume in L: 50
Geometrical volume [l]: 77
Internal diameter in mm: 360
External diameter [mm]: 530
Jacket height H in mm: 650
Bottom BM, dished
Jacket E, cylindrical
Lid: Flange mounting
Installation orientation: vertical
Type: Vertical tank - bottom BM - jacket E - lid BM flanged
Support type: brackets
Medium/Product: Fluid group 2
Min. design pressure in barg: -1
Max. design pressure in barg: +4
Test pressure [barg]: 8,8
Max. design temperature (°C): 140
min. design temperature (°C) 0
max. working temperature (°C) 37
min. working temperature (°C) 2
Material: EN 1.4404,stainless steel
P2 second space: Jacket
P2 position: bottom
P2 position: jacket
P2 Medium: FLUID GROUP 2
P2 Max. design pressure barg: +6
P2 min design pressure [barg]: -1
P2 Max. design temp. (°C): 140
P2 min. design temp.(°C) 0
P2 Test pressure [barg]: 10,56
P2 Material: EN 1.4307/ASTM304L
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: +4
P3 third space: insulation
P3 position: bottom
P3 position: jacket
P3 Material: EN 1.4301/ASTM304
P3* MINERALWOOL_60_CHLORIDE FREE
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is ELECTROPOLISHED, final product surface roughness Ra less than 0.8 μm. Previous gradual grinding with different grit sizes, final grinding with grit size K180.
Weld on the external (visible) side ground (B120ZZ) to final roughness Ra less than 1.2 μm (K120).
Internal product contact weld B180ZN_RA08 100%
Drawings and calculations: As built drawing
Drawings and calculations: FAT report (Factory Acceptance Test)
Drawings and calculations: Identification plate
Drawings and calculations: Seismic calculation report
Drawings and calculations: Pressure calculation report

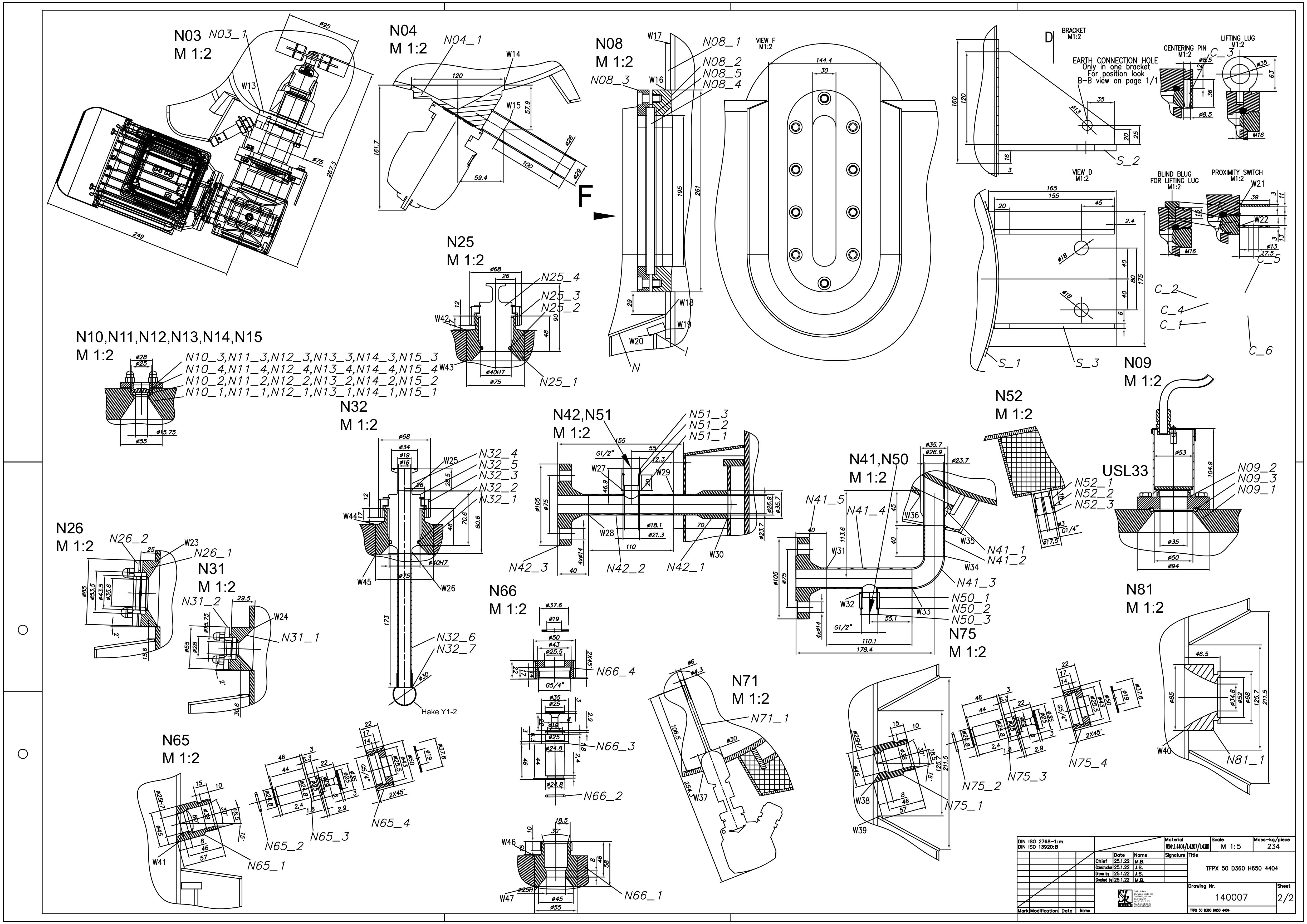

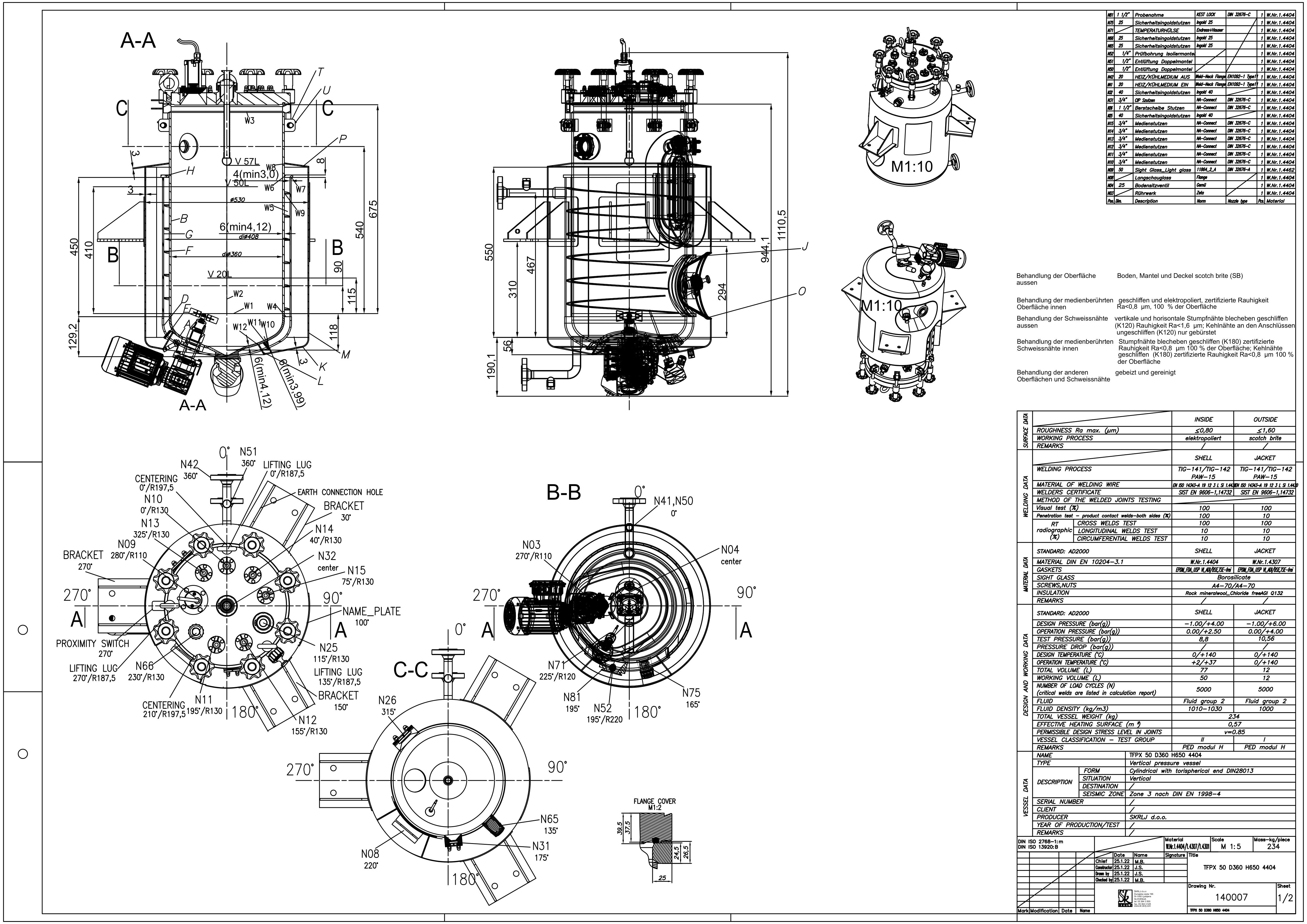

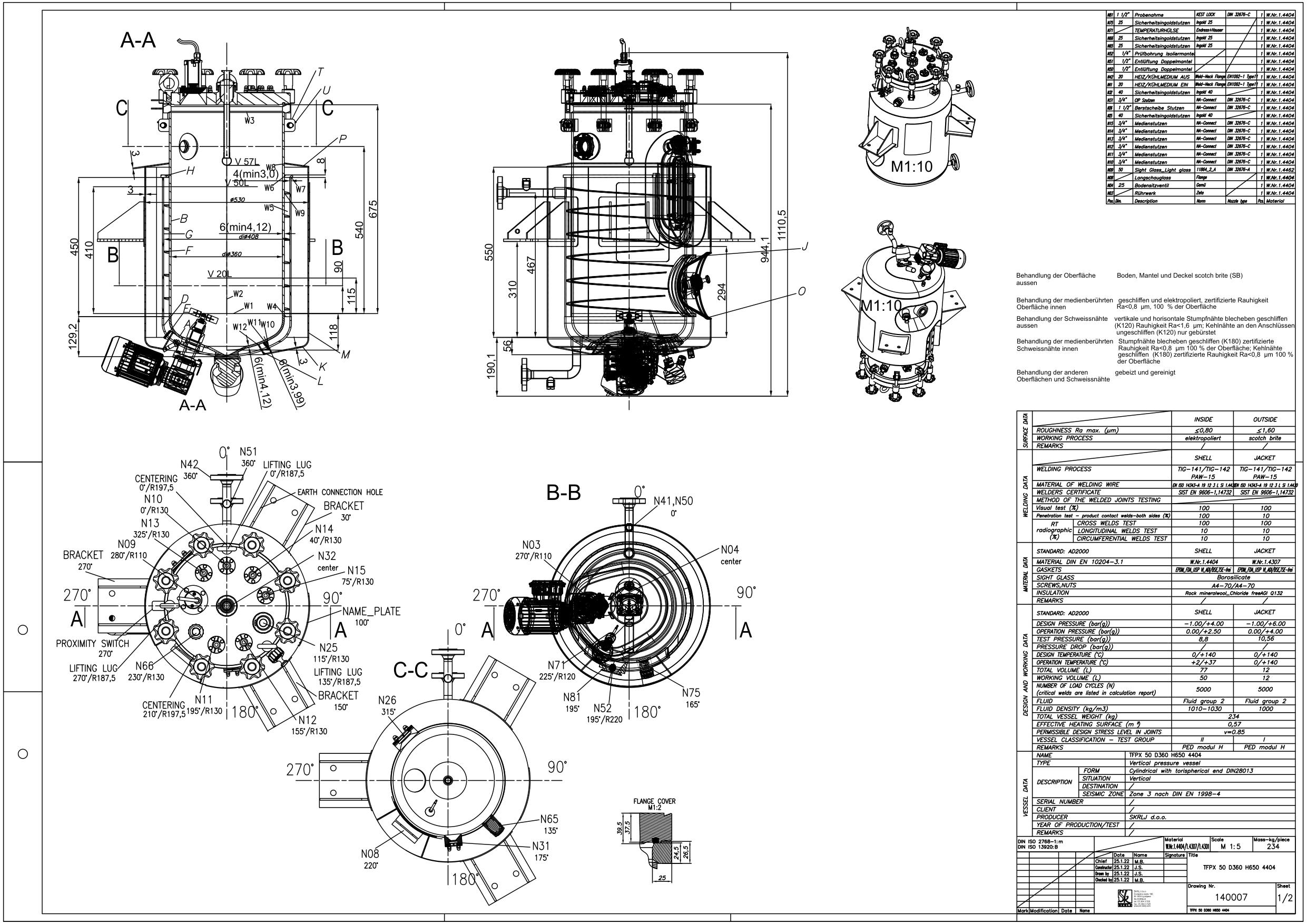

Drawings and calculations: Construction drawing
Drawings and calculations: Drawing (weld log)
Doc. of fabrication: Additional welding documentation of the supplier (welding equipment)
Doc. of fabrication: List of auxiliary materials (wire, gas)
Doc. of fabrication: Signature list
Doc. of fabrication: Welding log + welder certificates
Doc. of fabrication: Welding procedure qualification record (WPQR)
Doc. of fabrication: Welding procedure specification (WPS)
DECLARATION OF CONFORMITY, MANUALS Manufacturer Certificates
DECLARATION OF CONFORMITY, MANUALS Declaration of Conformity PED
DECLARATION OF CONFORMITY, MANUALS Instruction manual
Nondestructive Testing: Surface roughness test report - inside
Nondestructive Testing: Surface roughness test report - outside
Nondestructive Testing: Penetrant testing report (PT)
Nondestructive Testing: Riboflavin test report
Nondestructive Testing: RT_POR
Nondestructive Testing: Pressure test report
Nondestructive Testing: Report of visual control (VT)
Surface treatement: Electropolishing report
Surface treatement: Pickling and passivation report
Surface treatement: Cleaning report
List of materials and cert.: Material certificate
List of materials and cert.: List of materials (entire vessel)
List of spare parts: List of spare parts
