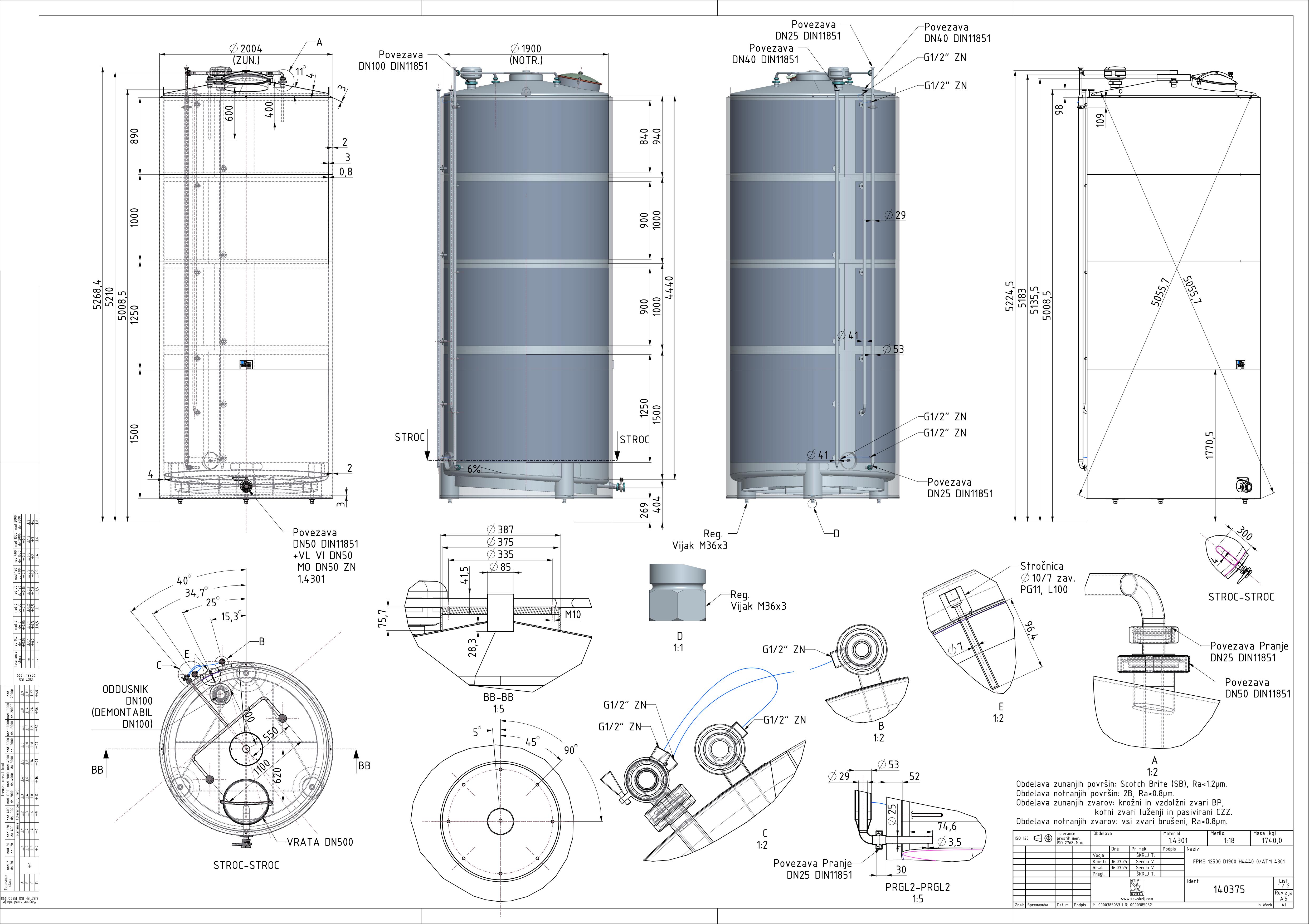

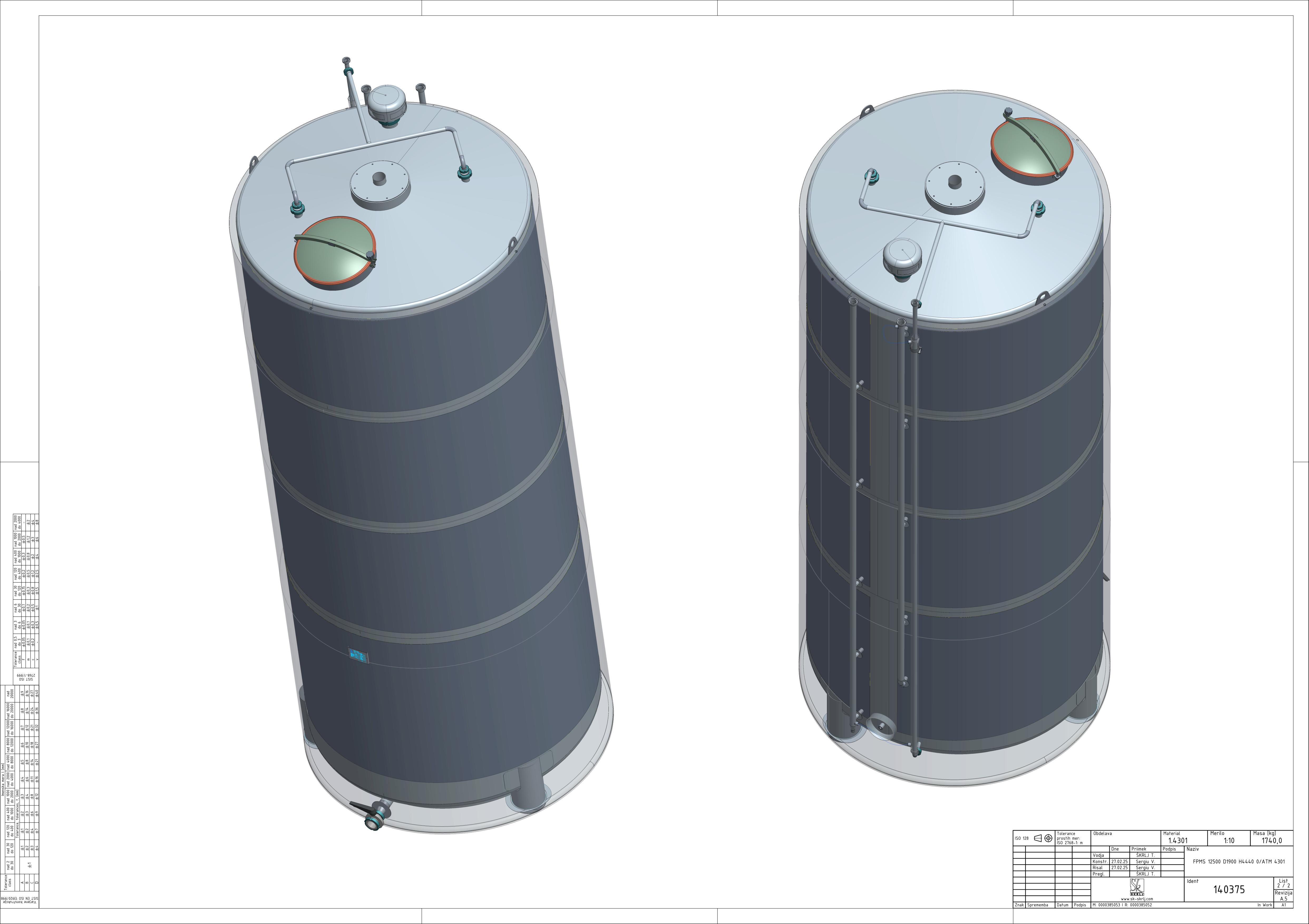

Mixing vessel
FPMS 12500 D1900 H4440 0/ATM 4301
Material: 140375
Product name - customer: SLADOLED
Nominal volume in L: 12500
Internal diameter in mm: 1900
External diameter [mm]: 2100
Jacket height H in mm: 4440
Bottom flat
Jacket E, cylindrical
Lid: KC 11°, centric cone
Thickness bottom/wall/lid: 4/3/4
Installation orientation: vertical
Type: Vertical tank - bottom RA - jacket E - lid KC
Support type: legs
Medium/Product: SLADOLED
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Material: EN 1.4301,stainless steel
P2 second space: pillow plate
P2 position: bottom
P2 position: jacket
P2 Medium: LEDENA VODA
P2 Max. design pressure barg: 2,5
P2 min design pressure [barg]: 0
P2 Material: EN 1.4301/ASTM304
P3 third space: insulation
P3 Material: EN 1.4301/ASTM304
P3* PU 50 MM
External visible surface is brushed with SCOTCH BRITE material. Final roughness isn't defined. Brushing leads to a uniform and aesthetic surface quality.
Internal product contact surface is a smooth 2B (IIIc) surface with low gloss and without further treatment. Stainless steel is protected against scratches with protective film.
Internal product contact surface is RA08
Weld on the external (visible) side is striped (BP), partially visible weld structure.
Internal product contact weld RA08_99%
