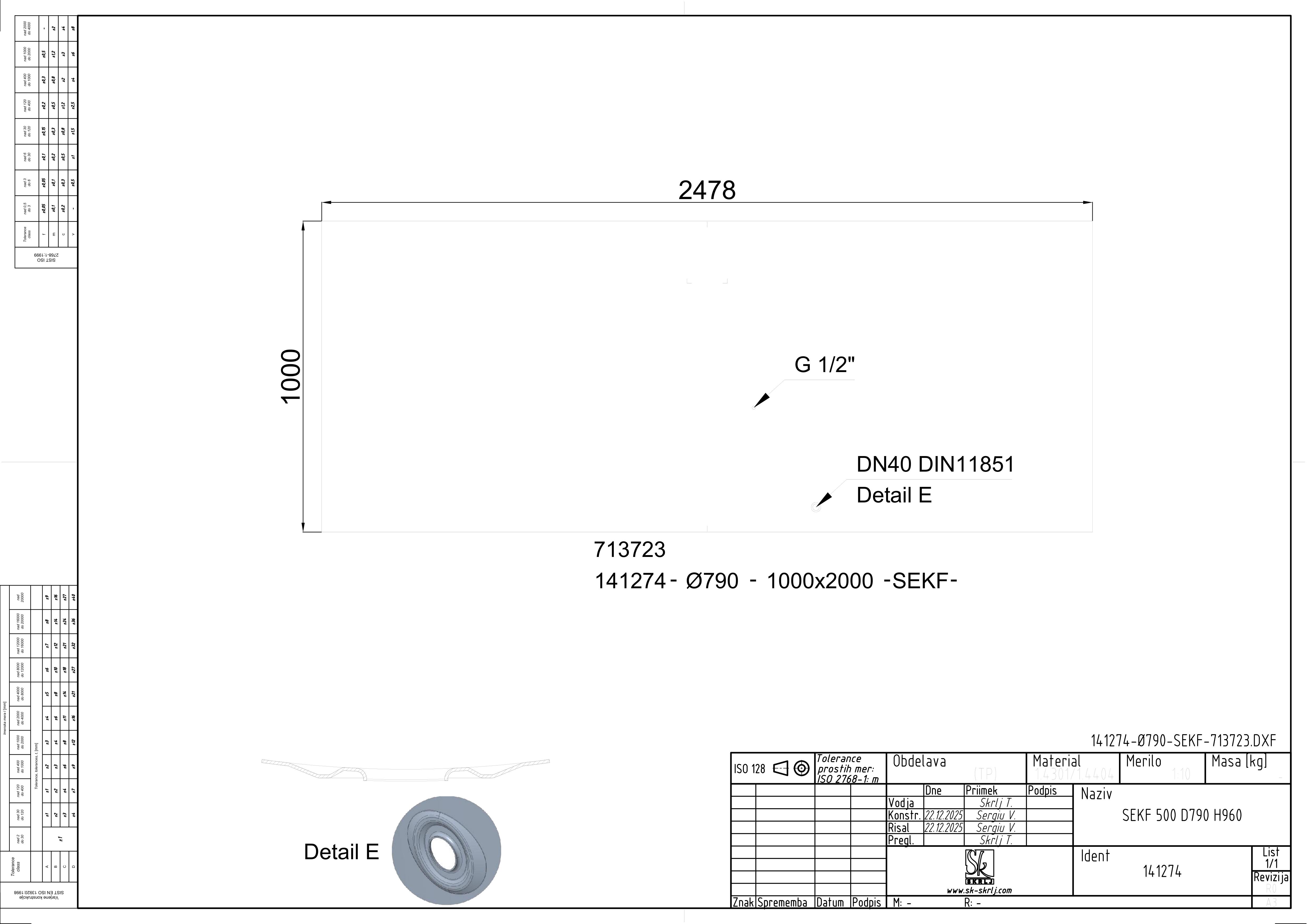

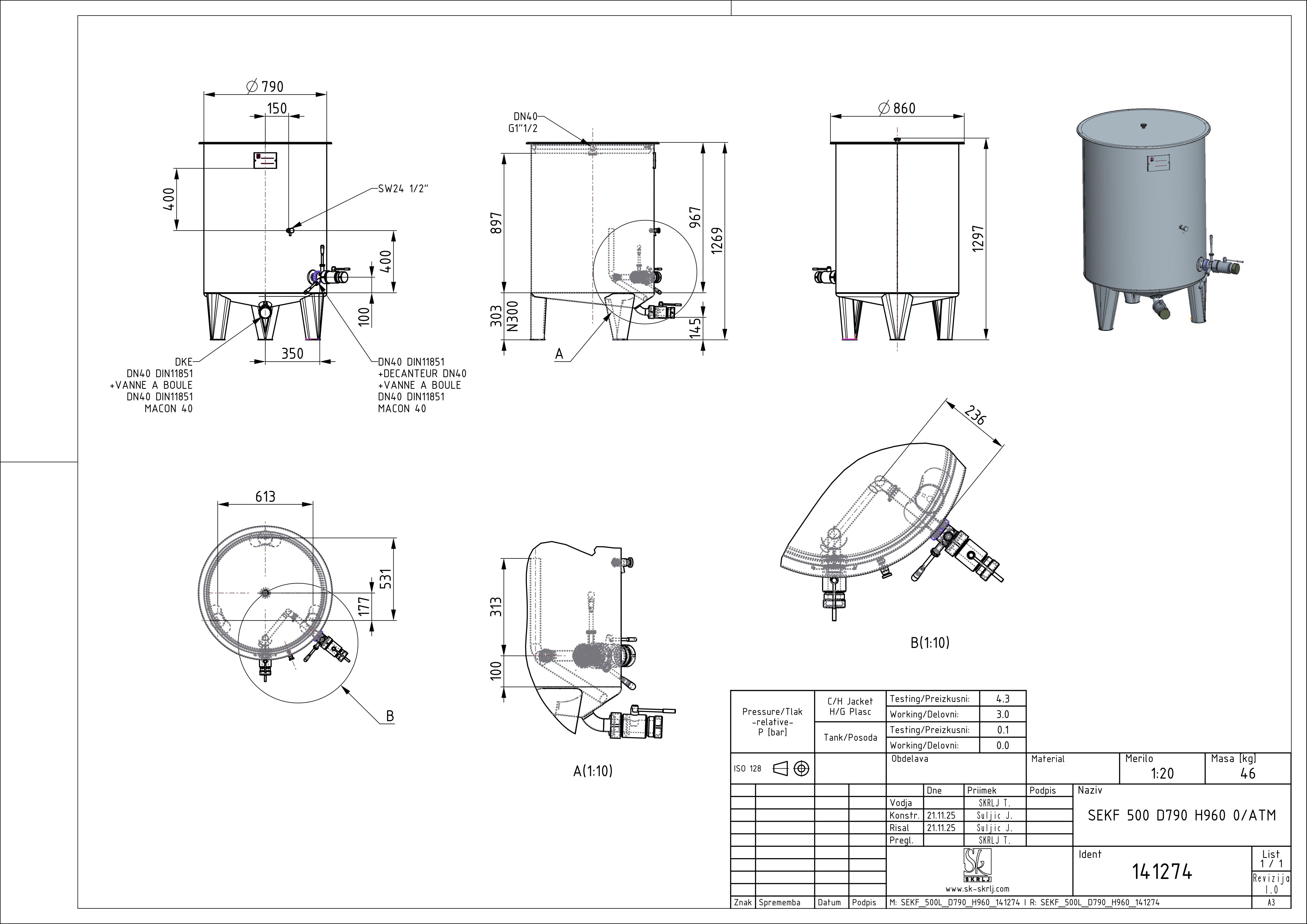

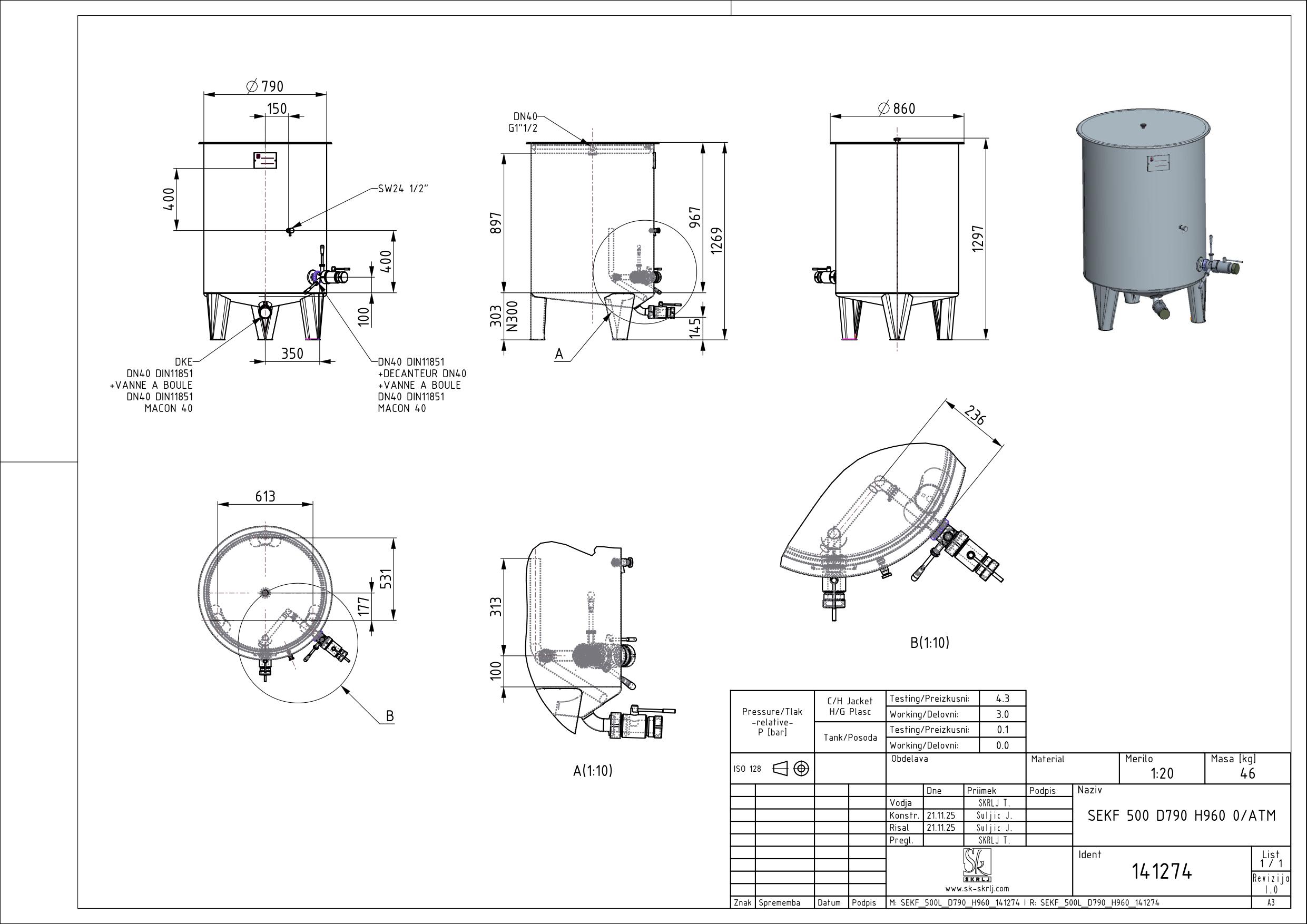

Storage tank with floating lid
SEKF 500 D790 H960 0/ATM
Material: 141274
Nominal volume in L: 500
Geometrical volume [l]: 496
Internal diameter in mm: 790
Jacket height H in mm: 960
Total height Z in mm: 1300
Type: Vertical tank - bottom KE - jacket E - lid VP
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
